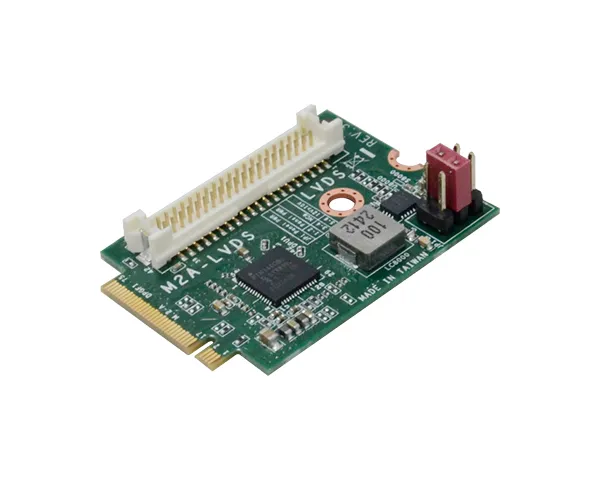

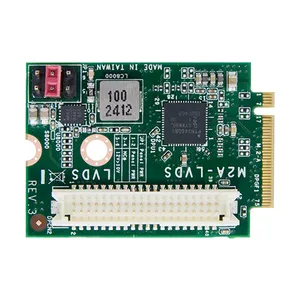

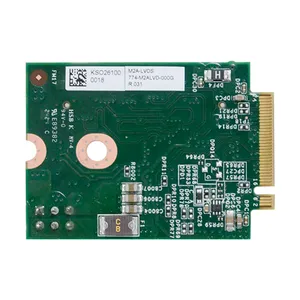

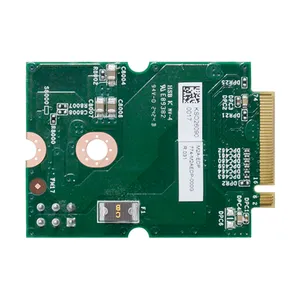

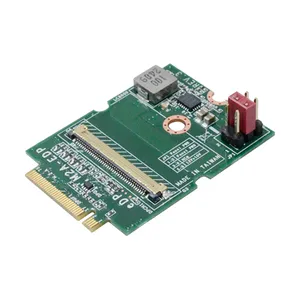

| 产品特性：工业主板 | 品牌：DFI | 型号：M2A-eDP/LVDS |
| 设备类型：工控电脑 |
CHIP: PTN3460
PORT: M.2 A Key
INTERFACE: eDP/LVDS
DIMENSIONS: 30 x 42 mm (Stand off at 30 x 30 mm)
Module Boards
ONLY FOR DFI MiniITX
规格
特性
• CHIP: PTN3460
• FEATURES:
- LVDS: Resolution up to 1920x1200 @ 60Hz
- eDP: Resolution up to 4096x2160 @ 60Hz
• I/O PORTS: 1 eDP/LVDS port
• APPLIED MODEL:
- RPP171/RPP173
- RPS100
- ADN171/ADN173
- ASL171/ASL173
- HPT171/HPT173
- ARH171/ARH173
• TEMPERATURE:
- Operating: -40°C to 85°C
- Storage: -40°C to 85°C
• HUMIDITY: 5% to 90%
• DIMENSIONS: 30 x 42 mm (Stand off at 30 x 30 mm)
