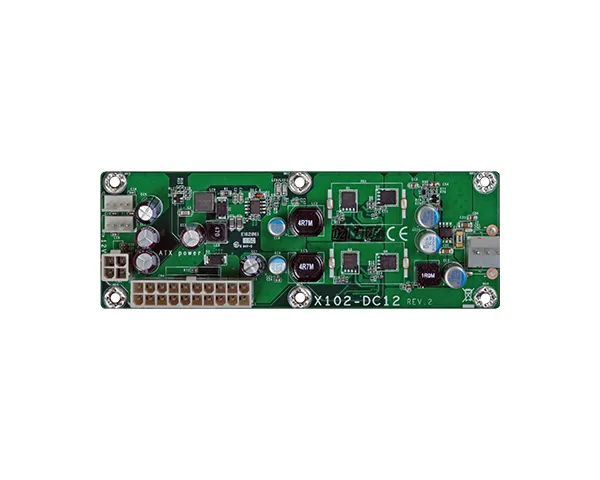

| 产品特性：工业主板 | 品牌：DFI | 型号：X102-DC12 |
| 设备类型：工控电脑 |
输出:1 DC 12V jack, 1 4-pin ATX +12V 电源, 1 20-pin ATX 电源
输入: 11.4V - 12.6V, 输出: 130W
尺寸: 146mm x 50mm
规格
特性
Input Voltage: 11.4V - 12.6V
Maximum Output: 130W
CONNECTORS: One DC 12V jack; One 4-pin ATX +12V power; One 20-pin ATX power
DC INPUT: 2.5mm 12V jack
ENVIRONMENT: Temperature: 0-60oC / 32-140oF; Relative Humidity: 10%-90%
DIMENSIONS: 4 layers, 146mm x 50mm (5.74" x 1.96"); height: 25mm
Output Voltage (power for DC voltages):
Output Voltage/Output Current/Power Output/Test Result
+3.3V ±5% /5A /16.5W /125.9w
+5V ±5% /5A /25W /125.9w
5VSB ±5% /2A /10W /125.9w
+12V ±5% /6A /72W/125.9w
-12V ±10% /0.2A /2.4W/125.9w
