• 8th/9th Gen Intel® Core™ Processor

• 2DDR4 2666MHz SODIMM up to 32G

• 1x 2.5" SATA drive bay, 1x optional slim ODD bay

• 2 LAN, 6 USB

• 15-Year CPU Life Cycle Support Until Q2&＃39; 34 (Based on Intel IOTG Roadmap)

系统

处理器

8th/9th Generation Intel® Core™ Processors, LGA 1151 Socket, TDP up to 35W
Intel® Core i7-9700TE Processor (Core 8; Max speed 3.8 GHz; TDP 35W)
Intel® Core i5-9500TE Processor (Core 6; Max speed 3.6 GHz; TDP 35W)
Intel® Core i3-9100TE Processor (Core 4; Max speed 3.2 GHz; TDP 35W)

8th Generation Intel® Core™ Processors, LGA 1151 Socket, TDP up to 35W
Intel® Core™ i7-8700T Processor (Core 6; Max speed 4.0 GHz; TDP 35W)
Intel® Core™ i5-8500T Processor (Core 6; Max speed 3.5 GHz; TDP 35W)
Intel® Core™ i3-8100T Processor (Core 4; Max speed 3.1 GHz; TDP 35W)
Intel® Celeron G4900T Processor (Core 2; Max speed 2.9 GHz; TDP 35W)

芯片组

Intel® H310/Q370 Chipset

内存

Two 260-pin SODIMM up to 32GB
Dual Channel DDR4 2666MHz

BIOS

AMI SPI 128Mbit

显示

控制器

Intel® UHD Graphics 630 (only Pentium G5400, Celeron G4900 support 610)

特性

OpenGL 4.4, DirectX 12, OpenCL 2.1
HW Decode: AVC/H.264, MPEG2, VC1/WMV9, JPEG/MJPEG, HEVC/H265, VP8, VP9
HW Encode: AVC/H.264, MPEG2, JPEG, HEVC/H265, VP8, VP9

显示器

1 x LVDS/eDP (eDP available upon request)
1 x HDMI
2 x DP++
LVDS: resolution up to 1920x1200 @ 60Hz
eDP: resolution up to 4096x2304 @ 60Hz
HDMI: resolution up to 4096x2160 @ 60Hz
DP1.2: resolution up to 4096x2304 @ 60Hz

三重显示

2DP++ & 1HDMI

储存

外插/内插

1x 2.5" SATA bay, anti-vibration

扩充

界面

1 x Full-Size mini PCIe for mSATA
1 x m.2 2280 mKey (PCIe x 4/SATA) Support NVme and Intel Optane memory
1 x m.2 2230 Ekey (USB/PCIe)

音讯

音讯编译码器

Realtek ALC888S-VD2-GR

以太网路

控制器

1 x Intel® I210AT PCIe (10/100/1000Mbps)
1 x Intel® I219LM PCIe with iAMT11.0 (10/100/1000Mbps)

LED

指示灯

1 x Power LED
1 x HDD LED

前板输入/输出

USB

2 x USB 2.0 (X100-USB2)

音源

1 x Line-out
1 x Mic-in (via cable to external interface from on board pin-header)

按键

1 x Power Button

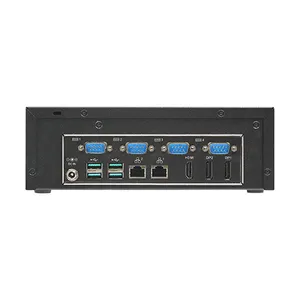

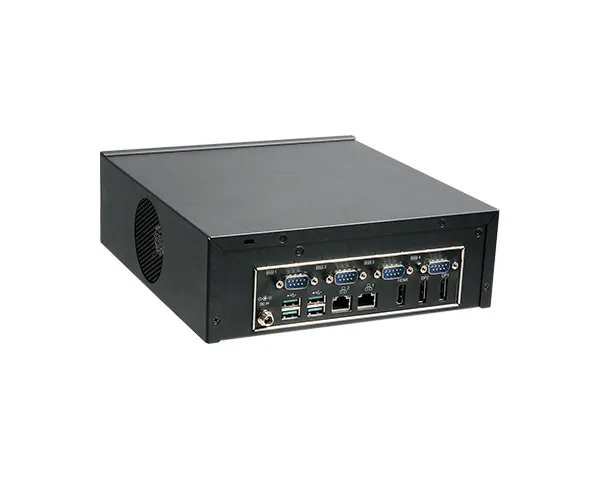

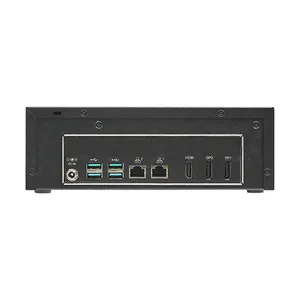

背板输入/输出

以太网络

2 x GbE (RJ-45)

USB

4 x USB 3.1

显示

2 x DP++
1 x HDMI

天线

2 x antenna opening

冷却

风扇

1 x System Fan
1 x CPU Fan

监视定时器

看门狗定时器

System Reset, Programmable via Software from 1 to 255 Seconds

电源

类型

12V

端口

DC Jack

支持操作系统

支持操作系统

Windows 10 IoT Enterprise

环境指标

运作温度

-5 to 55°C
The configuration with i3 CPU throttles may occur

储存温度

-20 to 70°C
The configuration with i3 CPU throttles may occur

相对湿度

Operating: 10 to 85% (non-condensing)
Storage: 10% to 90% (non-condensing)

机械结构

结构

Metal chassis + Aluminum front bezel
Kensington lock

安装方式

Wall mount

尺寸 (宽 x 高 x 深)

219mm x 75.15mm x 229.7mm (without of stand holder)

重量

2.55kg

安规认证

冲击测试

Operating: 3G
Non-operating: 5G

抗振动测试

Operating: Random 5~500Hz 1G
Non-operating: Sweep Sine 10~500Hz 1.5G

包装落摔测试

ISTA Project 1A

认证

CE, FCC class B, RoHS, UKCA
