| 产品特性：工控机 | 品牌：DFI | 型号：MPC350-RPS |
| 设备类型：工控电脑 |

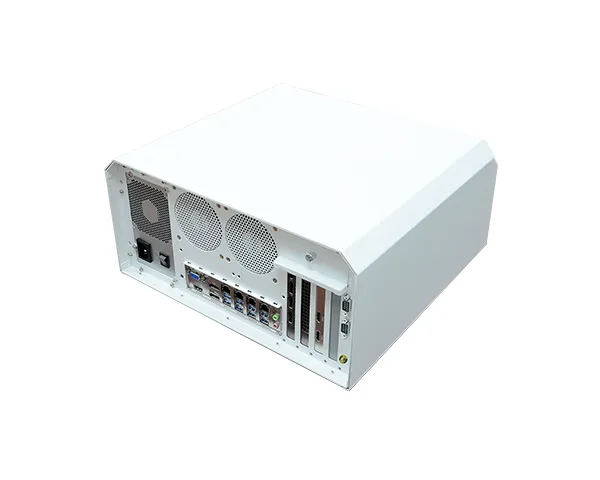

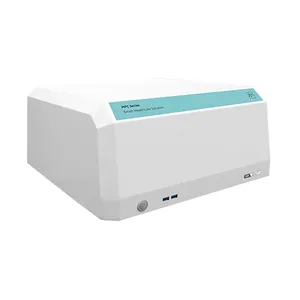

Powerful and Scalable Medical-Grade Edge AI Inference Server
Supports 14th/13th/12th Gen Intel® Core™ with Intel® R680E chipset
Stylish enclosure design for easy cleaning
Support various Nvidia AI GPU Card (up to RTX 6000 ada)
Support capture card (2-ch Full HD H.264 PCIe Video Capture Card with SDK)
Comply IEC60601-1
系统
处理器
14th/13th/12th Gen Intel® Core™ with Intel® R680E chipset LGA 1700 Socket Processors, TDP support up to 65W
Intel® Core™ I9-14900 Processor, 24 Cores, 36M Cache, up to 5.2 GHz, 65W
Intel® Core™ I7-14700 Processor, 16 Cores, 30M Cache, up to 5.1 GHz, 65W
Intel® Core™ I5-14500 Processor, 16 Cores, 30M Cache, up to 5.1 GHz, 65W
内存
Four 288-pin UDIMM up to 192GB (ECC/Non-ECC)
Dual Channel DDR5 up to 4400 MHz
BIOS
AMI SPI 256Mbit
显示
控制器
Intel® UHD Graphics 700 series
特性
OpenGL 4.5, DirectX 12, OpenCL 2.1
HW Decode: AVC/H.264, MPEG2, VC1/WMV9, JPEG/MJPEG, HEVC/H265, VP8, VP9
HW Encode: MPEG2, AVC/H264, JPEG, HEVC/H265, VP8, VP9
显示器
1 x VGA
2 x DP++
1 x HDMI 2.0a
VGA: resolution up to 1920x1200 @ 60Hz
DP++: resolution up to 4096x2304 @ 60Hz
HDMI: resolution up to 4096x2160 @ 24Hz
四重显示
VGA + 2 DP++ + HDMI
储存
外插/内插
2 x swappable 2.5" SATA drive bays
1 x M.2 2242/2260/2280 (PCIe x4 Gen4 NVMe/SATA support)
1 x M.2 2242/2260/2280 (PCIe x4 Gen4 NVMe support)
扩充
界面
2 x PCIe x16 (Gen 4) (1 x16 signals or 2 x8 signals)
2 x PCIe x4 (Gen 4)
1 x M.2 2230 E key (opt. PCIe/USB 2.0/Intel CNVi support) (Discrete Wifi 6E support)
1 x M.2 2242/2260/2280 M key (PCIe x4 Gen4 NVMe/SATA support)
1 x M.2 2242/2260/2280 M key (PCIe x4 Gen4 NVMe support)
GPU Card
界面
1 x PCIe x16 (Gen 4) (up to 300W) (Quadro RTX 6000 Ada)
2 x PCIe x16 (Gen 4) (2 x8 signals) (up to 300W) (Quadro RTX A4000 x 2)
音讯
音讯编译码器
Realtek ALC888
以太网路
控制器
1 x Intel® I226-LM (Core i9/i7/i5 support iAMT)
3 x Intel® I226-V
LED
指示灯
1 x Power LED

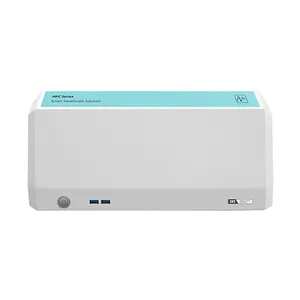

前板输入/输出
USB
2 x USB 3.2 Gen1
按键
1 x Power Button

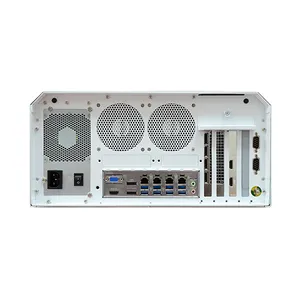

背板输入/输出
以太网络
4 x 2.5GbE (RJ-45)
串口
2 x RS-232 (DB-9)
USB
4 x USB 3.2 Gen 2 (Type A)
4 x USB 3.2 Gen 1 (Type A)
显示
1 x HDMI 2.0a
2 x DP++
1 x VGA
音源
1 x Line-out
1 x Mic-in
Wi-Fi 天线
2 x Wi-Fi Antenna Hole
监视定时器
看门狗定时器
System Reset, Programmable via Software from 1 to 255 Seconds
电源
输入
Internal PSU 90-264 VAC 5-10A 47-63 Hz, maximum output power 700W
支持操作系统
微软
Windows 10 IoT Enterprise
Windows 11
Linux
Linux Ubuntu
环境指标
运作温度
0 to 40°C
储存温度
-20 to 60°C
相对湿度
5 to 90% RH (non-condensing)
机械结构
结构
Metal
安装方式
Wall mount
尺寸 (宽 x 高 x 深)
380 x 180 x 400 mm
重量
9.6 Kg
颜色
White
安规认证
冲击测试
Operating: IEC60068-2-27 Random 3Grms,11ms
抗振动测试
Operating: IEC60068-2-24 Random 1Grms, 5~500Hz
认证
CE, FCC, IEC 60601-1, IEC-60601-1-2 (ongoing), RoHS, UKCA
装箱单
装箱单
· 1 MPC350-RPS system unit
