• AMD® Ryzen™ Embedded 8000 Hawk Point APUs, up to 38 TOPs (CPU/GPU/NPU)

• Quad independent displays: 4 DP++

• Support 1 PCIe x16 slot (x8 signal)

• Reliable Data Security (Secure Boot, Secure Content, TPM 2.0)

• NVRAM up to 16MB and retain data at least 5 Years during AC off

• Rich IO: 2 2.5GbE, 5COM + 2Mcrofit (4 ccTalk), 2 USB 3.1 Gen2, 7 USB 2.0, 1 Audio Tower (Mic-in/Line-in/Line-out)

• Provide the hardware circuit design for the SAS 9-bit interface.

系统

处理器

AMD® Ryzen™ Embedded 8000 Series Processors, TDP up to 54W
AMD® Ryzen™ Embedded 8845HS, 8C/16T, 8MB Cache, 3.8GHz (5.1GHz), 45W (35-54W)
AMD® Ryzen™ Embedded 8645HS, 6C/12T, 6MB Cache, 4.3GHz (5.0GHz), 45W (35-54W)
AMD® Ryzen™ Embedded 8840U, 8C/16T, 8MB Cache, 3.3GHz (5.1GHz), 28W (15-30W)
AMD® Ryzen™ Embedded 8640U, 6C/12T, 6MB Cache, 3.5GHz (4.9GHz), 28W (15-30W)

内存

Dual-channel SODIMM up to 64GB
Dual-channel DDR5 5600/5200/4800MHz, non ECC/with ECC support

BIOS

AMI SPI 256 Mbit

显示

控制器

RDNA3 graphics with up to 6 WGPs (Work Group processors)

特性

OpenGL 4.6, DirectX 12, OpenCL 2.1
HW Decode: AVC/H.264, MPEG2, VC1/WMV9, JPEG/MJPEG, HEVC/H265, VP8, VP9, AV1
HW Encode: MPEG2, AVC/H264, JPEG, HEVC/H265, VP8, VP9, AV1

显示器

4 x DP++
DP1.2: resolution up to 4096x2304 @ 60Hz

四重显示

4 DP++

储存

界面

2 x SATA 3.0
1 x 2.5” SSD Bay

扩充

界面

1 x PCIE Gen4 x16 slot (x8 Gen4)
1 x M.2 M Key 2280 (SATA 3.0/ PCIe Gen3x4)
　SATA3(opt) selected by BIOS

音讯

音讯编译码器

Realtek ALC888S

以太网路

控制器

2 x i226-V (10/100/1000/2500 MHz)

LED

指示灯

1 x Power LED
1 x HDD LED

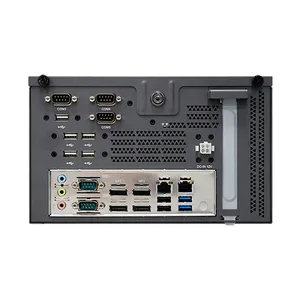

输入/输出

以太网络

2 x 2.5GHz RJ45

串口

1 x DB-9 (RS-232/422/485)
1 x DB-9 (RS-232)
1 x DB-9 (TX/RX, TTL-5V)
2 x DB-9 (TX/RX, CCTalk)
2 x Microfit (TX/RX, 2 ccTalk)
(Provide the hardware circuit design for the SAS 9-bit interface.)

USB

2 x USB 3.2 Gen2
7 x USB 2.0

屏幕

4 x DP++

音源

1 Audio Jack ( Line-in/Line-out/Mic-in)
Stereo 6W+6W Class D Audio AMP Output
S/PDIF Out

冷却

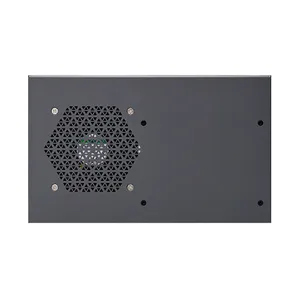

1 x 8cm System Fan, with replaceable air filter

监视定时器

看门狗定时器

System Reset, Programmable via Software from 1 to 255 Seconds

安全性

信赖平台模块

TPM 2.0

游戏

入侵检测

8 x Intrusion detection
Operates With and Without AC Power
Logs Date/ Time of latest 64 events
Coin Battery backup to Retain Data for 5 years during AC off

非挥发性内存

Supports up to 16Mbyte
Coin Battery backup to Retain Data for 5 years during AC off
Support Battery voltage monitoring & Warning

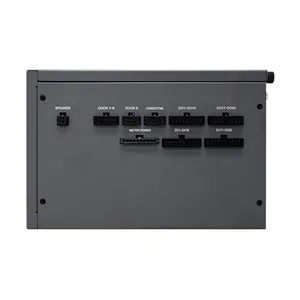

数字输入/输出

32-bit Digital Input
32-bit OC output (29-bit x 500mA, disconnect detection up to 8 meters; 3-bit x 3A)

iButton

Support iButton 1-wire protocol (option)

电源

类型

12V~24V DC IN

端口

DC-in Jack or Right Angle Connector (4-pin)

支持操作系统

微软

Windows 10 IoT Enterprise LTSC(64-bit)
Windows 11 22H2 GAC

Linux

Linux Ubuntu 22.04

软件

Supplied with gaming function SDK

环境指标

运作温度

0~45°C

储存温度

-20~85°C

相对湿度

5%~90%

机械结构

安装方式

Wall Mount

尺寸 (宽 x 高 x 深)

230 x 140 x 210 mm

重量

2.9 kg

安规认证

冲击测试

· Operation:
　IEC 60068-2-27 Test Ea: Shock test
　Half-sine, 3G @ 11ms, 18 Shock ±X, ±Y, ±Z (each axis 3 times)
· Non-Operation:
　IEC 60068-2-27 Test Ea: Shock test
　Half-sine, 5G @ 11ms, 18 Shock ±X, ±Y, ±Z (each axis 3 times)

抗振动测试

· Operation:
　IEC 60068-2-64 Test Fh: Vibration Board-Band Random Test
　Random,1Grms @ 5~500 Hz, 30min.
· Non-Operation:
　IEC 60068-2-6 Test Fc: Vibration Sinusoidal Test
　Sweep sine, 2Grms @ 10~500Hz, 30min.

认证

CE, FCC class A, RoHS, UKCA
