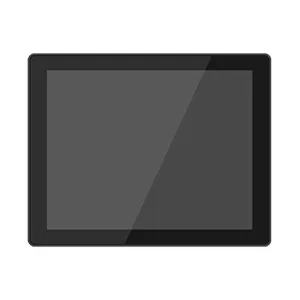

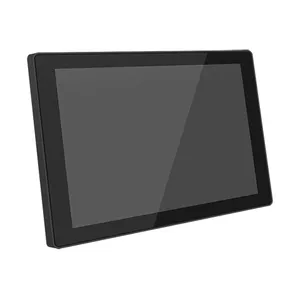

| 产品特性：显示器 | 品牌：DFI | 型号：IDP-ME Series |
| 设备类型：工控电脑 |
Touch Type: Projected Capacitive Support 10 points Multi-Touch
IP Rating: IP65 Front Panel
Support 2 Signal Interfaces: VGA/HDMI
Operating Temperature: 0°C ~ 50°C
显示和触控屏幕
屏幕
IDP150-ME
15" TFT LCD
IDP170-ME
17" TFT LCD
IDP190-ME
19" TFT LCD
亮度
IDP150-ME
300 nits (without Touch screen)
IDP170-ME
250 nits (without Touch screen)
IDP190-ME
250 nits (without Touch screen)
对比度
IDP150-ME
2500:1
IDP170-ME
1000:1
IDP190-ME
1000:1
视角
IDP150-ME
176(H) / 176(V)
IDP170-ME
170(H) / 160(V)
IDP190-ME
170(H) / 160(V)
背光寿命
IDP150-ME
50,000 Hrs
IDP170-ME
30,000 Hrs
IDP190-ME
30,000 hrs (Min.)
分辨率
IDP150-ME
1024 x 768
IDP170-ME
1280 x 1024
IDP190-ME
1280 x 1024
触控式
Projected Capacitive Support 10 points Multi-Touch
色彩深度
Color Depth: 8 bits
Display Colors: 16.7M
音讯
Speaker
2 x 2W Speakers (option)

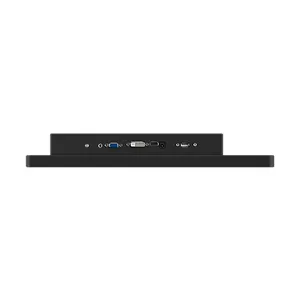

输入/输出
USB
USB Type A
屏幕
VGA: 1 x VGA
DVI: 1 x DVI (option)
HDMI: 1 x HDMI 1.2
音源
Audio: 1 x Audio
Input ports
Power Input: 1 x DC Jack
电源
类型
AC Input
12V DC-IN
耗能
Typical: 30W, normal operation
环境指标
湿度
20% to 80% non-condensing
运作温度
0°C ~ 50°C
储存温度
-10°C ~ 60°C
机械结构
结构
Aluminum front Frame
Metal back-cover
安装方式
VESA mount
75 x 75mm & 100 x100mm
尺寸 (宽 x 高 x 深)
IDP150-ME
358.7 x 281.7 x 55 mm
IDP170-ME
399.6 x 331 x 57 mm
IDP190-ME
442 x 366.7 x 59 mm
重量
IDP150-ME
5 kg
IDP170-ME
6 kg
IDP190-ME
6.5 kg
颜色
Black
安规认证
认证
CE / FCC Class A
IP Rating
IP65 Front Panel
装箱单
装箱单
1 VGA cable
1 USB cable
1 Power Adapter
1 Power code
其他

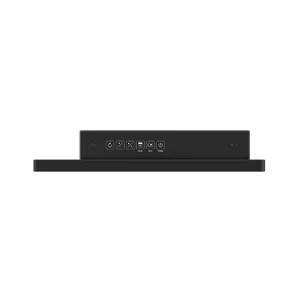

OSD键盘
5 x Control buttons on the rear side
Power Auto Up Down Menu
