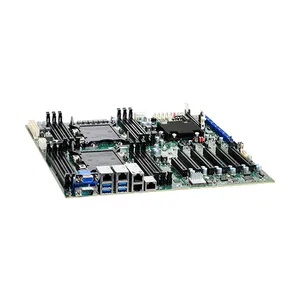

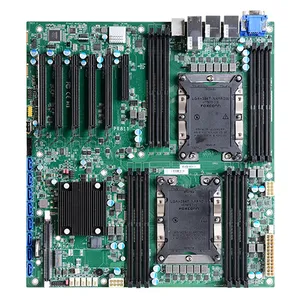

| 产品特性：工业主板 | 品牌：DFI | 型号：PR811-C622 |
| 设备类型：工控电脑 |
Intel® 1st/2nd Xeon® Scalable Family
12 DDR4 ECC-RDIMM up to 768GB
2 x 10GbE
Single Display: VGA resolution up to 1920x1200 @ 60Hz
Multiple expansion: 5 PCIe x16, 1 PCIe x8, 1 M.2 M key, 1 BMC Module slot for SEM2500/2510
Rich I/O: 2 Intel 10GbE, 2 Intel GbE, 2 COM, 8 SATA 3.0, 6 USB 3.2 Gen1, 5 USB 2.0
系统
处理器
1st Generation Intel® Xeon® Scalable Processor Family, LGA 3647 Socket, TDP upto 165W:
Intel® Xeon® Platinum 8160T (24 Cores, 27.5M Cache, up to 3.7 GHz); 150W
Intel® Xeon® Gold 6138T (20 Cores, 27.5M Cache, up to 3.7 GHz); 125W
Intel® Xeon® Gold 6138 (20 Cores, 27.5M Cache, up to 3.7 GHz); 125W
Intel® Xeon® Gold 6130T (16 Cores, 22M Cache, up to 3.7 GHz); 125W
Intel® Xeon® Gold 6130 (16 Cores, 22M Cache, up to 3.7 GHz); 125W
Intel® Xeon® Gold 6126T (12 Cores, 19.25M Cache, up to 3.7 GHz); 125W
Intel® Xeon® Gold 6126 (12 Cores, 19.25M Cache, up to 3.7 GHz); 125W
Intel® Xeon® Gold 5120T (14 Cores, 19.25M Cache, up to 3.2 GHz); 105W
Intel® Xeon® Gold 5119T (14 Cores, 19.25M Cache, up to 3.2 GHz); 85W
Intel® Xeon® Gold 5118 (12 Cores, 16.5M Cache, up to 3.2 GHz); 105W
Intel® Xeon® Silver 4116T (12 Cores, 16.5M Cache, up to 3.0 GHz); 85W
Intel® Xeon® Silver 4116 (12 Cores, 16.5M Cache, up to 3.0 GHz); 85W
Intel® Xeon® Silver 4114T (10 Cores, 13.75M Cache, up to 3.0 GHz); 85W
Intel® Xeon® Silver 4110 (8 Cores, 11M Cache, up to 3.0 GHz); 85W
Intel® Xeon® Silver 4109T (8 Cores, 11M Cache, up to 3.0 GHz); 70W
Intel® Xeon® Bronze 3106 (8 Cores, 11M Cache, 1.7 GHz); 85W
2nd Generation Intel® Xeon® Scalable Processor Family, LGA 3647 Socket, TDP upto 165W:
Intel® Xeon® Gold 6252N (24 Cores, 35.75M Cache, up to 3.6 GHz); 150W
Intel® Xeon® Gold 6238T (22 Cores, 30.25M Cache, up to 3.7 GHz); 125W
Intel® Xeon® Gold 6230T (20 Cores, 27.5M Cache, up to 3.9 GHz); 125W
Intel® Xeon® Gold 6230N (20 Cores, 27.5M Cache, up to 3.5 GHz); 125W
Intel® Xeon® Gold 6230 (20 Cores, 27.5M Cache, up to 3.9 GHz); 125W
Intel® Xeon® Gold 6226 (12 Cores, 19.25M Cache, up to 3.7 GHz); 125W
Intel® Xeon® Gold 5220T (18 Cores, 24.75M Cache, up to 3.9 GHz); 105W
Intel® Xeon® Gold 5218T (16 Cores, 22M Cache, up to 3.8 GHz); 105W
Intel® Xeon® Gold 5218N (16 Cores, 22M Cache, up to 3.7 GHz); 110W
Intel® Xeon® Gold 5215 (10 Cores, 13.75M Cache, up to 3.4 GHz); 85W
Intel® Xeon® Silver 4216 (16 Cores, 22M Cache, up to 3.2 GHz); 100W
Intel® Xeon® Silver 4215 (8 Cores, 11M Cache, up to 3.5 GHz); 85W
Intel® Xeon® Silver 4214 (12 Cores, 16.5M Cache, up to 3.2 GHz); 85W
Intel® Xeon® Silver 4210 (10 Cores, 13.75M Cache, up to 3.2 GHz); 85W
Intel® Xeon® Silver 4209 (8 Cores, 11M Cache, up to 3.2 GHz); 70W
芯片组
Intel® C622 Chipset
内存
12 x 288-pin ECC-RDIMM up to 768GB
Single Channel DDR4 2133/2400/2666/2933 MHZ
BIOS
Insyde
显示
显示器
1 x VGA (opt.)
VGA: resolution up to 1920x1200 @ 60Hz
单显示
VGA (opt.)
扩充
界面
5 x PCIe x16 (Gen 3)
1 x PCIe x8 (Gen 3)
1 x M.2 2280 M key (PCIe Gen3 x4 NVMe/SATA)
1 x BMC Module slot for SEM2500/2510
*Note: PCIe x8 slot is OPEN edge.
音讯
音讯编译码器
ALC887
以太网路
控制器
2 x Intel® I210AT (10/100/1000Mbps)
1 x Intel® x557-AT2 (10GbE)
背板输入/输出
以太网络
2 x GbE (RJ-45)
2 x 10 GbE x557-AT2
IPMI 2.0
串口
1x RS-232 (DB-9)
USB
4 x USB 3.2 Gen1
2 x USB 2.0 stack (opt.w/ RJ45 + USB2.0 stack)
显示
1 x VGA (opt.)
内部输入/输出
串行端口
1 x RS-232
USB
2 x USB 3.2 Gen1
2 x USB 2.0
1 x USB 2.0 Vertical Type A
SATA
8 x SATA 3 (up to 6Gb/s)
RAID 0/1/5/10
SMBus
1 x SMBus
监视定时器
看门狗定时器
System Reset, Programmable via Software from 1 to 255 Seconds
安全性
信赖平台模块
TPM 2.0
电源
类型
ATX
端口
8-pin ATX 12V power
24-pin ATX power
耗能
TBD
RTC 电池
CR2032 Coin Cell
支持操作系统
支持操作系统
Windows 10 IoT Enterprise LTSB RS5(64-bit)
Windows Server 2019
Windows Server 2016
Linux
环境指标
温度
Operating: 0 to 40°C
Storage: -40 to 85°C
湿度
Operating: 5 to 90% RH
Storage: 5 to 90% RH
MTBF
TBD
机械结构
尺寸
EATX Form Factor
305mm (12") x 330mm (13")
高度
PCB: TBD
Top Side: TBD mm
Bottom Side: TBD
安规认证
认证
CE, FCC, RoHS, UKCA
