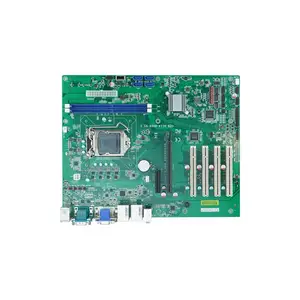

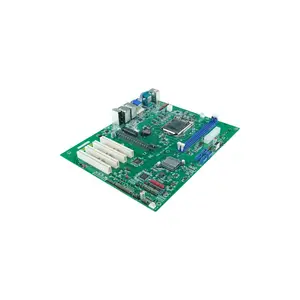

| 产品特性：工业主板 | 品牌：ENNOCONN | 型号：CEB-H11A-A100 |
| 设备类型：工控电脑 |
Intel®6/7代酷睿 i7/i5/i3/奔腾®/赛扬®处理器, 功耗支援到95W
双通道 DDR4 1866/2133 MHz, 32GB
支持VGA 和 DVI-D 独立双显
支持双Intel GbEs, SATA3.0, USB3.0, 16位GPIO
支持2个RS232/422/485、2个RS232/485和2个RS232串联端口
海岸线USB端口支援USB SR Pro技术
1个PCIe3.0 X16 和1个PCIe X4, 和4个PCI 扩展口
| 处理器 Processor | Intel®6th/7th Core ™ i7/i5/i3/Pentium®/Celeron® Processor, LGA1151 Socket, TDP up to 95W |
| 芯片组 Chipset | Intel® H110 |
| 内存 Memory | Dual Channel, 2 x U-DIMM Slot, DDR4 1866/2133MHz, up to 32GB |
| 存储 Storage | 4 x SATA3.0 |
| 显示 Display | Intel® HD Graphics |
| 网口 Ethernet | 1 x Intel® I210AT/I211AT, 1 x Intel® I219LM/I219V GbE (10/100/1000 Mbps) |
| 音频 Audio | Realtek® ALC888S(colay with 897) HD Audio codec, supports 5.1-channel |
| BIOS | AMI UEFI BIOS |

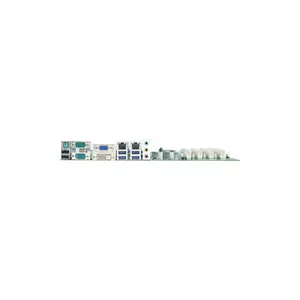

| 外部接口 Rear I/O | 1 x DVI-D: max resolution up to 1920 x 1200@60Hz 1 x VGA: max resolution up to 1920 x 1200@60Hz 2 x USB2.0, 4 x USB3.0 2 x RJ45 2 x RS232/422/485 (with auto flow control) 1 x PS2 (Mini-DIN-6) |
| 内部接口 Internal I/O | 2 x RS232/485 2 x RS232 4 x USB2.0 (Type-A share USB signal with one USB2.0) 1 x 16 bit GPIO 4 x SATA3.0 |
| 扩展接口 Expansion | 1 x PCIe3.0 X16(X16 link) 1 x PCIe X4(X4 link) 4 x PCI |
| 信赖平台模块 TPM | Nuvoton TPM1.2/2.0 (optional, need MOQ) |
| 环境 Environment | 操作温度 Operation Temp.: 0℃ ~ 60℃ 存储温度 Storage Temp.: -40℃ ~ 85℃ 操作湿度 Operation Humidity: 5% ~ 95%, 非凝结状态 Non-condensing 存储湿度 Storage Humidity: 5% ~ 95%, 非凝结状态 Non-condensing |
| 电源输入 Power Input | ATX |
| 尺寸 Dimensions | 304.8 x 244 mm (12" x 9.6") |
| 操作系统 OS | 6th Gen CPU : Windows7/8.1/10, Linux 7th Gen CPU : Windows10, Linux |
| 看门狗 Watchdog Timer | System Reset, Programmable via software from 1 to 255 seconds |
