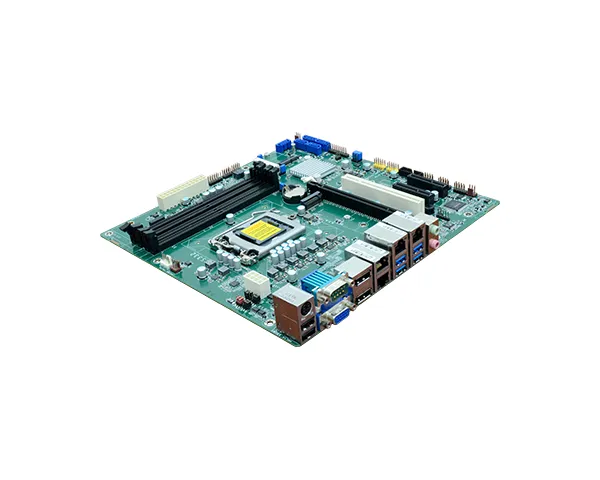

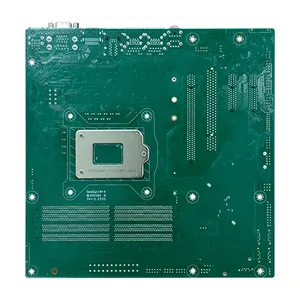

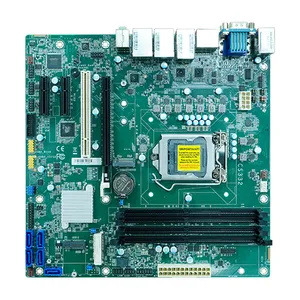

• 9th/8th Gen Intel® Core™ with Intel® C246

• 4 DDR4 DIMM up to 128GB

• Dual display ports: VGA + DP++ + DP++ Supports triple independent displays

• Rich I/O: Up to 4 GbE (2 default), 4 COM, 6 USB 3.2 Gen1, 6 USB 2.0

• Multiple expansion: 1 PCIe x16, 2 PCIe x4, 1 PCI, 1 Mini PCIe, 1 M.2 M key (support Optane Memory), 1 M.2 E key

• 10-Year CPU Life Cycle Support Until Q2&＃39; 28 (Based on Intel IOTG Roadmap)

系统

处理器

8th Generation Intel® Core™ /Pentium®/Celeron® LGA 1151 Socket Processors, TDP support up to 95W:
Intel® Core™ i7-8700 (6 Cores, 12M Cache, up to 4.6 GHz); 65W
Intel® Core™ i7-8700T (6 Cores, 12M Cache, up to 4.0 GHz); 35W
Intel® Core™ i5-8500 (6 Cores, 9M Cache, up to 4.1 GHz); 65W
Intel® Core™ i5-8500T (6 Cores, 9M Cache, up to 3.5 GHz); 35W
Intel® Core™ i3-8100 (4 Cores, 6M Cache, 3.6 GHz); 65W
Intel® Core™ i3-8100T (4 Cores, 6M Cache, to 3.1 GHz); 35W
Intel® Pentium® G5400 (2 Cores, 4M Cache, 3.7 GHz); 58W
Intel® Pentium® G5400T (2 Cores, 4M Cache, 3.1 GHz); 35W
Intel® Celeron® G4900 (2 Cores, 2M Cache, 3.1 GHz); 54W
Intel® Celeron® G4900T (2 Cores, 2M Cache, 2.9 GHz); 35W

9th Generation Intel® Core™ LGA 1151 Socket Processors, TDP support up to 95W:
Intel® Core™ i7-9700E (8 Cores, 12M Cache, up to 4.4 GHz); 65W
Intel® Core™ i7-9700TE (8 Cores, 12M Cache, up to 3.8 GHz); 35W
Intel® Core™ i5-9500E (6 Cores, 9M Cache, up to 4.2 GHz); 65W
Intel® Core™ i5-9500TE (6 Cores, 9M Cache, up to 3.6 GHz); 35W
Intel® Core™ i3-9100E (4 Cores, 6M Cache, 3.7 GHz); 65W
Intel® Core™ i3-9100TE (4 Cores, 6M Cache, to 3.2 GHz); 35W

芯片组

Intel® C246 Chipset

内存

Four 288-pin DIMM up to 128GB
Dual Channel DDR4 2400/2666 MHz (ECC/non ECC support)

BIOS

AMI SPI 128Mbit

显示

控制器

Intel® HD Gen 9 Graphics

特性

OpenGL 5.0, DirectX 12, OpenCL 2.1
HW Decode: AVC/H.264, MPEG2, VC1/WMV9, JPEG/MJPEG, HEVC/H265, VP8, VP9
HW Encode: MPEG2, AVC/H264, JPEG, HEVC/H265, VP8, VP9

显示器

1 x VGA
2 x DP++
VGA: resolution up to 1920x1200 @ 60Hz
DP++: resolution up to 4096x2106 @ 60Hz

三重显示

VGA + DP++ + DP++

扩充

界面

1 x PCIe x16 (Gen 3)
2 x PCIe x4 (Gen 3)
1 x PCI
1 x MINI PCIE SLOT (Full Size)
1 x M.2 2242/2280 M key (PCIe Gen3 x 4 NVMe/Intel Optane Memory Support)
1 x M.2 2230 E key (PCIe x1/USB2.0)

音讯

音讯编译码器

Realtek ALC888S

以太网路

控制器

1 x Intel® i219LM PCIe (10/100/1000Mbps) (only Xeon, Core i7/i5 support iAMT)
1 x Intel® i210AT PCIe (10/100/1000Mbps)
2 x Intel® i210AT PCIe (10/100/1000Mbps) (opt. by request, MOQ required)

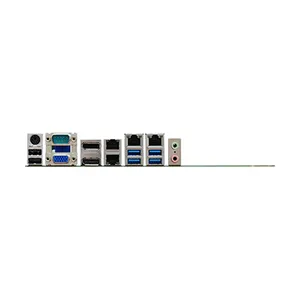

背板输入/输出

以太网络

2 x GbE (RJ-45), 4 x GbE (RJ-45) (opt. by request, MOQ required)

串口

1 x RS-232/422/485 (RS-232 w/ power) (DB-9)

USB

4 x USB 3.2 Gen 1
2 x USB 2.0

PS/2

1 x PS/2 (mini-DIN-6)

显示

1 x VGA
2 x DP++

音源

1 x Line-out
1 x Line-in (colay, opt. by request, MOQ required)
1 x Mic-in

内部输入/输出

串行端口

3 x RS-232

USB

2 x USB 3.2 Gen 1
4 x USB 2.0 (2.54mm pitch)

音效

1 x S/PDIF, 1 x Front Audio Header

SATA

4 x SATA 3.0 (up to 6Gb/s) (opt. x5 SATA) RAID 0/1/5/10

DIO

1 x 8-bit DIO

LPC

1 x LPC (support LPC EXT-RS-232/485 module)

SMBus

1 x SMBus

监视定时器

看门狗定时器

System Reset, Programmable via Software from 1 to 255 sec/min

安全性

信赖平台模块

TPM 2.0

电源

类型

ATX

端口

8-pin ATX 12V power
24-pin ATX power

耗能

Typical: i7-8700K: 3.3V @ 0.44A (1.452Watt); 5V @ 0.62A (3.1Watt); 12V @ 0.49A (5.88Watt)
Max.: i7-8700K:3.3V @ 0.51A (1.683Watt); 5V @ 1.4A (7.0Watt); 12V @ 10.44A (128.25Watt)

RTC 电池

CR2032 Coin Cell

支持操作系统

支持操作系统

Windows 10 IoT Enterprise 64-bit
Linux

环境指标

温度

Operating: -5 to 65°C
Storage: -30 to 60°C with RTC Battery; -40 to 85°C without RTC Battery

湿度

Operating: 5 to 90% RH
Storage: 5 to 90% RH

MTBF

554,887 hrs @ 25°C; 312,271 hrs @ 45°C ; 193,870 hrs @ 60°C
Calculation Model: Telcordia Issue 4
Environment: GB, GC - Ground Benign, Controlled

机械结构

尺寸

microATX form factor
244mm (9.6") x 244mm (9.6")

高度

PCB: 1.6mm
Top Side: 38.5mm
Bottom Side: 4.4mm

安规认证

认证

CE, FCC, RoHS, UL

装箱单

装箱单

1 CS332-C246 motherboard
1 Serial ATA data cable (W/LOCK, Length: 500mm) 332-553001-005G
1 I/O shield A49-CS3320-000G / A49-CS3320-010G
1 M.2 2242/2260/half mini PCIe standoff A33-725019-090G
2 M.2 Screw A32-112016-041G
