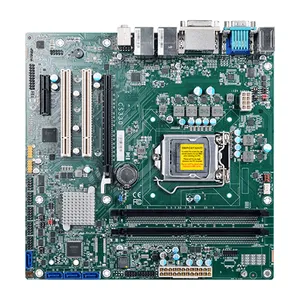

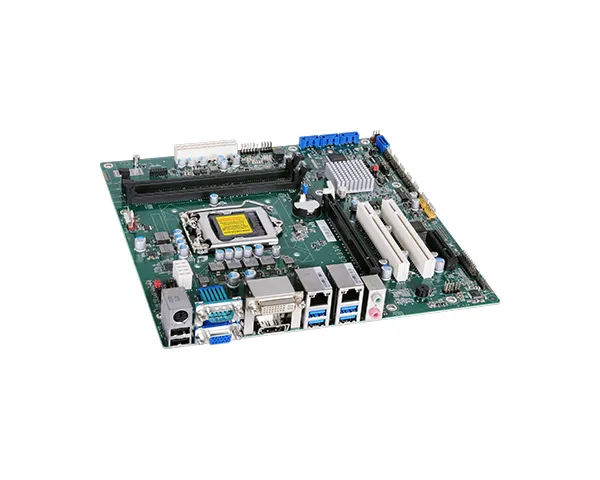

• 第九代/第八代 Intel® Core™ with Intel® H310

• 2 DDR4 DIMM 至 64GB

• 三个显示输出: VGA, DVI-D, DP++; 支持两个独立显示

• 多重扩充: 1 PCIe x16, 1 PCIe x4, 2 PCI

• 丰富 I/O: 2 Intel GbE, 6 COM, 4 USB 3.1 Gen 1, 6 USB 2.0

• 10-Year CPU Life Cycle Support Until Q2&＃39; 28 (Based on Intel IOTG Roadmap)

系统

处理器

8th Generation Intel® Core™ /Pentium®/Celeron® LGA 1151 Socket Processors:
Intel® Core™ i7-8700 (6 Cores, 12M Cache, up to 4.6 GHz); 65W
Intel® Core™ i7-8700T (6 Cores, 12M Cache, up to 4.0 GHz); 35W
Intel® Core™ i5-8500 (6 Cores, 9M Cache, up to 4.1 GHz); 65W
Intel® Core™ i5-8500T (6 Cores, 9M Cache, up to 3.5 GHz); 35W
Intel® Core™ i3-8100 (4 Cores, 6M Cache, 3.6 GHz); 65W
Intel® Core™ i3-8100T (4 Cores, 6M Cache, to 3.1 GHz); 35W
Intel® Pentium® G5400 (2 Cores, 4M Cache, 3.7 GHz); 58W
Intel® Pentium® G5400T (2 Cores, 4M Cache, 3.1 GHz); 35W
Intel® Celeron® G4900 (2 Cores, 2M Cache, 3.1 GHz); 54W
Intel® Celeron® G4900T (2 Cores, 2M Cache, 2.9 GHz); 35W
9th Generation Intel® Core™ LGA 1151 Socket Processors:
Intel® Core™ i7-9700TE (8 Cores, 12M Cache, up to 3.8 GHz); 35W
Intel® Core™ i5-9500E (6 Cores, 9M Cache, up to 4.2 GHz); 65W
Intel® Core™ i5-9500TE (6 Cores, 9M Cache, up to 3.6 GHz); 35W
Intel® Core™ i3-9100E (4 Cores, 6M Cache, 3.7 GHz); 65W
Intel® Core™ i3-9100TE (4 Cores, 6M Cache, to 3.2 GHz); 35W

芯片组

Intel® H310 Chipset

内存

Two 288-pin DIMM up to 64GB
Dual Channel DDR4 2400/2666 MHz

BIOS

AMI SPI 128Mbit

显示

控制器

Intel® HD Gen 9 Graphics

特性

OpenGL 5.0, DirectX 12, OpenCL 2.1
HW Decode: AVC/H.264, MPEG2, VC1/WMV9, JPEG/MJPEG, HEVC/H265, VP8, VP9
HW Encode: MPEG2, AVC/H264, JPEG, HEVC/H265, VP8, VP9

显示器

1 x VGA
1 x DVI-I (DVI-D signal)
1 x DP++
VGA: resolution up to 1920x1200 @ 60Hz
DVI-D: resolution up to 1920x1200 @ 60Hz
DP++: resolution up to 4096x2304 @ 60Hz

双重显示

VGA + DVI-D / VGA + DP++ / DP++ + DVI-D

扩充

界面

1 x PCIe x16 (Gen 3)
1 x PCIe x4 (Gen 2)
2 x PCI

音讯

音讯编译码器

Realtek ALC888

以太网路

控制器

1 x Intel® I210AT (10/100/1000Mbps)
1 x Intel® I219V (10/100/1000Mbps)

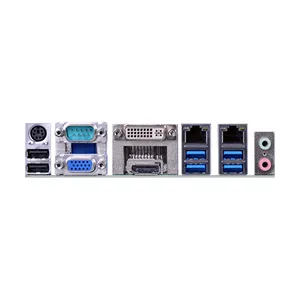

背板输入/输出

以太网络

2 x GbE (RJ-45)

串口

1 x RS-232/422/485 (RS-232 w/ power) (DB-9)

USB

4 x USB 3.1 Gen 1
2 x USB 2.0

PS/2

1 x PS/2 (mini-DIN-6)

显示

1 x VGA
1 x DVI-I (DVI-D signal)
1 x DP++

音源

1 x Line-out
1 x Mic-in
1 x Line-in (opt.)

内部输入/输出

串行端口

1 x RS-232/422/485 (RS-232 w/ power) (2.54mm pitch)
4 x RS-232

USB

4 x USB 2.0 (2.54mm pitch)

音效

1 x S/PDIF
1 x Front Audio Header

SATA

4 x SATA 3.0 (up to 6Gb/s)

DIO

1 x 8-bit DIO

LPC

1 x LPC

SMBus

1 x SMBus

监视定时器

看门狗定时器

System Reset, Programmable via Software from 1 to 255 sec/min

安全性

信赖平台模块

TPM 1.2/2.0 (Available Upon Request)

电源

类型

ATX

端口

8-pin ATX 12V power
24-pin ATX power

耗能

Typical: i7-8700K: 3.3V @ 0.29A (0.957Watt); 5V @ 0.53A (2.65Watt); 12V @ 1.08A (12.96Watt)
Max.: i7-8700K:3.3V @ 0.49A (1.617Watt); 5V @ 0.53A (2.65Watt); 12V @ 13.39A (160.68Watt)

RTC 电池

CR2032 Coin Cell

支持操作系统

支持操作系统

Windows 10 IoT Enterprise 64-bit
Linux

环境指标

温度

Operating: 0 to 60°C
Storage: -40 to 85°C without RTC Battery; -30 to 60°C with RTC Battery

湿度

Operating: 5 to 90% RH
Storage: 5 to 90% RH

MTBF

535,676 hrs @ 25°C; 352,865 hrs @ 40°C ; 303,603 hrs @ 45°C ; 189,856 hrs @ 60°C
Calculation Model: Telcordia Issue 4
Environment: GB, GC - Ground Benign, Controlled

机械结构

高度

PCB: 1.6mm
Top Side: 31.47mm, Bottom Side: 4.4mm

尺寸 (宽 x 高 x 深)

microATX form factor
244mm (9.6") x 244mm (9.6")

安规认证

认证

UL, CE, FCC, RoHS, KCC

装箱单

装箱单

1 CS330-H310 motherboard
1 COM port cable (Length: 300mm, 2 x COM ports) A81-015026-023G
1 Serial ATA data cable (Length: 500mm) 332-553001-005G
1 I/O shield A49-KD6000-000G
