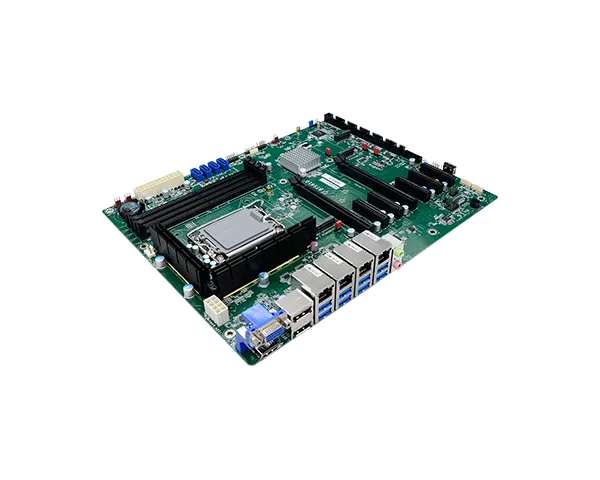

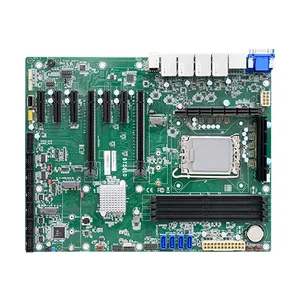

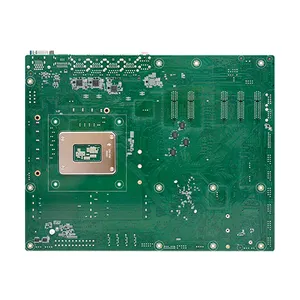

• BTL-S/14th/13th/12th Gen Intel® Core Processors

• 4 DDR5 UDIMM up to 192GB

• Quad Displays: VGA, 2 DP++, HDMI

• Supports 4K resolution

• Multiple Expansion: 2 PCIe x16, 5 PCIe x4, 2 M.2 M key, 1 M.2 A Key

• Rich I/O: 4 Intel 2.5GbE, 6 COM, 8 USB 3.2 Gen2, 2 USB 3.2 Gen1, 3 USB 2.0

• Typically supports 10-Year CPU Life Cycle Until Q1’32 (Based on Intel IOTG Roadmap)

• Support M2A-OOB

系统

处理器

Intel® Bartlett Lake-S P-Core Only LGA 1700 Socket Processors, TDP support up to 125W
Intel® Core™ 9 273PQE (12 Cores, 36M Cache, up to 5.9 GHz); 125W
Intel® Core™ 9 273PE (12 Cores, 36M Cache, up to 5.7 GHz); 65W
Intel® Core™ 9 273PTE (12 Cores, 36M Cache, up to 5.5 GHz); 45W
Intel® Core™ 7 253PQE (10 Cores, 33M Cache, up to 5.7 GHz); 125W
Intel® Core™ 7 253PE (10 Cores, 33M Cache, up to 5.5 GHz); 65W
Intel® Core™ 7 253PTE (10 Cores, 33M Cache, up to 5.4 GHz); 45W
Intel® Core™ 5 223PQE (8 Cores, 24M Cache, up to 5.5 GHz); 125W
Intel® Core™ 5 223PE (8 Cores, 24M Cache, up to 5.4 GHz); 65W
Intel® Core™ 5 223PTE (8 Cores, 24M Cache, up to 5.4 GHz); 45W
Intel® Core™ 5 213PE (8 Cores, 24M Cache, up to 5.2 GHz); 65W
Intel® Core™ 5 213PTE (8 Cores, 24M Cache, up to 5.2 GHz); 45W

Intel® Bartlett Lake-S Hybrid LGA 1700 Socket Processors, TDP support up to 125W
Intel® Core™ 7 251E (24 Cores, 36M Cache, up to 5.6 GHz); 65W
Intel® Core™ 7 251TE (24 Cores, 36M Cache, up to 5.4 GHz); 45W
Intel® Core™ 5 221E (14 Cores, 24M Cache, up to 5.2 GHz); 65W
Intel® Core™ 5 221TE (14 Cores, 24M Cache, up to 5.0 GHz); 45W
Intel® Core™ 5 211E (10 Cores, 20M Cache, up to 4.9 GHz); 65W
Intel® Core™ 5 211TE (10 Cores, 20M Cache, up to 4.8 GHz); 45W
Intel® Core™ 3 201E (4 Cores, 12M Cache, up to 4.8 GHz); 60W
Intel® Core™ 3 201TE (4 Cores, 12M Cache, up to 4.6 GHz); 45W

14th Generation P-Core Only Intel® LGA 1700 Socket Processors, TDP support up to 125W
Intel® Core™ i9-14901E (8 Cores, 36M Cache, up to 5.6 GHz); 65W
Intel® Core™ i9-14901TE (8 Cores, 36M Cache, up to 5.5 GHz); 45W
Intel® Core™ i7-14701E (8 Cores, 33M Cache, up to 5.4 GHz); 65W
Intel® Core™ i7-14701TE (8 Cores, 33M Cache, up to 5.2 GHz); 45W
Intel® Core™ i5-14501E (6 Cores, 24M Cache, up to 5.2 GHz); 65W
Intel® Core™ i5-14501TE (6 Cores, 24M Cache, up to 5.1 GHz); 45W
Intel® Core™ i5-14401E (6 Cores, 24M Cache, up to 4.7 GHz); 65W
Intel® Core™ i5-14401TE (6 Cores, 24M Cache, up to 4.5 GHz); 45W

14th Generation Intel® LGA 1700 Socket Processors, TDP support up to 125W
Intel® Core™ I9-14900 (24 Cores, 36M Cache, up to 5.8 GHz); 65W
Intel® Core™ I9-14900T (24 Cores, 36M Cache, up to 5.5 GHz); 35W
Intel® Core™ I7-14700 (20 Cores, 33M Cache, up to 5.4 GHz); 65W
Intel® Core™ I7-14700T (20 Cores, 33M Cache, up to 5.2 GHz); 35W
Intel® Core™ I5-14500 (14 Cores, 24M Cache, up to 5 GHz); 65W
Intel® Core™ I5-14500T (14 Cores, 24M Cache, up to 4.8 GHz); 35W
Intel® Core™ I5-14400 (10 Cores, 20M Cache, up to 4.7 GHz); 65W
Intel® Core™ I5-14400T (10 Cores, 20M Cache, up to 4.5 GHz); 35W
Intel® Core™ I3-14100 (4 Cores, 12M Cache, up to 4.7 GHz); 60W
Intel® Core™ I3-14100T (4 Cores, 12M Cache, up to 4.4 GHz); 35W
Intel® 300 (2 Cores, 6M Cache, up to 3.9 GHz); 46W
Intel® 300T (2 Cores, 6M Cache, up to 3.4 GHz); 35W

13th Generation Intel® LGA 1700 Socket Processors, TDP support up to 125W
Intel® Core™ I9-13900E (24 Cores, 36M Cache, up to 5.2 GHz); 65W
Intel® Core™ I9-13900TE (24 Cores, 36M Cache, up to 5.0 GHz); 35W
Intel® Core™ I7-13700E (16 Cores, 30M Cache, up to 5.1 GHz); 65W
Intel® Core™ I7-13700TE (16 Cores, 30M Cache, up to 4.8 GHz); 35W
Intel® Core™ I7-13700T (16 Cores, 30M Cache, up to 4.9 GHz); 35W
Intel® Core™ I5-13500E (14 Cores, 24M Cache, up to 4.6 GHz); 65W
Intel® Core™ I5-13500TE (14 Cores, 24M Cache, up to 4.5 GHz); 35W
Intel® Core™ I5-13500T (14 Cores, 24M Cache, up to 4.6 GHz); 35W
Intel® Core™ I5-13400E (10 Cores, 20M Cache, up to 4.6 GHz); 65W
Intel® Core™ I3-13100E (4 Cores, 12M Cache, up to 4.4 GHz); 60W
Intel® Core™ I3-13100TE (4 Cores, 12M Cache, up to 4.1 GHz); 35W
Intel® Core™ I3-13100T (4 Cores, 12M Cache, up to 4.2 GHz); 35W

12th Generation Intel® LGA 1700 Socket Processors, TDP support up to 125W
Intel® Core™ i9-12900E (16 Cores, 30M Cache, up to 5.0 GHz); 65W
Intel® Core™ i9-12900TE (16 Cores, 30M Cache, up to 4.8 GHz); 35W
Intel® Core™ i7-12700E (12 Cores, 25M Cache, up to 4.8 GHz); 65W
Intel® Core™ i7-12700TE (12 Cores, 25M Cache, up to 4.6 GHz); 35W
Intel® Core™ i5-12500E (6 Cores, 18M Cache, up to 4.5 GHz); 65W
Intel® Core™ i5-12500TE (6 Cores, 18M Cache, up to 4.3 GHz); 35W
Intel® Core™ i3-12100E (4 Cores, 12M Cache, up to 4.2 GHz); 60W
Intel® Core™ i3-12100TE (4 Cores, 12M Cache, up to 4.0 GHz); 35W
Intel® Pentium® G7400E (2 Cores, 6M Cache, 3.6 GHz); 46W
Intel® Pentium® G7400TE (2 Cores, 6M Cache, 3.0 GHz); 35W
Intel® Celeron® G6900E (2 Cores, 4M Cache, 3.0 GHz); 46W
Intel® Celeron® G6900TE (2 Cores, 4M Cache, 2.4 GHz); 35W

芯片组

BTS610-W680/R680E

Intel® W680/R680E Chipset

BTS610-Q670E

Intel® Q670E Chipset

内存

BTS610-W680/R680E

Four 288-pin UDIMM up to 192GB (ECC/Non-ECC)

Dual Channel DDR5 up to 4400 MHz

*Speed support list follow User’s Manual

BTS610-Q670E

Four 288-pin UDIMM up to 192GB (Non-ECC)

Dual Channel DDR5 up to 4400 MHz

*Speed support list follow User’s Manual

BIOS

AMI SPI 256Mbit

显示

控制器

Intel® UHD Graphics 700 series

特性

OpenGL 4.5, DirectX 12, OpenCL 2.1
HW Decode: AVC/H.264, MPEG2, VC1/WMV9, JPEG/MJPEG, HEVC/H265, VP8, VP9
HW Encode: MPEG2, AVC/H264, JPEG, HEVC/H265, VP8, VP9

显示器

1 x VGA
2 x DP++
1 x HDMI 2.0a

VGA: resolution up to 1920x1200 @ 60Hz
DP++: resolution up to 4096x2304 @60Hz
HDMI: resolution up to 4096x2160 @ 24Hz

四重显示

VGA + 2 x DP++ + HDMI

扩充

界面

2 x PCIe x16 (Gen 5, 16 or 8+8)

－Support PCIE1/PCIE4 : single at x16(PCIE1)

－Support PCIE1/PCIE4 : dual at x8(PCIE1)/x8(PCIE4)

－Support PCIE1 : Riser card x16 or x8/x8 selected by Jumper

1 x PCIe x4 (Gen 3, open edge, PCIE3)

2 x PCIe x4 (Gen 4, open edge, PCIE5 6)

1 x PCIe x4 (opt. Gen 4, open edge, PCIE7 share M.2-M2, function selected by BIOS.)

BTS610-W680/R680E

1 x PCIe x4 (Gen 3, open edge, PCIE2)

M.2

1 x M.2 M key (PCIe x4 Gen4 NVMe)
1 x M.2 A key for M2-OOB
1 x M.2 M key (PCIe x4 Gen4 NVMe, SATA)(share PCIE7, function selected by BIOS)

音讯

音讯编译码器

Realtek ALC888S

以太网路

控制器

1 x Intel® I226-LM (Core i9/i7/i5 support iAMT)
1 x Intel® I210-AT (co-lay I226-V)
2 x Intel® I226-V

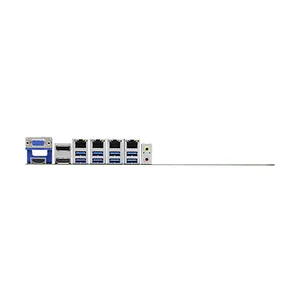

背板输入/输出

以太网络

3 x 2.5GbE (RJ-45)
1 x 1GbE (RJ-45, opt. 2.5GbE)

USB

8 x USB 3.2 Gen 2

显示

1 x VGA
2 x DP++
1 x HDMI

音源

1 x Line-out
1 x Mic-in
1 x Line-in (opt.)

内部输入/输出

串行端口

2 x RS-232/422/485 (RS-232 w/ power) (2.54mm pitch)
4 x RS-232 (2.54mm pitch)

USB

2 x USB 3.2 Gen1
3 x USB 2.0 (2.54mm pitch) (1 x USB 2.0 colay vertical Type A)

音效

1 x Front Audio
1 x S/PDIF

SATA

4 x SATA 3.0 (up to 6Gb/s)
RAID 0/1/5/10

DIO

4-IN / 8-OUT DIO

SMBus

1 x SMBus

PS/2

1 x PS/2 (2.54mm pitch)

eSPI

1 x eSPI

监视定时器

看门狗定时器

System Reset, Programmable via Software from 1 to 255 Seconds

安全性

信赖平台模块

TPM2.0

电源

类型

ATX

端口

8-pin ATX 12V power
24-pin ATX power

耗能

TBD

RTC 电池

CR2032 Coin Cell

支持操作系统

微软

Windows 10 IoT Enterprise 64-bit
Windows 11 LTSC

Linux

Linux

环境指标

温度

Operating: -5 to 65°C
Storage: -20 to 70°C with RTC Battery; -40 to 85°C without RTC Battery

湿度

Operating: 5 to 95% RH
Storage: 5 to 95% RH

MTBF

TBD

机械结构

尺寸

ATX Form Factor
305mm (12") x 244mm (9.6")

高度

PCB: 1.6mm
Top Side: TBD
Bottom Side: TBD

安规认证

认证

CE, FCC Class B, RoHS

装箱单

装箱单

· 1 BTS610-W680/R680E/Q670E motherboard
· 1 COM port cables (Length: 300mm, 2 x COM ports)
· 1 Serial ATA data cable (Length: 500mm)
· 1 I/O shield
· 1 M.2 screw/standoff
