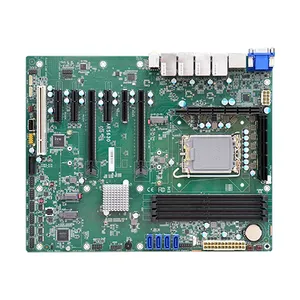

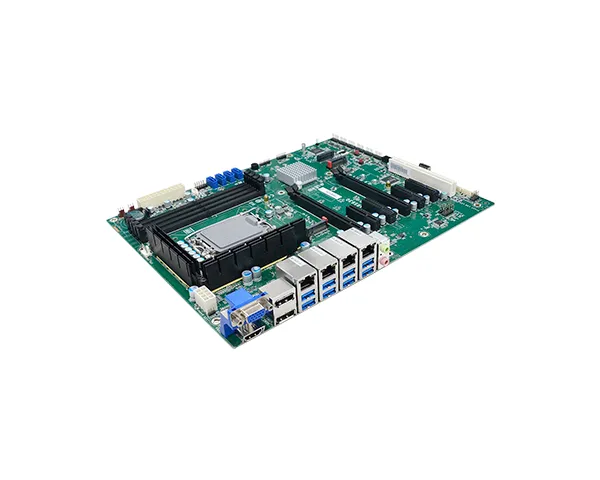

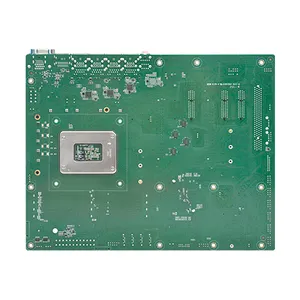

• Intel® Core™ Ultra with Intel® W880/Q870 chipset

• 4 DDR5 UDIMM up to 256GB

• Quad Displays: VGA, 2 DP++, HDMI

• Supports 4K resolution

• Multiple Expansion: 2 PCIe x16, 4 PCIe x4, 1 PCI, 2 M.2 M key, 1 M.2 A Key (for OOB)

• Rich I/O: 4 Intel 2.5GbE, 6 COM, 4 USB 3.2 Gen2, 6 USB 3.2 Gen1, 3 USB 2.0

• Typically supports 5-Year CPU Life Cycle Until Q1’30 (Based on Intel IOTG Roadmap)

• Support M2A-OOB

系统

处理器

Intel® Core™ Ultra LGA 1851 Socket Processors, TDP support up to 125W
Intel® Core™ Ultra 9 285 (24 Cores, 36M Cache, up to 5.6 GHz); 65W
Intel® Core™ Ultra 9 285T (24 Cores, 36M Cache, up to 5.4 GHz); 35W
Intel® Core™ Ultra 7 265 (20 Cores, 30M Cache, up to 5.3 GHz); 65W
Intel® Core™ Ultra 7 265T (20 Cores, 30M Cache, up to 5.3 GHz); 35W
Intel® Core™ Ultra 5 245 (14 Cores, 24M Cache, up to 5.1 GHz); 65W
Intel® Core™ Ultra 5 245T (14 Cores, 24M Cache, up to 5.1 GHz); 35W
Intel® Core™ Ultra 5 225 (10 Cores, 20M Cache, up to 4.9 GHz); 65W
Intel® Core™ Ultra 5 225T (10 Cores, 20M Cache, up to 4.9 GHz); 35W

芯片组

ARS630-W880

Intel® W880 Chipset

ARS630-Q870

Intel® Q870 Chipset

内存

ARS630-W880

Four 288-pin UDIMM up to 256GB (ECC/Non-ECC)

Dual Channel DDR5 up to 5600 MHz

*Speed support list follow User’s Manual

ARS630-Q870

Four 288-pin UDIMM up to 256GB (Non-ECC)

Dual Channel DDR5 up to 5600 MHz

*Speed support list follow User’s Manual

BIOS

AMI SPI 256Mbit

显示

控制器

Intel® UHD Graphics 700 series

特性

OpenGL 4.5, DirectX 12, OpenCL 2.1
HW Decode: AVC/H.264, MPEG2, VC1/WMV9, JPEG/MJPEG, HEVC/H265, VP8, VP9
HW Encode: MPEG2, AVC/H264, JPEG, HEVC/H265, VP8, VP9

显示器

1 x VGA
2 x DP++
1 x HDMI 2.0a
VGA: resolution up to 1920x1200 @ 60Hz
DP++: resolution up to 4096x2304 @ 60Hz
HDMI: resolution up to 4096x2160 @ 24Hz

四重显示

VGA + 2 DP++ + HDMI

扩充

界面

2 x PCIe x16 (Gen 5, 16 or 8+8)
-Support PCIE1/PCIE4 : single at x16(PCIE1)
-Support PCIE1/PCIE4 : dual at x8 (PCIE1)/x8 (PCIE4)
-Support PCIE1 : Riser card x16 or x8/x8 selected by Jumper

1 x PCIE x4 (Gen 4, x1, open edge slot)
3 x PCIe x4 (Gen 4, open edge slot)
1 x PCI

M.2

1 x M.2 2242/2260/2280 M key (PCIe x4 Gen5 NVMe)
1 x M.2 2242/2260/2280 M key (PCIe x4 Gen4 NVMe, SATA)
1 x M.2 A key for M2-OOB

音讯

音讯编译码器

Realtek ALC888S

以太网路

控制器

ARS630-W880

1 x Intel® I226-LM

1 x Intel® I210-AT (co-lay I226-V)

2 x Intel® I226-V

ARS630-Q870

1 x Intel® I226-LM

1 x Intel® I210-AT (co-lay I226-V)

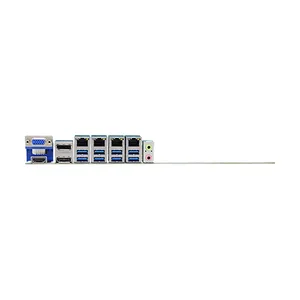

背板输入/输出

以太网络

ARS630-W880

3 x 2.5GbE (RJ-45)

1 x 1GbE (RJ-45, opt. 2.5GbE)

ARS630-Q870

1 x 2.5GbE (RJ-45)

1 x 1GbE (RJ-45, opt. 2.5GbE)

USB

4 x USB 3.2 Gen 2
4 x USB 3.2 Gen 1

显示

1 x VGA
2 x DP++
1 x HDMI

音源

1 x Line-out
1 x Mic-in
1 x Line-in (opt.)

内部输入/输出

串行端口

2 x RS-232/422/485
4 x RS-232

USB

2 x USB 3.2 Gen1
1 x USB 2.0 Vertical Type A
2 x USB 2.0 Pin Header (2.54mm pitch)

音效

1 x Front Audio
1 x S/PDIF

SATA

4 x SATA 3.0 (up to 6Gb/s)
RAID 0/1/5/10

DIO

4-IN / 8-OUT DIO

SMBus

1 x SMBus

PS/2

1 x PS/2 (2.54mm pitch)

eSPI

1 x eSPI

监视定时器

看门狗定时器

System Reset, Programmable via Software from 1 to 255 Seconds

安全性

信赖平台模块

TPM 2.0

电源

类型

ATX

端口

8-pin ATX 12V power
24-pin ATX power

耗能

TBD

RTC 电池

CR2032 Coin Cell

支持操作系统

微软

Windows 10 IoT Enterprise 64-bit
Windows 11 IoT Enterprise 64-bit

Linux

Linux

环境指标

温度

Operating: -5 to 65°C
Storage: -30 to 60°C with RTC Battery; -40 to 85°C without RTC Battery

湿度

Operating: 5 to 95% RH
Storage: 5 to 95% RH

MTBF

TBD

机械结构

尺寸

ATX Form Factor
305mm (12") x 244mm (9.6")

高度

PCB: 1.6mm
Top Side: 33.3mm
Bottom Side: 4mm

安规认证

认证

CE, FCC Class B, RoHS, UKCA, LVD, KC

装箱单

装箱单

· 1 ARS630 motherboard
· 1 COM port cables (Length: 300mm, 2 x COM ports)
· 1 Serial ATA data cable (Length: 500mm)
· 1 I/O shield
· 1 M.2 screw/standoff
