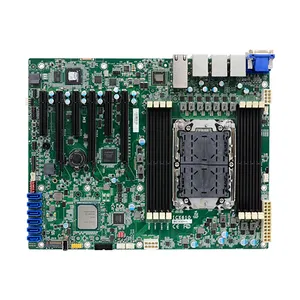

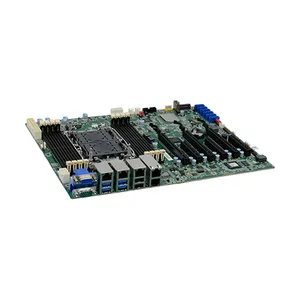

| 产品特性：工业主板 | 品牌：DFI | 型号：ICX610-C621A |
| 设备类型：工控电脑 |
3rd Gen Intel® Xeon® Scalable Processor Family
8 ECC-RDIMM up to 512GB
2 x 10GbE
IPMI/Redfish OOB Remote Management
Single Display: VGA resolution up to 1920x1200 @ 60Hz
Multiple Expansion: 3 PCIe x16, 2 PCIe x8, 1 x M.2 M key
Rich I/O: 2 Intel GbE, 1 Dedicated IPMI, 2 COM, 6 USB 3.1 Gen1, 5 USB 2.0
Typically supports 10-Year CPU Life Cycle Until Q2’30 (Based on Intel IOTG Roadmap)
系统
处理器
3rd Gen Intel® Xeon® Scalable Processor Family, LGA 4189 (Socket P+), TDP upto 205W
Intel® Xeon® Gold 6338N ( 32 Cores, 48 MB Cache, up to 3.50 GHz )
Intel® Xeon® Gold 6338T ( 24 Cores, 36 MB Cache, up to 3.40 GHz )
Intel® Xeon® Gold 6336Y ( 24 Cores, 36 MB Cache, up to 3.60 GHz )
Intel® Xeon® Gold 6330 ( 28 Cores, 42 MB Cache, up to 3.10 GHz )
Intel® Xeon® Gold 6330N ( 28 Cores, 42 MB Cache, up to 3.40 GHz )
Intel® Xeon® Gold 6326 ( 16 Cores, 24 MB Cache, up to 3.50 GHz )
Intel® Xeon® Gold 6314U ( 32 Cores, 48 MB Cache, up to 3.40 GHz )
Intel® Xeon® Gold 6312U ( 24 Cores, 36 MB Cache, up to 3.60 GHz )
Intel® Xeon® Gold 5320T ( 20 Cores, 30 MB Cache, up to 3.50 GHz )
Intel® Xeon® Gold 5318N ( 24 Cores, 36 MB Cache, up to 3.40 GHz )
Intel® Xeon® Gold 5318Y ( 24 Cores, 36 MB Cache, up to 3.40 GHz )
Intel® Xeon® Gold 5317 ( 12 Cores, 18 MB Cache, up to 3.60 GHz )
Intel® Xeon® Gold 5315Y ( 8 Cores, 12 MB Cache, up to 3.60 GHz )
Intel® Xeon® Silver 4316 ( 20 Cores, 30 MB Cache, up to 3.40 GHz )
Intel® Xeon® Silver 4314 ( 16 Cores, 24 MB Cache, up to 3.40 GHz )
Intel® Xeon® Silver 4310 ( 12 Cores, 18 MB Cache, up to 3.30 GHz )
Intel® Xeon® Silver 4310T ( 10 Cores, 15 MB Cache, up to 3.40 GHz )
芯片组
Intel® C621A Chipset
内存
8 x 288-pin ECC-RDIMM up to 512GB
Single Channel DDR4 up to 3200 MHZ
BIOS
Insyde SPI 128Mbit
显示
控制器
BMC AST2500
显示器
1 x VGA
VGA: resolution up to 1920x1200 @ 60Hz
单显示
VGA
扩充
界面
1 x M.2 2280 M key (SATA/PCIe Gen3 x4 NVMe)
3 x PCIe x16 Gen4 slot (#1/#3/#5), 3 x PCIe x8 Gen4 slot (#2/#4/#6)
*Note: PCIe#1#2 can be auto detected as (x16/0) or (x8/x8)
*Note: PCIe x8 slot is OPEN edge.
音讯
音讯编译码器
ALC888S
以太网路
控制器
2 x Intel® I210AT PCIe (10/100/1000Mbps)
2 x Intel® X550-AT2 PCIe (10Gbps)
IPMI: RTL8211F

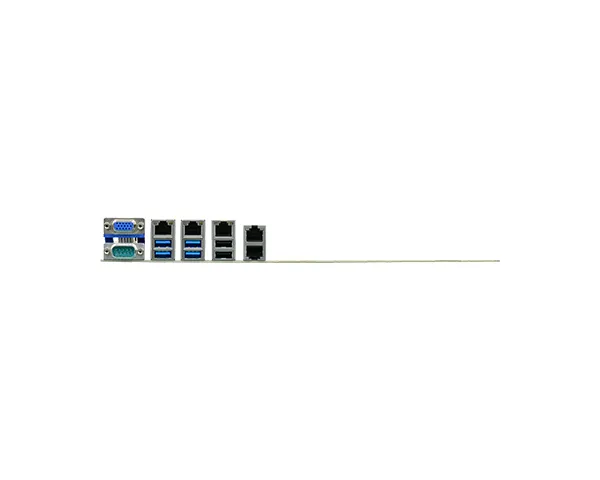

背板输入/输出
以太网络
2 x GbE (RJ-45)
2 x 10GbE (RJ-45)
1 x Dedicated IPMI LAN
串口
1 x RS-232 (DB-9)
USB
4 x USB 3.1 Gen1 (w/ RJ45 + USB 3.1 stack)
2 x USB 2.0 (w/ RJ45 + USB 2.0 stack)
显示
1 x VGA (DB-15)
内部输入/输出
串行端口
1 x RS-232 (2x5-pin)
USB
2 x USB 3.1 Gen1
2 x USB 2.0
1 x USB 2.0 Vertical Type A
音效
1 x Front Audio Header
SATA
6 x SATA 3.0 (up to 6Gb/s)
RAID 0/1/5/10
DIO
1 x 16-bit DIO
LPC
1 x LPC
SMBus
1 x SMBus
监视定时器
看门狗定时器
System Reset, Programmable via Software from 1 to 255 Seconds
安全性
信赖平台模块
Infineon TPM2.0
电源
类型
ATX
端口
8-pin ATX 12V CPU power
24-pin ATX power
耗能
TBD
电池
CR2032 Coin Cell
支持操作系统
微软
Windows 10 IoT Enterprise LTSB RS5(64-bit)
Windows Server 2019
Linux
Ubuntu 20.04
环境指标
温度
Operating: 0 to 55°C
Storage: -40 to 85°C
湿度
Operating: 5 to 90% RH, Non-condensing
Storage: 5 to 90% RH, Non-condensing
MTBF
TBD
机械结构
尺寸
ATX Form Factor 305mm (12") x 244mm (9.6")
高度
PCB: 1.6mm
Top Side: 37.34mm
安规认证
认证
CE, FCC, RoHS, UKCA
装箱单
装箱单
1 ICX610-C621A Motherboard, 770-ICX6101-000G
1 M.2 screw, A32-112016-041G
1 M.2 standoff, A33-725019-090G
1 IO Shield, A49-ICX610-000G
1 Serial ATA data cable (Length: 500mm), 332-553001-005G
