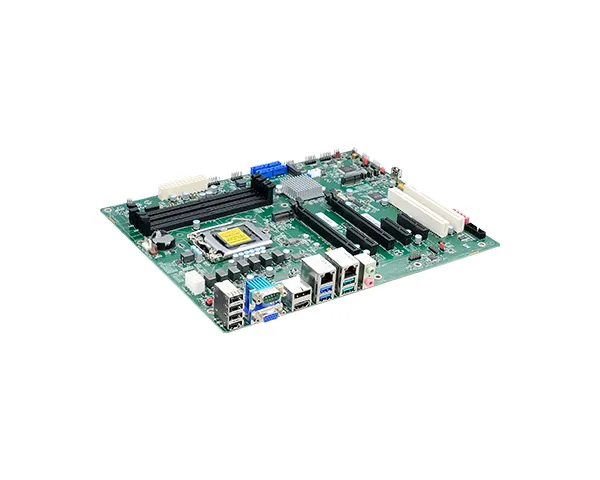

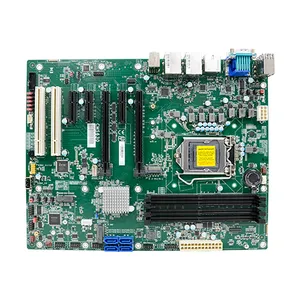

• 10th Gen Intel® Core Processors

• 4 DDR4 UDIMM up to 128GB

• Triple Displays: VGA + DP++ + HDMI

• Supports 4K/ 2K resolution

• Multiple Expansion: 1 PCIe x16, 2 PCIe x4, 1 PCIe x1, 2 PCI, 2 M.2 M key

• Rich I/O: 2 Intel GbE, 4 USB 3.2 Gen2, 2 USB 3.2 Gen1, 6 USB 2.0

• 10-Year CPU Life Cycle Support Until Q2&＃39; 30 (Based on Intel IOTG Roadmap)

• Support EXT-OOB (Lite)

系统

处理器

CMS630-W480E

10th Gen Intel® LGA 1200 Socket Processors, TDP support up to 125W

Intel® Xeon® W-1290E (10 Cores, 20M Cache, up to 4.8 GHz); 95W (ECC support on W480E SKU only)

Intel® Xeon® W-1290TE (10 Cores, 20M Cache, up to 4.5 GHz); 35W (ECC support on W480E SKU only)

Intel® Xeon® W-1270E (8 Cores, 16M Cache, up to 4.8 GHz); 80W (ECC support on W480E SKU only)

Intel® Xeon® W-1270TE (8 Cores, 16M Cache, up to 4.4 GHz); 35W (ECC support on W480E SKU only)

Intel® Xeon® W-1250E (6 Cores, 12M Cache, up to 4.7 GHz); 80W (ECC support on W480E SKU only)

Intel® Xeon® W-1250TE (6 Cores, 12M Cache, up to 3.8 GHz); 35W (ECC support on W480E SKU only)

Intel® Core™ i9-10900E (10 Cores, 20M Cache, up to 4.7 GHz); 65W

Intel® Core™ i9-10900TE (10 Cores, 20M Cache, up to 4.5 GHz); 35W

Intel® Core™ i7-10700E (8 Cores, 16M Cache, up to 4.5 GHz); 65W

Intel® Core™ i7-10700TE (8 Cores, 16M Cache, up to 4.4 GHz); 35W

Intel® Core™ i5-10500E (6 Cores, 12M Cache, up to 4.2 GHz); 65W

Intel® Core™ i5-10500TE (6 Cores, 12M Cache, up to 3.7 GHz); 35W

Intel® Core™ i3-10100E (4 Cores, 6M Cache, 3.8 GHz); 65W (ECC support on W480E SKU only)

Intel® Core™ i3-10100TE (4 Cores, 6M Cache, to 3.6 GHz); 35W (ECC support on W480E SKU only)

CMS630-Q470E

10th Gen Intel® LGA 1200 Socket Processors, TDP support up to 125W

Intel® Core™ i9-10900E (10 Cores, 20M Cache, up to 4.7 GHz); 65W

Intel® Core™ i9-10900TE (10 Cores, 20M Cache, up to 4.5 GHz); 35W

Intel® Core™ i7-10700E (8 Cores, 16M Cache, up to 4.5 GHz); 65W

Intel® Core™ i7-10700TE (8 Cores, 16M Cache, up to 4.4 GHz); 35W

Intel® Core™ i5-10500E (6 Cores, 12M Cache, up to 4.2 GHz); 65W

Intel® Core™ i5-10500TE (6 Cores, 12M Cache, up to 3.7 GHz); 35W

Intel® Pentium® G6400E (2 Cores, 4M Cache, 3.8 GHz); 58W (Q470E SKU only)

Intel® Celeron® G5900E (2 Cores, 2M Cache, 3.2 GHz); 58W (Q470E SKU only)

Intel® Celeron® G5900TE (2 Cores, 2M Cache, 3.0 GHz); 35W (Q470E SKU only)

芯片组

CMS630-W480E

Intel® W480E Chipset

CMS630-Q470E

Intel® Q470E Chipset

内存

CMS630-W480E

Four 288-pin Non-ECC UDIMM up to 128GB (Core™ i5/i7 only support non-ECC)

Dual Channel DDR4 2400/2666/2933MHz

(ECC/Non-ECC)

CMS630-Q470E

Four 288-pin Non-ECC UDIMM up to 128GB (Core™ i5/i7 only support non-ECC)

Dual Channel DDR4 2400/2666/2933MHz

(Non-ECC)

BIOS

Insyde SPI 128Mbit

显示

控制器

Intel® HD Gen 9 Graphics

特性

OpenGL 4.5, DirectX 12, OpenCL 2.1
HW Decode: AVC/H.264, MPEG2, VC1/WMV9, JPEG/MJPEG, HEVC/H265, VP8, VP9
HW Encode: MPEG2, AVC/H264, JPEG, HEVC/H265, VP8, VP9

显示器

1 x VGA, resolution up to 1920x1200 @ 60Hz
1 x DP++, resolution up to 4096x2160 @ 60Hz
1 x HDMI 1.4b, resolution up to 4096x2160 @ 24Hz

三重显示

VGA + DP++ + HDMI

扩充

界面

2 x PCIe x16 (Gen 3) (1 x16 signal or 2 x8 signal)
3 x PCIe x4 (Gen 3) (2 x4 signal and 1 x1 signal)
2 x PCI
1 x M.2 2242/2260/2280 M key (PCIe Gen3 x4 NVMe/SATA/Intel® Optane Memory and intel RST support)
1 x M.2 2242/2260/2280 M key (PCIe Gen3 x4 NVMe/Intel® Optane Memory and intel RST support)
1 x M.2 2230 E key (USB 2.0/PCIe x1 shared with PCIe x1 slot, opt., MOQ required)

音讯

音讯编译码器

Realtek ALC888

以太网路

控制器

1 x Intel® I210AT PCIe (10/100/1000Mbps)
1 x Intel® I219LM PHY with iAMT12.0 (10/100/1000Mbps) (only Xeon, Core i9/ i7/i5 supports iAMT)

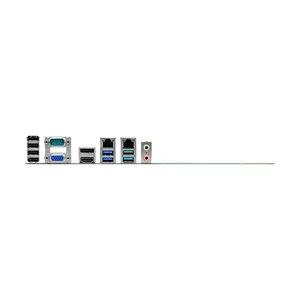

背板输入/输出

以太网络

2 x GbE (RJ-45)

串口

1 x RS-232/422/485 (RS-232 w/ power) (DB-9)

USB

2 x USB 3.2 Gen2
2 x USB 3.2 Gen1
4 x USB 2.0

显示

1 x VGA
1 x DP++
1 x HDMI

音源

1 x Line-out, 1 x Mic-in, 1 x Line-in (opt., MOQ required)

内部输入/输出

串行端口

1 x RS-232/422/485 (RS-232 w/ power) (2.54mm pitch)
4 x RS-232 (2.54mm pitch)

USB

2 x USB 3.2 Gen 2 (Key B 20-pin)
2 x USB 2.0 (2.54mm pitch, Colay vertical Type A, opt.: MOQ required)
1 x USB 2.0 Vertical Type A

音效

1 x Front Audio Header
1 x S/PDIF

SATA

4 x SATA 3.0 (up to 6Gb/s, SATA 3)
RAID 0/1/5/10

DIO

1 x 16-bit DIO

LPC

1 x LPC (supports LPC EXT-RS232/RS485 module)

SMBus

1 x SMBus

PS/2

1 x PS/2 (mini-DIN-6)

监视定时器

看门狗定时器

System Reset, Programmable via Software from 1 to 255 Seconds

安全性

信赖平台模块

Infineon TPM2.0 (opt., MOQ required)

电源

类型

ATX

端口

8-pin ATX 12V power
24-pin ATX power

耗能

Typical: i9-10900K: 3.3V @ 0.17A (0.56W); 5V @ 0.74A (3.7W); 12V @ 0.41A (4.92W)
Max.: i9-10900K:3.3V @ 0.21A (0.69W); 5V @ 1.73A (8.65W); 12V @ 12.48A (149.76W)

RTC 电池

CR2032 Coin Cell

支持操作系统

微软

Windows 10 IoT Enterprise 64-bit
Windows Server 2019 (opt. only support Intel® i210)

Linux

Linux

环境指标

温度

Operating: -5 to 65°C
Storage: -30 to 60°C with RTC Battery; -40 to 85°C without RTC Battery

湿度

Operating: 5 to 95% RH
Storage: 5 to 95% RH

MTBF

492,929 hrs @ 25°C ; 274,924 hrs @ 45°C ; 171,243 hrs @ 60°C
Calculation Model: Telcordia Issue 4
Environment: GB, GC - Ground Benign, Controlled

机械结构

尺寸

ATX Form Factor
305mm (12") x 244mm (9.6")

高度

PCB: 1.6mm
Top Side: 33.3mm, Bottom Side: 4mm

安规认证

认证

CE, FCC Class B, RoHS, UKCA, KC, UL

装箱单

装箱单

1 CMS630 motherboard
1 COM port cables (Length: 300mm, 2 x COM ports) A81-015026-023G
1 Serial ATA data cable (Length: 500mm) 332-553001-005G
1 I/O shield A49-CMS630-000G
1 M.2 screw/standoff A32-112016-041G
