| 产品特性：工业主板 | 品牌：DFI | 型号：SNA610 |
| 设备类型：工控电脑 |
AMD EPYC™ 8004 processors
6 DDR5 ECC-RDIMM up to 576GB
Single Display: DP
Supports 4K high resolution
Multiple Expansion: 3 PCIe x16 (Gen5), 3 PCIe x8 (Gen5), 1 PCIe x4 (Gen5), 2 M.2 M key 2280
Rich I/O: 2 GbE + 2 10GbE, 1 Dedicated IPMI LAN, 6 USB 3.2 Gen1, 2 USB 2.0, 2 COM, 1 Vertical USB 2.0
IPMI/Redfish OOB Remote Management
系统
处理器
AMD EPYC™ 8004 processors LGA4844, TDP upto 225W:
AMD EPYC™ 8534P (64 cores, up to 3.1GHz); 200W
AMD EPYC™ 8434P (48 cores, up to 3.1GHz); 200W
AMD EPYC™ 8324P (32 cores, up to 3.0GHz); 180W
AMD EPYC™ 8224P (24 cores, up to 3.0GHz); 160W
AMD EPYC™ 8124P (16 cores, up to 3.0GHz); 125W
内存
6 x ECC-RDIMM up to 576GB
DDR5 Max. 4800MHz
BIOS
Insyde
显示
控制器
BMC AST2600
显示器
1 x DP
单显示
DP
扩充
界面
3 x PCIe x16 (Gen5)
3 x PCIe x8 (Gen5)
1 x PCIe x4 (Gen5)
2 x M.2 M key 2280
音讯
音讯编译码器
HS-100B
以太网路
控制器
1 x Intel® I210AT+ 1 x Intel® I226LM + 2 x Intel® E610-XAT2
IPMI: RTL8211F

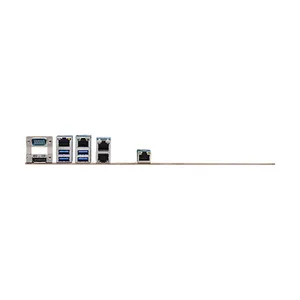

背板输入/输出
以太网络
2 x GbE + 2 x 10GbE
1 x Dedicated IPMI LAN
串口
1 x RS-232/422/485 (DB-9)
USB
4 x USB 3.2 Gen1
显示
1 x DP
内部输入/输出
串行端口
1 x RS-232/422/485
USB
2 x USB 3.2 Gen1
2 x USB 2.0
1 x Vertical USB 2.0
音效
1 x Front Audio
SATA
4 x SATA 3.0
RAID 0/1/5/10
DIO
16-bit DIO
SMBus
1 x SMBus
MCIO
1 MCIO(PCIe x8)
安全性
信赖平台模块
TPM 2.0
电源
类型
ATX
环境指标
温度
Operating: 0 to 60°C
湿度
Operating: 5 to 95% RH
Storage: 5 to 95% RH
MTBF
TBD
机械结构
尺寸
ATX Form Factor
305mm (12") x 244mm (9.6")
高度
PCB: TBD
Top Side: TBD
Bottom Side: TBD
装箱单
装箱单
• SNA610 Motherboard, 770-SNA6101-000G
• 2 M.2 screw, A32-112016-041G
• 2 M.2 standoff, A33-725019-090G
• 1 IO Shield
• 1 Serial ATA data cable (Length: 500mm), 332-553001-005G
