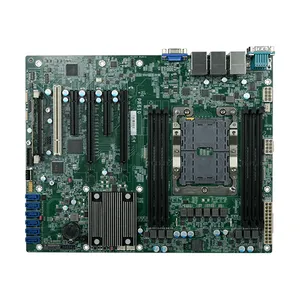

• 1st/2nd Gen Intel® Xeon® Scalable Processor with Intel® C621

• 6 DDR4 ECC-RDIMM up to 384GB

• Rich I/O: 2 Intel GbE, 1 dedicated IPMI LAN, 2 COM, 6 SATA 3, 5 USB 2.0, 6 USB 3.1 Gen1

• Multiple expansion: 2 PCIe x16, 2 PCIe x8, 1 PCI, 1 M.2

• 15-Year CPU Life Cycle Support Until Q3&＃39; 32 (Based on Intel IOTG Roadmap)

系统

处理器

1st Generation Intel® Xeon® Scalable Processor Family, LGA 3647 Socket, TDP upto 165W:
Intel® Xeon® Platinum 8160T (24 Cores, 27.5M Cache, up to 3.7 GHz); 150W
Intel® Xeon® Gold 6138T (20 Cores, 27.5M Cache, up to 3.7 GHz); 125W
Intel® Xeon® Gold 6138 (20 Cores, 27.5M Cache, up to 3.7 GHz); 125W
Intel® Xeon® Gold 6130T (16 Cores, 22M Cache, up to 3.7 GHz); 125W
Intel® Xeon® Gold 6130 (16 Cores, 22M Cache, up to 3.7 GHz); 125W
Intel® Xeon® Gold 6126T (12 Cores, 19.25M Cache, up to 3.7 GHz); 125W
Intel® Xeon® Gold 6126 (12 Cores, 19.25M Cache, up to 3.7 GHz); 125W
Intel® Xeon® Gold 5120T (14 Cores, 19.25M Cache, up to 3.2 GHz); 105W
Intel® Xeon® Gold 5119T (14 Cores, 19.25M Cache, up to 3.2 GHz); 85W
Intel® Xeon® Gold 5118 (12 Cores, 16.5M Cache, up to 3.2 GHz); 105W
Intel® Xeon® Silver 4116T (12 Cores, 16.5M Cache, up to 3.0 GHz); 85W
Intel® Xeon® Silver 4116 (12 Cores, 16.5M Cache, up to 3.0 GHz); 85W
Intel® Xeon® Silver 4114T (10 Cores, 13.75M Cache, up to 3.0 GHz); 85W
Intel® Xeon® Silver 4110 (8 Cores, 11M Cache, up to 3.0 GHz); 85W
Intel® Xeon® Silver 4109T (8 Cores, 11M Cache, up to 3.0 GHz); 70W
Intel® Xeon® Bronze 3106 (8 Cores, 11M Cache, 1.7 GHz); 85W

2nd Generation Intel® Xeon® Scalable Processor Family, LGA 3647 Socket, TDP upto 165W:
Intel® Xeon® Gold 6252N (24 Cores, 35.75M Cache, up to 3.6 GHz); 150W
Intel® Xeon® Gold 6238T (22 Cores, 30.25M Cache, up to 3.7 GHz); 125W
Intel® Xeon® Gold 6230T (20 Cores, 27.5M Cache, up to 3.9 GHz); 125W
Intel® Xeon® Gold 6230N (20 Cores, 27.5M Cache, up to 3.5 GHz); 125W
Intel® Xeon® Gold 6230 (20 Cores, 27.5M Cache, up to 3.9 GHz); 125W
Intel® Xeon® Gold 6226 (12 Cores, 19.25M Cache, up to 3.7 GHz); 125W
Intel® Xeon® Gold 5220T (18 Cores, 24.75M Cache, up to 3.9 GHz); 105W
Intel® Xeon® Gold 5218T (16 Cores, 22M Cache, up to 3.8 GHz); 105W
Intel® Xeon® Gold 5218N (16 Cores, 22M Cache, up to 3.7 GHz); 110W
Intel® Xeon® Gold 5215 (10 Cores, 13.75M Cache, up to 3.4 GHz); 85W
Intel® Xeon® Silver 4216 (16 Cores, 22M Cache, up to 3.2 GHz); 100W
Intel® Xeon® Silver 4215 (8 Cores, 11M Cache, up to 3.5 GHz); 85W
Intel® Xeon® Silver 4214 (12 Cores, 16.5M Cache, up to 3.2 GHz); 85W
Intel® Xeon® Silver 4210 (10 Cores, 13.75M Cache, up to 3.2 GHz); 85W
Intel® Xeon® Silver 4209 (8 Cores, 11M Cache, up to 3.2 GHz); 70W

芯片组

Intel® C621 Chipset

内存

Six 288-pin ECC-RDIMM up to 384GB
Single Channel DDR4 up to 2933 MHZ
Support Optane DC persistent memory module(DCPMM) in DIMM3 and DIMM6 (2nd Gen Xeon Scalable (62xx/52xx/ 4215) processors only)

BIOS

Insyde SPI 128Mbit

显示

显示器

1 x VGA (only with SEM2500/SEM2510)

单显示

VGA (only with SEM2500/SEM2510)

扩充

界面

2 x PCIe x16 (Gen 3)
2 x PCIe x8 (Gen 3)
1 x PCI
1 x DDR4 SO-DIMM for SEM2500/2510 (opt.)
1 x M.2 M key 2280 (SATA/PCIe Gen3 x4 NVMe)
*Note: PCIe x8 slot is OPEN edge.

音讯

音讯编译码器

ALC887

以太网路

控制器

2 x Intel® I210AT PCIe (10/100/1000Mbps)
IPMI: 1 x RTL8211F (only with SEM2500)

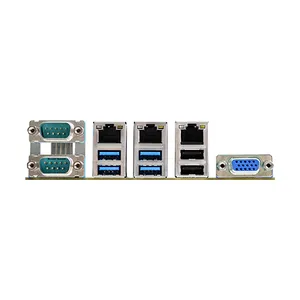

背板输入/输出

以太网络

2 x GbE (RJ-45)
1 x dedicated IPMI LAN (only with SEM2500)

USB

4x USB 3.1 Gen1
2x USB 2.0 stack

显示

1 x VGA (only with SEM2500/SEM2510)

内部输入/输出

串行端口

2 x RS-232 (DB-9)

USB

2x USB 2.0 header (2x USB 2.0)
1x USB 2.0 vertical Type A
1x USB 3.1 Gen1 header (2x USB 3.1 gen1)

SATA

6 x SATA 3.0 (up to 6Gb/s)
RAID 0/1/5/10

SMBus

1 x SMBus

监视定时器

看门狗定时器

System Reset, Programmable via Software from 1 to 255 sec/Min

安全性

信赖平台模块

TPM 2.0 (opt.)

电源

类型

ATX

端口

8-pin ATX 12V power
24-pin ATX power

耗能

Typical: 5120T: 3.3V @ 0.42A (1.386Watt); 5V @2.33A (11.65Watt); 12V @ 2.34A (28.08Watt)
Max.: 5120T:3.3V @ 0.43A (1.419Watt); 5V @ 2.4A (12.0Watt); 12V @ 12.51A (150.12Watt)

RTC 电池

CR2032 Coin Cell

支持操作系统

支持操作系统

Windows 10 IoT Enterprise LTSB RS5 (64-bit)
Windows Server 2012R2
Windows Server 2016
Linux

环境指标

温度

Operating: 0 to 60°C
Storage: -40 to 85°C

湿度

Operating: 5 to 90% RH, Non-condensing
Storage: 5 to 90% RH, Non-condensing

MTBF

493,780 hrs @ 25°C; 290,407 hrs @ 45°C ; 187,006 hrs @ 60°C
Calculation Model: Telcordia Issue 4
Environment: GB, GC - Ground Benign, Controlled

机械结构

尺寸

ATX Form Factor
305mm (12") x 244mm (9.6")

高度

PCB: 1.6mm
Top Side: 31.6mm
Bottom Side: 4mm

装箱单

装箱单

1 PR610-C621 motherboard
1 I/O shield: A49-PR6100-020G for PR610-C621DR/A49-PR6100-010G for PR610-C621DRV/A49-PR6100-000G for PR610-C621DRI
1 M.2 screw for 2280 A32-112016-041G
1 SEM2500/2510 (by ordered P/N)
