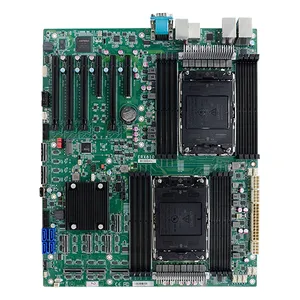

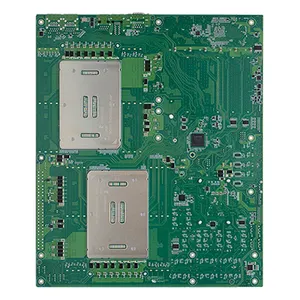

| 产品特性：工业主板 | 品牌：DFI | 型号：ERX810-C741 |
| 设备类型：工控电脑 |
5th/4th Gen Intel® Xeon® Scalable Family
16 DDR5 ECC-RDIMM up to 2048GB
IPMI/Redfish OOB Remote Management
Single Display: DP
Multiple Expansion: 4 PCIe x16 (Gen 5), 2 PCIe x8 (Gen5), 1 M.2 M key 2280
Rich I/O: 4 Intel® GbE, 1 Dedicated IPMI, 2 COM, 4 SATA 3.0, 6 USB 3.2 Gen1, 2 USB 2.0, 1 Vertical USB 2.0
系统
处理器
5th Generation Intel® Xeon® Scalable Processor Family, LGA 4677 Socket, TDP upto 270W:
Intel® Xeon® Gold 6548Y+ Processor (32 Cores, 60 MB Cache, up to 4.1 GHz); 250W
Intel® Xeon® Gold 6548N Processor (32 Cores, 60 MB Cache, up to 4.1 GHz); 250W
Intel® Xeon® Gold 6538N Processor (32 Cores, 60 MB Cache, up to 4.1 GHz); 205W
Intel® Xeon® Gold 6530 Processor (32 Cores, 160 MB Cache, up to 4 GHz); 270W
Intel® Xeon® Gold 6526Y Processor (16 Cores, 37.5 MB Cache, up to 3.9 GHz); 195W
Intel® Xeon® Gold 5520+ Processor (28 Cores, 52.5 MB Cache, up to 4 GHz); 205W
Intel® Xeon® Gold 5515+ Processor (8 Cores, 22.5 MB Cache, up to 4.1 GHz); 165W
Intel® Xeon® Silver 4516Y+ Processor (24 Cores, 45 MB Cache, up to 3.7 GHz); 185W
Intel® Xeon® Silver 4514Y Processor (16 Cores, 30 MB Cache, up to 3.4 GHz); 150W
Intel® Xeon® Silver 4510 Processor (12 Cores, 30 MB Cache, up to 4.1 GHz); 150W
Intel® Xeon® Silver 4510T Processor (12 Cores, 30 MB Cache, up to 3.7 GHz); 115W
Intel® Xeon® Silver 4509Y Processor (8 Cores, 22.5 MB Cache, up to 4.1 GHz); 125W
4th Generation Intel® Xeon® Scalable Processor Family, LGA 4677 Socket, TDP upto 270W:
Intel® Xeon® Gold 6448Y Processor (32 Cores, 60 MB Cache, up to 4.10 GHz); 225W
Intel® Xeon® Gold 6438N Processor (32 Cores, 60 MB Cache, up to 3.60 GHz); 205W
Intel® Xeon® Gold 6430 Processor (32 Cores, 60 MB Cache, up to 3.40 GHz); 270W
Intel® Xeon® Gold 6428N Processor (32 Cores, 60 MB Cache, up to 3.80 GHz); 185W
Intel® Xeon® Gold 6426Y Processor (16 Cores, 37.5 MB Cache, up to 4.10 GHz); 185W
Intel® Xeon® Gold 6418H Processor (24 Cores, 60 MB Cache, up to 4.00 GHz); 185W
Intel® Xeon® Gold 5420+ Processor (28 Cores, 52.5 MB Cache, up to 4.10 GHz); 205W
Intel® Xeon® Gold 5418N Processor (24 Cores, 45 MB Cache, up to 3.80 GHz); 165W
Intel® Xeon® Gold 5418Y Processor (24 Cores, 45 MB Cache, up to 3.80 GHz); 185W
Intel® Xeon® Gold 5415+ Processor (8 Cores, 22.5 MB Cache, up to 4.10 GHz); 150W
Intel® Xeon® Silver 4416+ Processor (20 Cores, 37.5 MB Cache, up to 3.90 GHz); 165W
Intel® Xeon® Silver 4410T Processor (10 Cores, 26.25 MB Cache, up to 4.00 GHz); 150W
Intel® Xeon® Silver 4410Y Processor (12 Cores, 30 MB Cache, up to 3.90 GHz); 150W
芯片组
Intel® C741 Chipset
内存
16 x ECC-RDIMM up to 2048GB
DDR5 Max. 5600MHz
BIOS
Insyde
显示
控制器
BMC AST2600
显示器
1 x DP
单显示
DP
扩充
界面
4 x PCIe x16 (Gen 5)
2 x PCIe x8 (Gen5)
1 x M.2 M key 2280
音讯
音讯编译码器
ALC888S
以太网路
控制器
4 x Intel® I210
IPMI: RTL8211F

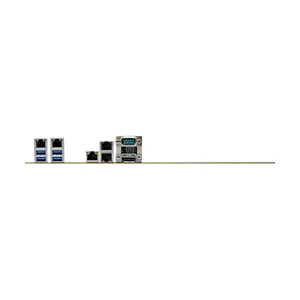

背板输入/输出
以太网络
4 x GbE
1 x Dedicated IPMI LAN
串口
1 x RS-232/422/485 (DB-9)
USB
4 x USB 3.2 Gen1
PS/2
1 x PS/2
显示
1 x DP
内部输入/输出
串行端口
1 x RS-232/422/485
USB
2 x USB 3.2 Gen1
2 x USB 2.0
1 x Vertical USB 2.0
音效
1 x Front Audio
SATA
4 x SATA 3.0
RAID 0/1/5/10
DIO
16-bit DIO
LPC
1 x LPC
MCIO
2 x MCIO
PMBUS
1 x PMBUS
安全性
信赖平台模块
TPM 2.0
电源
类型
ATX
环境指标
温度
Operating: 0 to 45°C
机械结构
尺寸
305 x 365 mm
高度
PCB: TBD
Top Side: TBD
Bottom Side: TBD
安规认证
认证
CE, FCC, RoHS, UKCA
装箱单
装箱单
• ERX810-C741 Motherboard, 770-ERX8101-000G
• 1 M.2 screw, A32-112016-041G
• 1 M.2 standoff, A33-725019-090G
• 1 IO Shield, A49-ERX810-000G
• 1 Serial ATA data cable (Length: 500mm), 332-553001-005G
• 2 COOLER CARRIER, A51-099027-000G
