| 产品特性：工业主板 | 品牌：DFI | 型号：X103-DC12 |
| 设备类型：工控电脑 |

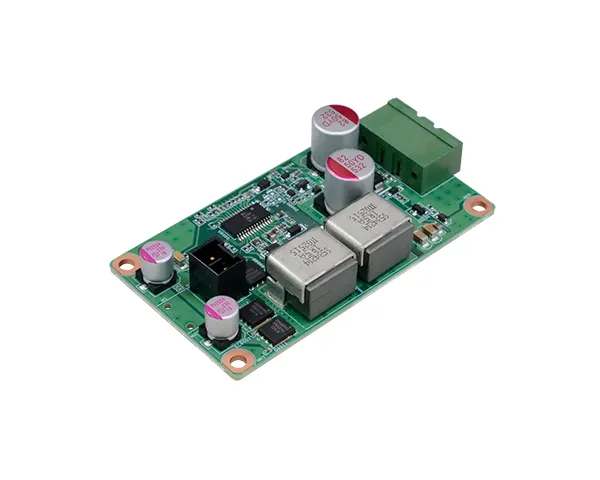

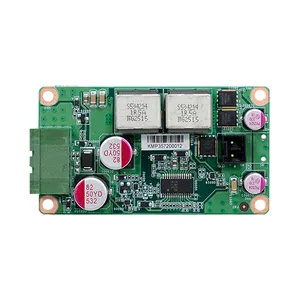

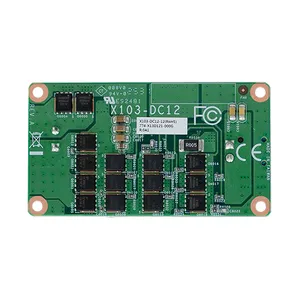

9V - 36V DC to DC Converters
Input: 9V - 36V, Output: 12V/80W
Dimensions: 72mm x 40mm
装箱单
装箱单
·1 X103-DC12 power board
·1 power output cable, compatible with 2-pin terminal or 4-pin ATX connector (Length: 100mm).
规格
特性
· POWER INPUT: 9V ~ 36V
· MECHANICAL DESIGN: 72mm x 40mm (2.83" × 1.57")
· MAXIMUM OUTPUT: 80 watts (Peak: 120 watts)
· CONNECTORS:
－Input power connector: one 2-pin terminal block, ME050-50002(DECA)
－Output power connector:
> Default: one 2-pin wire-to-board connector, vertical, DF63M-2P-3.96DSA(01)
> Option: one 2-pin wire-to-board connector, horizontal, DF63M-2P-3.96DS
· OPERATING TEMPERATURE: -40~85°C / -40~185°F
· RELATIVE HUMIDITY: Operating: 5% to 90%
· OUTPUT VOLTAGE: 12V
