| 产品特性：工业主板 | 品牌：DFI | 型号：EXT-OOB |
| 设备类型：工控电脑 |

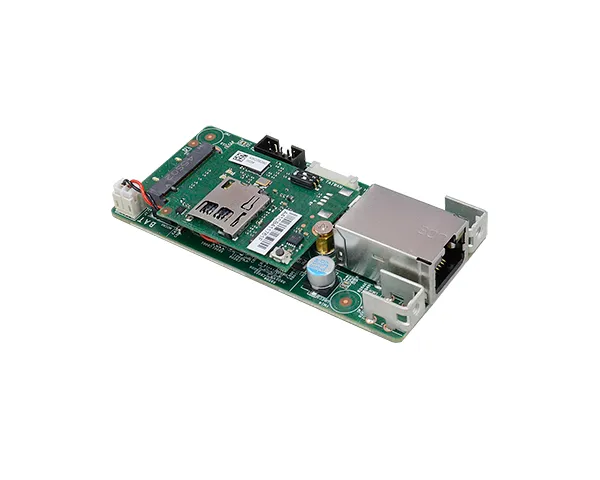

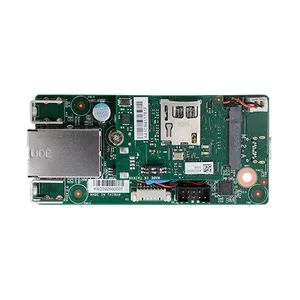

ARM926EJ-S microprocessor embedded
Low power consumption of less than 0.5 W
Built-in Out-Of-Band (OOB) remote management including remote power on/off, remote hardware monitor, remote BIOS setup
装箱单
装箱单
• 1 M2A-OOB module: 774-M2AOOB-100G

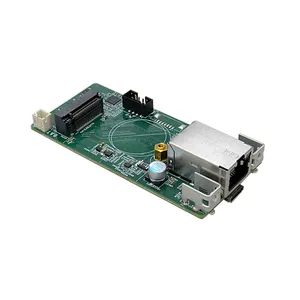

• 1 EXT-OOB carrier board: 774-EXTOOB1-100G
• 1 USB cable (Length: 100mm): A81-001197-018G
• 1 SPI cable (Length: 250mm): A81-009808-016G
• 1 OOB cable (Front Panel, COM. I2C, 5VSB): A81-009810-018G
• 1 COM transfer cable (Length: 50mm): A81-009809-016G
• 1 USB transfer cable (Length: 50mm): A81-009824-016G
• 1 Bracket: A31-028S33-000G
规格
特性
◆ Out-Of-Band Monitoring and Management Functions
• Processor: Nuvoton NUC980DK71YC (LQFP-128, 128MB DDR2)
• Power Cycling:
- Enforcement Shutdown
- Power Switch On / Off
- Reset
◆ Signal Interface
• Connector: Proprietary M.2 Pin Definition by DFI
• Factory Reset: Factory Reset Button (5 Seconds Pressed)
• Configuration Lock: 2 DP switch (default: both disabled)
• Storage: 128MB SPI NAND Flash
Micro SD Slot (Co-layout with optional eMMC)
• LED Indicator Lights: MCU Activated
◆ Environment
• Operating Temperature: -5 to 65ºC (On Industrial Motherboard)
• Operation Humidity: 5 to 90% (Non-condensing)
• Storage Temperature: -40 to 85°C
• Certification: CE / FCC / RoHS & REACH Compliant
◆ DIMENSIONS: 89.80 x 45.60mm
基本功能
基本功能
> Support OOB-Lite Functions
Open SSH Login
Remote power on/off & reset control
Recovery (Factory Mode)
Remote BIOS setup & UEFI shell (serial over lan)
Remote BIOS update SOL & DFI USB-Storage
Change OOB IP address
Remote Recovery OS Image (UEFI text mode)**
> Support OOB-Full Functions
Open SSH Login
Remote power on/off & reset control
Remote hardware monitor log
Recovery (Factory Mode)
Remote BIOS setup & UEFI shell (serial over lan)
Remote BIOS update SPI-NAND*
Remote BIOS update SOL & DFI USB-Storage
Change OOB IP address
Remote Recovery OS Image (UEFI text mode)**
*Remote BIOS Update (SPI) is not supported on the AMD platform.
**Remote Recovery OS Image only supports windows.
