价 格
订货量
面议
价格为商家提供的参考价，请通过"获取最低报价"
获得您最满意的心理价位~
不限
| 产品特性：工业主板 | 品牌：DFI | 型号：RM101-OOB |
| 设备类型：工控电脑 |

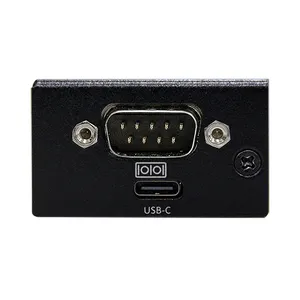

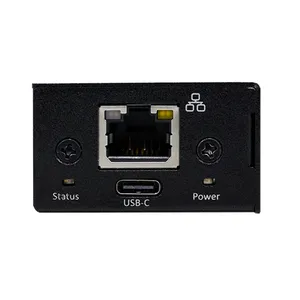

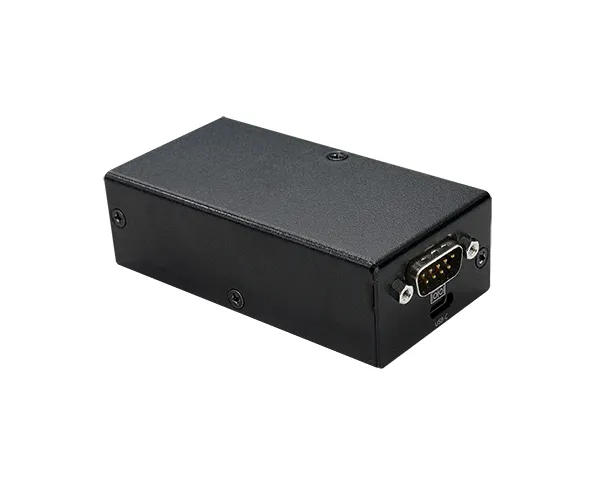

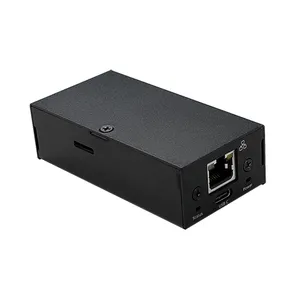

ARM926EJ-S microprocessor embedded
Low power consumption of less than 0.5 W
Built-in Out-Of-Band (OOB) remote management including remote power on/off, remote hardware monitor, remote BIOS setup
装箱单
装箱单
• 1 System unit
• 1 COM cable (Length: 200mm): A81-015127-054G
• 1 USB power cable (Length: 200mm):
- 000G (USB TYPE C to USB TYPE C): A81-001200-017G
- 100G (USB TYPE A to USB TYPE C): A81-001199-017G
规格
特性
◆ Out-Of-Band Monitoring and Management Functions
• Processor: Nuvoton NUC980DK71YC (LQFP-128, 128MB DDR2)
• Power Cycling:
- Enforcement Shutdown
- Power Switch On / Off
- Reset
◆ Signal Interface
• Connector: Proprietary M.2 Pin Definition by DFI
• Factory Reset: Factory Reset Button (5 Seconds Pressed)
• Configuration Lock: 2 DP switch (default: both disabled)
• Storage: 128MB SPI NAND Flash
Micro SD Slot (Co-layout with optional eMMC)
• LED Indicator Lights: MCU Activated
◆ Environment
• Operating Temperature: -5 to 65ºC (On Industrial Motherboard)
• Operation Humidity: 5 to 90% (Non-condensing)
• Storage Temperature: -40 to 85°C
• Certification: CE / FCC / RoHS & REACH Compliant
◆ DIMENSIONS: 89.80 x 45.60 x 27mm
基本功能
基本功能
Open SSH Login
Remote power on/off & reset control
Recovery (Factory Mode)
Remote BIOS setup & UEFI shell (serial over lan)
Remote BIOS update SOL & DFI USB-Storage
Change OOB IP address
Remote Recovery OS Image (UEFI text mode)**
**Remote Recovery OS Image only supports windows.
