| 产品特性：工业主板 | 品牌：DFI | 型号：M2-GNSS |
| 设备类型：工控电脑 |

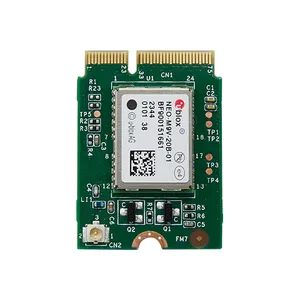

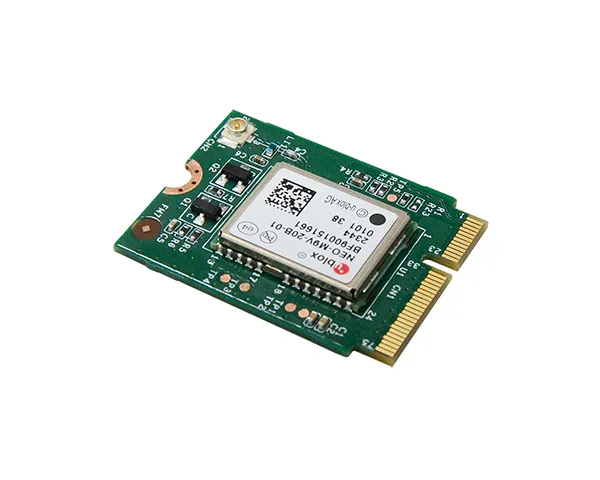

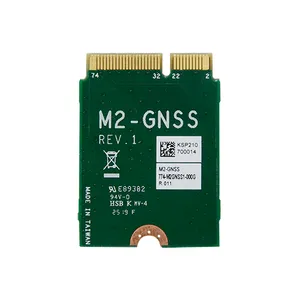

Module: Ublox NEO-M9V
Receiver Type: GPS/QZSS L1 C/A、GLONASS L10F、BeiDou B1I、Galileo E1B/C
Form Factor: M.2 2230 E Key 22mm x 30mm
Input Interface: USB 2.0
装箱单
装箱单
• 1 M2-GNSS module
• 1 IPEX cable (Length: 300mm), A81-099012-019G
规格
特性
· Board Form Factor: M.2 2230 E Key (USB 2.0)
· Controller: Ublox NEO-M9V module
· Receiver Type:
－GPS/QZSS L1 C/A, GLONASS L10F
－BeiDou B1I
－Galileo E1B/C
· Time-To-First-Fix(GPS + GLONASS):
－Cold Start: 25 seconds
－Hot Start: 2 seconds
－Aiding Start: 2 seconds
· Sensitivity(GPS + GLONASS):
－Tracking & Navigation: -159 dBm
－Reacquisition: -158 dBm
－Cold start: -148 dBm
· Position Accuracy(GPS + GLONASS): Horizontal: 1.7 m (SBAS)
· Time Pulse Signal Accuracy:
－RMS: 30 ns
－***: 60 ns
· Velocity Accuracy: 0.08 m/s
· Operational limits:
－Dynamics: <4 g
－Altitude: 80,000 m
－Velocity: 500 m/s
· Dead Reckoning: UDR (by request)
· Dimension: 22 x 30mm
· Temperature:
－Op. temp: -40 to 85°C
－Storage temp.: -40 to 85°C
