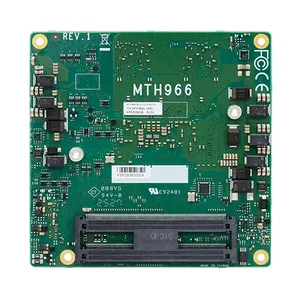

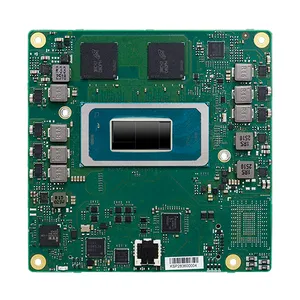

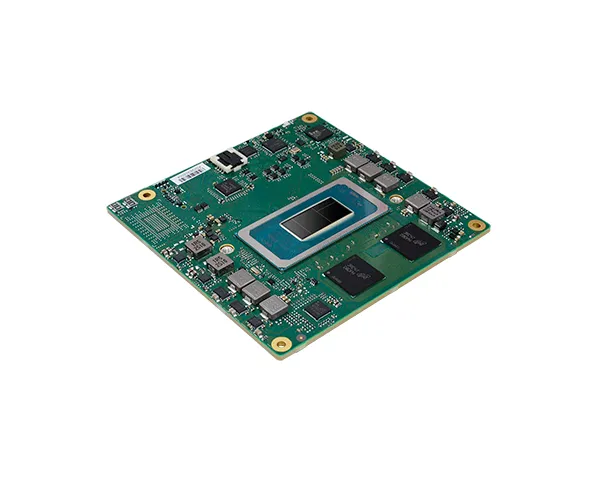

• Intel® Core™ Ultra Processor (Meteor Lake: U/H-series)

• Dual Channel LPDDR5 7467MHz memory down up to 32GB

• Multiple Displays: 1 LVDS/eDP + 3 DDI

• Supports 4K / 2K resolution

• Multiple Expansion: 8 PCIe x1, 2 PCIe x4, 1 PCIe x8, 1 I2C, 1 SMBus, 1 LPC/eSPI, 2 UART

• Rich I/O: 1 Intel 2.5GbE, 2 USB 4.0, 4 USB 3.2, 8 USB 2.0, 2 SATA 3.0

系统

处理器

Intel® Core™ Ultra Processor (Meteor Lake: U/H-series)
Intel® Core™ Ultra 7 155H (6 P-Cores x 1.4 GHz, 8 E-Cores x 0.9 GHz, 24 MB cache, 28W)
Intel® Core™ Ultra 5 125H (4 P-Cores x 1.2 GHz, 8 E-Cores x 0.7 GHz, 18 MB cache, 28W)
Intel® Core™ Ultra 7 155U (2 P-Cores x 1.7 GHz, 8 E-Cores x 1.2 GHz, 12 MB cache, 15W)
Intel® Core™ Ultra 5 125U (2 P-Cores x 1.3 GHz, 8 E-Cores x 0.8 GHz, 12 MB cache, 15W)

内存

Dual Channel LPDDR5 memory down up to 32GByte

BIOS

AMI BIOS

显示

控制器

155H/125H : Intel® Arc™ Graphics
125U/155U : Intel® Graphics

特性

DX12, Open GL 4.6, Vulkan 1.2 (Windows)
Mesa 3D, Open GL 4.6, Vulkan 1.2 (Linux)
HW Decode : 4K60 8b 4:2:0 AVC
HW Encode : 4K60 10b 4:4:4 HEVC/VP9/SCC 4K60 8b 4:2:0 AVC

显示器

1 x LVDS/eDP (eDP available upon request)
3 x DDI (2 DDI option with USB4)

LVDS: dual channel 24-bit, resolution up to 1920x1200 @ 60Hz
eDP: resolution up to 4096x2304 @ 60Hz
HDMI: resolution up to 4096x2160 @ 30Hz
DP++: resolution up to 4096x2304 @ 60Hz

多重显示

LVDS + 3 DDI

扩充

界面

8 x PCIe x1 (Gen4, Lanes 6/7 by option)
1 x PCIe x8 (Gen 5, H-Line only)
2 x PCIe x4 (Gen4, PEG_LANE4-7 option with NVMe SSD)
1 x I2C
1 x SMBUS
1 x LPC/eSPI
2 x UART

音讯

界面

HD Audio

以太网路

控制器

1 x Intel® I226 series (10/100/1000Mbps/2.5G)

输入/输出

USB

2 x USB 4.0 (BOM option with DDI)
4 x USB 3.2 Gen 2
8 x USB 2.0

SATA

2 x SATA 3.0 (up to 6Gb/s), co-lay PCIe x1 (available upon request)

DIO

1 x 8-bit DIO

NVMe SSD

1 x 128GB/256GB/512GB/1024GB on board SSD (available upon request)

监视定时器

看门狗定时器

System Reset, Programmable via Software from 1 to 255 Seconds

安全性

信赖平台模块

Available Upon Request

电源

类型

8.5~20V, 5VSB, VCC_RTC (ATX mode)
8.5~20V, VCC_RTC (AT mode)

耗能

DC power source (8.5V) :
Typical: 8.5V @ 1.09A (9.265W) Max: 8.5V @ 8.1A (68.85W)
DC power source (20V) :
Typical: 20V @ 0.52A (10.4W) Max: 20V @ 3.51A (70.2W)

支持操作系统

微软

Windows 10 IoT Enterprise 64-bit
Windows 11

Linux

Linux

环境指标

温度

· Operating:
0°C~60°C (For H-Series Processor)
-40°C~85°C (For U-Series Processor)
· Storage:
-40°C~85°C

湿度

· Operating: 10%~90% RH
· Storage: 10%~90% RH

MTBF

678,860 hrs @ 25°C; 246,787 hrs @ 45°C; 98,029 hrs @ 60°C; 52,583 hrs @ 70°C; 40,582 hrs@ 85°C
Calculation Model: Telcordia Issue 4
Environment: GB, GC - Ground Benign, Controlled

机械结构

尺寸

COM Express® Compact
95mm (3.74") x 95mm (3.74")

规范

PICMG COM Express® R3.1, Type 6

安规认证

认证

CE, FCC, RoHS

装箱单

装箱单

· Cooler : A71-108312-000G
· CPU Block : A71-210409-000G
