| 产品特性：工业主板 | 品牌：DFI | 型号：RPP968 |
| 设备类型：工控电脑 |

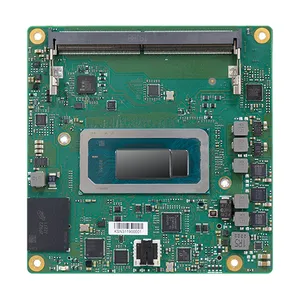

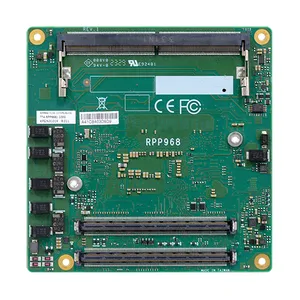

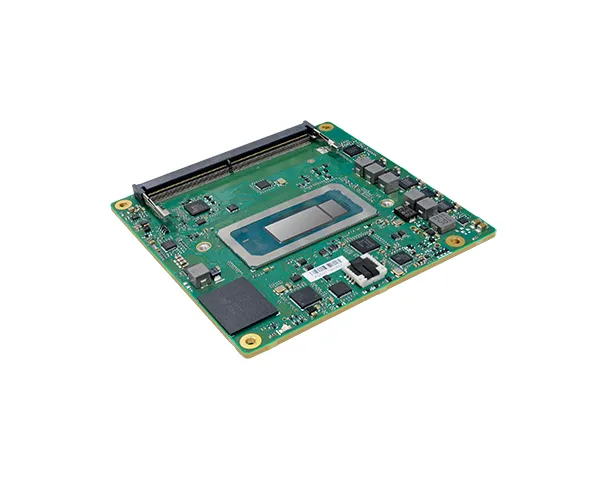

Intel® Core® Processor Raptor Lake Series
DDR5 5200MHz SODIMM up to 64GB
1 LVDS/eDP, 1 VGA, 3 DDI (HDMI/DP++)
Multiple expansions: 2 PCIe x4 (Gen4 PCH), 5 PCIe x1
Rich I/O: 1 Intel GbE, 4 USB 3.2, 8 USB 2.0
15-Year CPU Life Cycle Support Until Q1&＃39; 38 (Based on Intel IOTG Roadmap)
系统
处理器
Intel® Core™ i7-13800HE (6 P-Cores x 2.5 GHz, 8 E-Cores x 1.8 GHz, 24 MB cache, 45W)
Intel® Core™ i5-13600HE (4 P-Cores x 2.7 GHz, 8 E-Cores x 1.9 GHz, 18 MB cache, 45W)
Intel® Core™ i3-13300HE (4 P-Cores x 2.1 GHz, 4 E-Cores x 1.5 GHz, 12 MB cache, 45W)
Intel® Core™ i7-1370PE (6 P-Cores x 1.9 GHz, 8 E-Cores x 1.2 GHz, 24 MB cache, 28W)
Intel® Core™ i5-1350PE (4 P-Cores x 1.8 GHz, 8 E-Cores x 1.3 GHz, 12 MB cache, 28W)
Intel® Core™ i5-1340PE (4 P-Cores x 1.8 GHz, 8 E-Cores x 1.3 GHz, 12 MB cache, 28W)
Intel® Core™ i3-1320PE (4 P-Cores x 1.7 GHz, 4 E-Cores x 1.2 GHz, 12 MB cache, 28W)
Intel® Core™ i7-1365UE (2 P-Cores x 1.7 GHz, 8 E-Cores x 1.2 GHz, 12 MB cache, 15W)
Intel® Core™ i5-1345UE (2 P-Cores x 1.4 GHz, 8 E-Cores x 1.1 GHz, 12 MB cache, 15W)
Intel® Core™ i5-1335UE (2 P-Cores x 1.2 GHz, 8 E-Cores x 0.9 GHz, 12 MB cache, 15W)
Intel® Core™ i3-1315UE (2 P-Cores x 1.2 GHz, 4 E-Cores x 0.9 GHz, 10 MB cache, 15W)
Intel® Pentium® U300E (1 P-Core x 1.1 GHz, 4 E-Cores x 0.9 GHz, 8 MB cache, 15W)
内存
Two 262-Pin SO-DIMM up to 64GB, Dual Channel DDR5 5200MHz
BIOS
AMI BIOS
显示
控制器
Intel® Iris® Xe graphics
特性
OpenGL 5.0, DirectX 12, OpenCL 2.1
HW Decode: WMV9, AVC/H264, JPEG/MJPEG, HEVC/H265, VP9, AV1
HW Encode: AVC/H264, JPEG, HEVC/H265, VP9
显示器
1 x VGA
1 x LVDS/eDP (eDP available upon request)
3 x DDI
VGA: resolution up to 1920x1200 @ 60Hz
LVDS: dual channel 24-bit, resolution up to 1920x1200 @ 60Hz
eDP: resolution up to 4096x2304 @ 60Hz
HDMI: resolution up to 4096x2160 @ 30Hz
DP++: resolution up to 4096x2304 @ 60Hz
三重显示
VGA + LVDS + DDI
DDI + eDP + DDI (available upon request)
扩充
界面
2 x PCIe x4 (Gen4 CPU)
5 x PCIex1 (Gen3) (8 x PCIex1 available upon request)
1 x I2C
1 x SMBus
1 x SPI
2 x UART (TX/RX)
音讯
界面
HD Audio
以太网路
控制器
1 x Intel® I226 series (10/100/1000Mbps/2.5G), co-lay PCIe x1 (available upon request)
输入/输出
USB
4 x USB 3.2 Gen.2
8 x USB 2.0
SATA
2 x SATA 3.0 (up to 6Gb/s), co-lay PCIe x1 (available upon request)
SSD
1 x 64GB/128GB/256GB/512GB/1024GB on board SSD (available upon request)
DIO
1 x 8-bit DIO
监视定时器
看门狗定时器
System Reset, Programmable via Software from 1 to 255 Seconds
安全性
信赖平台模块
Available Upon Request
电源
类型
8.5~20V, 5VSB, VCC_RTC (ATX mode)
8.5~12V, VCC_RTC (AT mode)
耗能
TBD
支持操作系统
微软
Windows 10 IoT Enterprise 64-bit
Linux
Linux
环境指标
温度
Operating: 0 to 60°C, -40 to 85°C
Storage: -40 to 85°C
湿度
Operating: 10 to 90% RH
Storage: 10 to 90% RH
MTBF
TBD
机械结构
尺寸
COM Express® Compact
95mm (3.74") x 95mm (3.74")
规范
PICMG COM Express® R3.1, Type 6
安规认证
认证
CE, FCC, RoHS, UKCA
