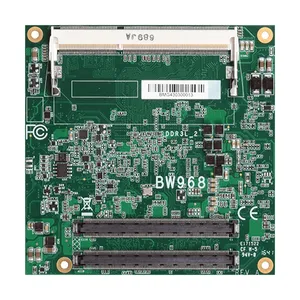

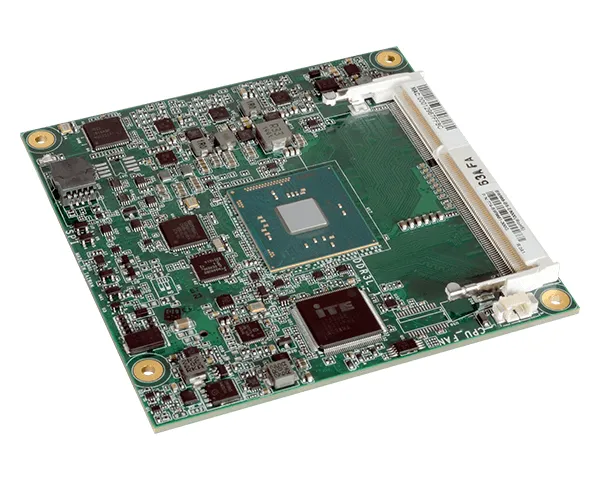

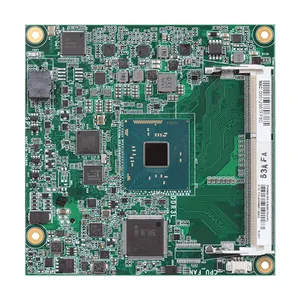

| 产品特性：工业主板 | 品牌：DFI | 型号：BW968 |
| 设备类型：工控电脑 |
Intel® Pentium® N3000
双通道 DDR3L 1600MHz SODIMM 至8GB
三重独立显示: VGA*/DDI + LVDS*/eDP + DDI
多重扩充讯号: 3 PCIe x1, 1 LPC, 1 I2C, 1 SMBus
丰富 I/O: 1 Intel 网口, 4 USB 3.0, 8 USB 2.0
15年CPU长期支持至Q1&＃39; 30 (Based on Intel IOTG Roadmap)
系统
处理器
Intel® Pentium®/Celeron® Processor N3000 Family, BGA 1170
Intel® Atom™ Processor x5-E8000, Quad Core, 2M Cache, 1.04GHz, 5W
Intel® Pentium® Processor N3710, Quad Core, 2M Cache, 1.6GHz (2.56GHz), 6W
Intel® Celeron® Processor N3160, Quad Core, 2M Cache, 1.6GHz (2.24GHz), 6W
Intel® Celeron® Processor N3060, Dual Core, 2M Cache, 1.6GHz (2.48GHz), 6W
Intel® Celeron® Processor N3010, Dual Core, 2M Cache, 1.04GHz (2.24GHz), 4W
内存
Two 204-pin SODIMM up to 8GB Dual Channel DDR3L 1600MHz
BIOS
Insyde SPI 64Mbit
显示
控制器
Intel® HD Graphics
特性
OpenGL 4.2, Direct X 11.1, OpenCL 1.2, OGL ES 3.0
HW Decode: H.264, MPEG2, VC1, VP8, H.265, MPEG4
HW Encode: H.264, MPEG2, MPEG4
显示器
1 x VGA/DDI (DDI available upon request)
1 x LVDS/eDP (eDP available upon request)
1 x DDI
VGA: resolution up to 1920x1200 @ 60Hz
LVDS: dual channel 24-bit, resolution up to 1920x1200 @ 60Hz
eDP: resolution up to 2560x1440 @ 60Hz
HDMI: resolution up to 3840x2160 @ 30Hz or 2560x1600 @ 60Hz
DP: resolution up to 3840x2160 @ 30Hz or 2560x1600 @ 60Hz
三重显示
VGA + LVDS + DDI
DDI + eDP + DDI (available upon request)
扩充
界面
3 x PCIe x1 (Gen 2)
1 x LPC
1 x I2C
1 x SMBus
2 x Serial (TX/RX)
音讯
界面
HD Audio
以太网路
控制器
1 x Intel® I211AT PCIe (10/100/1000Mbps)
输入/输出
USB
4 x USB 3.0
8 x USB 2.0
SATA
2 x SATA 3.0 (up to 6Gb/s)
DIO
1 x 8-bit DIO
监视定时器
看门狗定时器
System Reset, Programmable via Software from 1 to 255 Seconds
安全性
信赖平台模块
Available Upon Request
电源
类型
12V, 5VSB, VCC_RTC (ATX mode) 12V, VCC_RTC (AT mode)
耗能
Typical: N3710: 12V @ 0.28A (3.41Watt)
Max.: N3710: 12V @ 0.61A (7.35Watt)
支持操作系统
支持操作系统
Windows 8.1 64-bit
Windows 7 (/WES7) 32/64-bit
Windows 10 IoT Enterprise 64-bit
Debian 8 (with VESA graphic driver)
CentOS 7 (with VESA graphic driver)
Linux
环境指标
温度
Operating: 0 to 60°C
Storage: -40 to 85°C
湿度
Operating: 10 to 90% RH
Storage: 10 to 90% RH
MTBF
746,818 hrs @ 25°C; 402,691 hrs @ 45°C; 241,711 hrs @ 60°C
Calculation Model: Telcordia Issue 2, Method Case 3
Environment: GB, GC – Ground Benign, Controlled
机械结构
尺寸
COM Express® Compact 95mm (3.74") x 95mm (3.74")
规范
PICMG COM Express® R2.1, Type 6
装箱单
装箱单
1 BW968 board
1 Heat sink (Height: 18.68mm): A71-008122-000G
