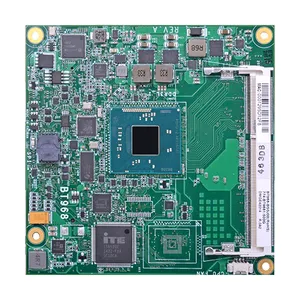

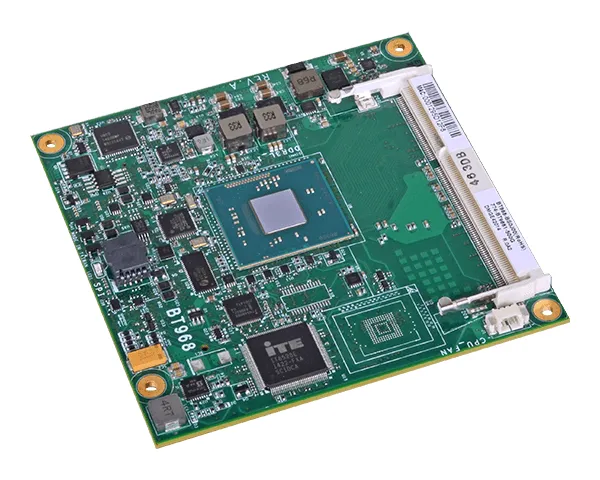

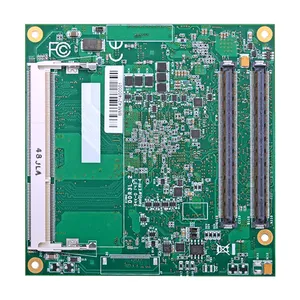

| 产品特性：工业主板 | 品牌：DFI | 型号：BT968 |
| 设备类型：工控电脑 |
15-Year CPU Life Cycle Support Until Q4&＃39; 28 (Based on Intel IOTG Roadmap)
Dual Channel DDR3L 1333MHz SODIMM up to 8GB
Support Dual Displays: 1 VGA, 1 LVDS, 1 DDI (HDMI/DVI/DP)
Multiple expansions: 3 PCIe x1, 2 SATA 2.0
Rich I/O: 1 Intel GbE, 1 USB 3.0, 8 USB 2.0
Intel Atom® E3800 Series
系统
处理器
Intel Atom® Processor E3800 Series, BGA 1170
Intel Atom® E3845, Quad Core, 2M Cache, 1.91GHz, 10W
Intel Atom® E3827, Dual Core, 1M Cache, 1.75GHz, 8W
Intel Atom® E3815, Single Core, 0.5M Cache, 1.46GHz, 5W
Intel® Celeron® J1900, Quad Core, 2M Cache, 2GHz (2.41GHz), 10W
Intel® Celeron® N2930, Quad Core, 2M Cache, 1.83GHz (2.16GHz), 7.5W
内存
Two 204-pin SODIMM up to 8GB
Dual Channel DDR3L 1333MHz
BIOS
AMI 64Mbit BIOS
显示
控制器
Intel® HD Graphics
特性
OpenGL 3.2, DirectX 11, OpenCL 1.2
HW Decode: AVC/H.264, MPEG2, VC1, WMV9, JPEG/MJPEG, HEVC/H.264, VP8, VP9, MVC
HW Encode: AVC/H.264, JPEG/MJPEG, HEVC/H.264, VP8, VP9, MVC
显示器
1 x DDI (HDMI/DVI/DP)
1 x LVDS/DDI* (HDMI/DVI/DP)
1 x VGA
LVDS: dual channel 24-bit, resolution up to 1920x1200 @ 60Hz
HDMI/DVI: resolution up to 1920x1080 @ 60Hz
DP: resolution up to 2560x1600 @ 60Hz
VGA: resolution up to 1920x1200 @ 60Hz
扩充
界面
3 x PCIe x1 or 1 PCIe x4
1 x LPC
1 x I2C
1 x SMBus
2 x Serial (TX/RX)
音讯
界面
HD Audio
以太网路
控制器
1 x Intel® I210AT (10/100/1000Mbps)
输入/输出
USB
1 x USB 3.0
8 x USB 2.0
SATA
2 x SATA 2.0
eMMC
1 x 4GB/8GB/16GB/32GB eMMC (available upon request)
DIO
1 x 8-bit DIO
监视定时器
看门狗定时器
System Reset, Programmable via Software from 1 to 255 Seconds
安全性
信赖平台模块
Available Upon Request
电源
类型
12V, 5VSB, VCC_RTC (ATX mode)
12V, VCC_RTC (AT mode)
耗能
BT968-TS0-E45: 15.88W with E3845 at 1.91GHz and 2 x 4GB DDR3L SODIMM
支持操作系统
支持操作系统
Windows 7 Ultimate x86 & SP1 (32-bit)
Windows 7 Ultimate x64 & SP1 (64-bit)
Windows 8 Enterprise x86 (32-bit)
Windows 8 Enterprise x64 (64-bit)
Windows 8.1 Enterprise x86 (32-bit)
Windows 8.1 Enterprise x64 (64-bit)
Windows 10 Enterprise x86 (32-bit)
Windows 10 Enterprise x64 (64-bit)
环境指标
温度
Operating: 0 to 60°C, -20 to 70°C, -40 to 85°C
Storage: -40 to 85°C
湿度
Operating: 10 to 90% RH
Storage: 10 to 90% RH
MTBF
777,906 hrs @ 25°C; 394,833 hrs @ 45°C
Calculation model: Telcordia Issue 2, Method I Case 3
Environment: GB, GC – Ground Benign, Controlled
机械结构
尺寸
COM Express® Compact 95mm (3.74") x 95mm (3.74")
规范
PICMG COM Express® R2.1, Type 6
安规认证
认证
CE, FCC Class B, RoHS
装箱单
装箱单
1 BT968 board
1 Heat spreader: A71-011039-000G
