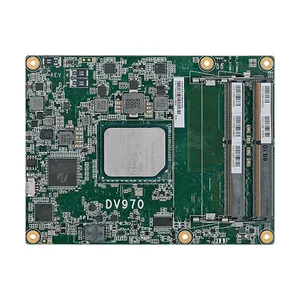

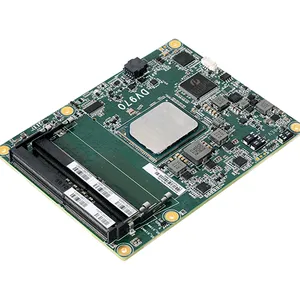

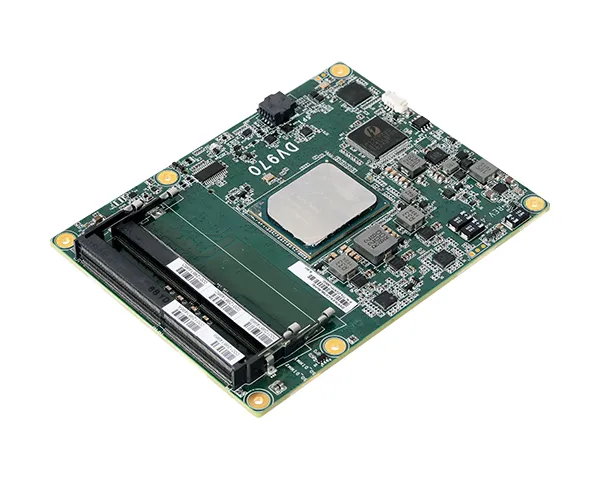

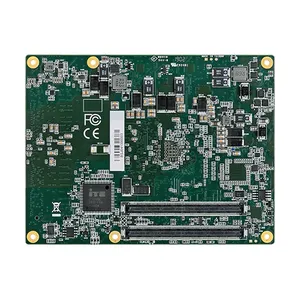

| 产品特性：工业主板 | 品牌：DFI | 型号：DV970 |
| 设备类型：工控电脑 |
Intel Atom® C3000 系列
双通道 DDR4 2400MHz SODIMM 至64GB
支持 基板管理控制器 功能
多重扩充讯号: 2 PCIe x 8, 2 SATA 3.0
丰富 I/O: 1 Intel 网口, 4 10Gbase-KR, 2 USB 3.0, 4 USB 2.0
15年CPU长期支持至Q4&＃39; 32 (Based on Intel IOTG Roadmap)
系统
处理器
Intel Atom® Processor C3000 Series, BGA1310
Intel Atom® C3958 Processor, 16 Cores, 16M Cache, 2.0GHz, 31W
Intel Atom® C3808 Processor, 12 Cores, 12M Cache, 2.0GHz, 25W
Intel Atom® C3708 Processor, 8 Cores, 16M Cache, 1.7GHz, 17W
内存
Two 260-pin ECC SODIMM up to 32GB
Dual Channel DDR4 2400MHz
(Memory max speed depends on CPU SKU)
BIOS
Insyde SPI 128Mbit
扩充
界面
Default:
B1: 2 x PCIe x2 or 2 x PCIe x1 (Gen 3)
B2: 1 x PCIe x2 (Gen 3) + 1 x PCIe x1 (Gen 2) or 2 x PCIe x1 (Lane 8 Gen 3, Lane 12 Gen 2)
B3: 1 x PCIe x8 or 2 x PCIe x4 or 2 x PCIe x2 or 2 x PCIe x1 (Gen 3)
Option 1:
B1: 1 x PCIe x8 or 2 x PCIe x4 or 2 x PCIe x2 or 2 x PCIe x1 (Gen 3)
B3: 2 x PCIe x2 or 2 x PCIe x1 (Gen 3)
B4: 2 x PCIe x2 or 2 x PCIe x1 (Gen 3)
1 x LPC
1 x I2C
1 x SMBus
2 x UART (TX/RX)
以太网路
控制器
PHY for X557 or CS4227/CS4223 and Controller for Intel® I210AT/Intel® I210IT
2 x Independent 10GbE Media Access Controller (Sku dependent)
Supports up to Two 10GBASE-KR Interfaces and Max up to Four 10GbE MAC Ports
Supports Intel® X557-AT/AT2/AT4 10GbE PHY
Supports Inphi CS4227 (2 port)/CS4223 (4 port)
(maximum bandwidth is 20Gb when 4 ports of 10G interface active at the same time)
1 x Intel® I210AT (10/100/1000Mbps) (normal temp.) or
1 x Intel® I210IT (10/100/1000Mbps) (wide temp.)
输入/输出
USB
2 x USB 3.0
4 x USB 2.0
SATA
2 x SATA 3.0 (up to 6Gb/s)
RAID 0/1/10
DIO
1 x 8-bit DIO (4 in, 4 out)
监视定时器
看门狗定时器
System Reset, Programmable via Software from 15 to 255 Seconds
安全性
信赖平台模块
Available Upon Request
电源
类型
12V, 5VSB, VCC_RTC (ATX mode)
12V, VCC_RTC (AT mode)
耗能
Typical: 12V @ 1.24A (14.88Watt)
Max.: 12V @ 2.26A (27.12Watt)
支持操作系统
支持操作系统
Windows Server 2012
Windows Server 2016
Yocto Project v1.8/v2.0
环境指标
温度
Operating: 0 to 60°C, -40 to 85°C
Storage: -40 to 85°C
湿度
Operating: 5 to 90% RH
Storage: 5 to 90% RH
MTBF
2180429 hrs @ 25°C; 1241904 hrs @ 45°C; 802692 hrs @ 60°C
Calculation model: Telcordia Issue 4
Environment: GB, GC – Ground Benign, Controlled
机械结构
尺寸
COM Express® Basic
95mm (3.74") x 125mm (4.9")
规范
PICMG COM Express® R3.0, Type 7
安规认证
认证
CE, FCC, RoHS
装箱单
装箱单
1 DV970 board
1 Cooler (Height: 47.80 mm)：Standard: A71-108101-000G, Wide Temp: A71-108101-010G
