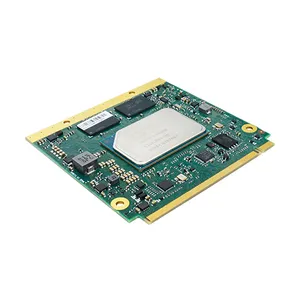

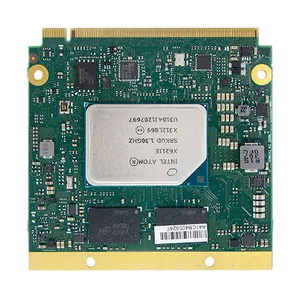

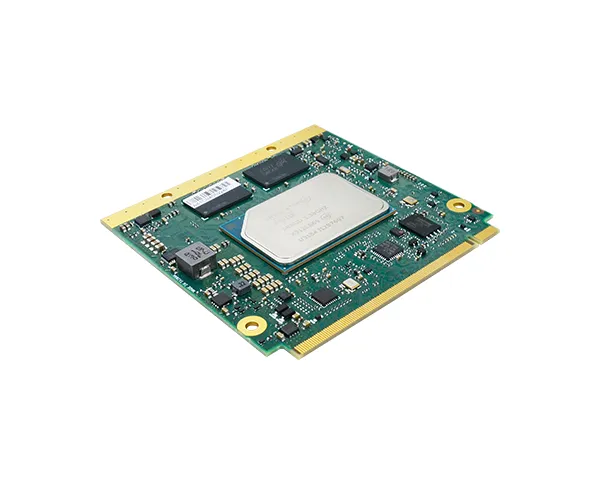

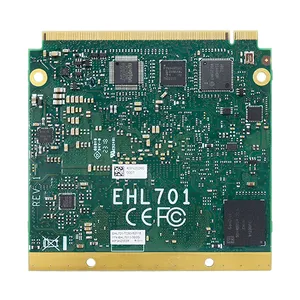

| 产品特性：工业主板 | 品牌：DFI | 型号：EHL701 |
| 设备类型：工控电脑 |
4GB/8GB/16GB LPDDR4 Dual Channel Memory Down
Dual Displays: 1 DDI* + 1 eDP/LVDS
DP++ resolution supports up to 4096x2160 @ 60Hz
Multiple expansions: 4 PCIe x1
Rich I/O: 1 Intel GbE, 2 USB 3.1, 8 USB 2.0
系统
处理器
Intel Atom® x6000 Series Processors
Intel Pentium® N and J Series Processors
Intel Celeron® N and J Series Processors
内存
4GB/8GB/16GB LPDDR4 Memory Down
Dual Channel LPDDR4 3200MHz
BIOS
AMI SPI 256Mbit (supports UEFI boot only)
显示
控制器
Intel® HD Graphics Gen9LP Series
特性
OpenGL 5.0, DirectX 12, OpenCL 2.1
HW Decode: AVC/H.264, MPEG2, VC1/WMV9, JPEG/MJPEG, HEVC/H.265, VP8, VP9, MVC
HW Encode: AVC/H.264, JPEG/MJPEG, HEVC/H.265, VP8, VP9, MVC
显示器
1 x DDI (HDMI/DVI/DP++)
1 x eDP/LVDS
HDMI: resolution up to 3840x2160 @ 30Hz
DP++: resolution up to 4096x2160 @ 60Hz
eDP: resolution up to 3840x2160 @ 60Hz
双重显示
eDP/LVDS + DDI
扩充
界面
4 x PCIe x1 (Gen 2)
1 x SDIO
1 x LPC
1 x I2C
1 x SMBus
1 x SPI
1 x UART (TX/RX)
音讯
界面
HD Audio
以太网路
控制器
1 x Intel I211
输入/输出
USB
1 x USB 3.1 + 8 x USB 2.0 / 2 x USB3.1 + 6 x USB 2.0
SATA
2 x SATA 3.0 (up to 6Gb/s)
eMMC
Supports up to 128GB eMMC, NC as default
eMMC 5.1, BGA-153 Ball 8~128G(MLC mode)
GPIO
1 x 4-bit GPIO
监视定时器
看门狗定时器
System Reset, Programmable via Software from 1 to 255 Seconds
安全性
信赖平台模块
dTPM or fTPM (Optional)
电源
类型
5V, 5VSB, VCC_RTC
耗能
Typical: x6212RE: 12V @ 0.98A (11.76W)
Max.: x6212RE:12V @ 1.45A (17.4W)
支持操作系统
微软
Windows 10 IoT Enterprise 64-bit
Linux
Linux (Intel graphic driver available)
环境指标
湿度
Operating: 5 to 90% RH
Storage: 5 to 90% RH
MTBF
773,944 hrs @ 25°C; 335,063 hrs @ 45°C;
138,841 hrs @ 60°C; 29,888 hrs @ 85°C
运作温度
0 to 60°C
-40 to 85°C
-5 to 65°C(opt.)
储存温度
-40 to 85°C
机械结构
尺寸
Qseven form factor
70mm (2.76") x 70mm (2.76")
规范
Qseven specification revision 2.1
安规认证
认证
CE, FCC Class B, RoHS, UKCA
装箱单
装箱单
• EHL701 Board
--770-EHL7011-000G
--770-EHL7011-100G
• Cooler
--A71-112000-030G
