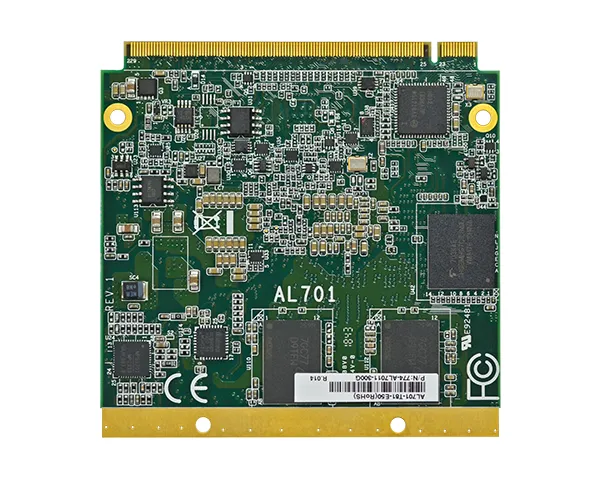

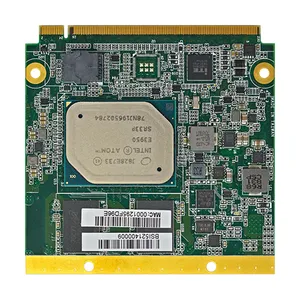

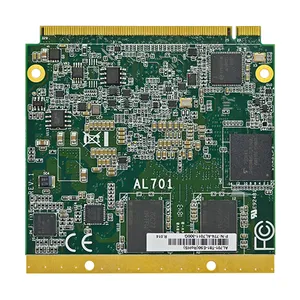

• 15-Year CPU Life Cycle Support Until Q4&＃39; 32 (Based on Intel IOTG Roadmap)

• Rich I/O: 1 Intel GbE, 1 USB 3.0, 8 USB 2.0

• Multiple expansions: 4 PCIe x1

• DP++ resolution supports up to 4096x2160 @ 60Hz

• 1 DDI*, 1 LVDS*/(eDP + DDI)；Supports triple displays: eDP+2DDI

• 4GB/8GB LPDDR4 Dual Channel Memory Down

系统

处理器

Intel Atom® Processor E3900 Series, BGA 1296
Intel Atom® x7-E3950 Processor, Quad Core, 2M Cache, 1.6GHz (2.0GHz), 12W
Intel Atom® x5-E3940 Processor, Quad Core, 2M Cache, 1.6GHz (1.8GHz), 9.5W
Intel Atom® x5-E3930 Processor, Dual Core, 2M Cache, 1.3GHz (1.8GHz), 6.5W
Intel® Pentium® Processor N4200, Quad Core, 2M Cache, 1.1GHz (2.5GHz), 6W
Intel® Celeron® Processor N3350, Dual Core, 2M Cache, 1.1GHz (2.4GHz), 6W

内存

4GB/8GB LPDDR4 Memory Down
Dual Channel LPDDR4 3200MHz

BIOS

AMI SPI 128Mbit (supports UEFI boot only)

显示

控制器

Intel® HD Graphics Gen9LP Series

特性

OpenGL 5.0, DirectX 12, OpenCL 2.1
HW Decode: AVC/H.264, MPEG2, VC1/WMV9, JPEG/MJPEG, HEVC/H.265, VP8, VP9, MVC
HW Encode: AVC/H.264, JPEG/MJPEG, HEVC/H.265, VP8, VP9, MVC

显示器

1 x DDI (HDMI/DVI/DP++)
1 x LVDS/(eDP+DDI) (DDI available upon request)
LVDS: NXP PTN3460, 24-bit, dual channel, resolution up to 1920x1200 @ 60Hz
HDMI: resolution up to 3840x2160 @ 30 Hz
DP++: resolution up to 4096x2160@60Hz
eDP: resolution up to 3840x2160 @ 60Hz

双重显示/三重显示

LVDS + DDI (Dual)
eDP + DDI (Dual)
eDP+2DDI (Triple) (available upon request)

扩充

界面

4 x PCIe x1 (Gen 2)
1 x SDIO (with LED)
1 x LPC
1 x I2C
1 x SMBus
1 x SPI
1 x UART (TX/RX)

音讯

界面

HD Audio

以太网路

控制器

1 x Intel® I211AT (10/100/1000Mbps) (0~60°C)
1 x Intel® I210IT (10/100/1000Mbps) (-40 to 85°C)

输入/输出

USB

1 x USB 3.0 + 8 x USB 2.0
3 x USB 3.0 + 4 x USB 2.0 (option)

SATA

2 x SATA 3.0 (up to 6Gb/s)

eMMC

Supports up to 32GB eMMC
eMMC 5.0, BGA-153 Ball 8~32G(MLC mode)

GPIO

1 x 4-bit GPIO

CANBus

CAN Bus Function (available upon request)

监视定时器

看门狗定时器

System Reset, Programmable via Software from 1 to 255 Seconds

安全性

固件信赖平台模块

Enables or Disables the BIOS support for the security device

电源

类型

5V, 5VSB, VCC_RTC

耗能

Typical: E3940: 12V @ 0.92A (11.04W)
Max.: E3940:12V @ 1.82A (21.84W)

支持操作系统

支持操作系统 (UEFI Only)

Windows 10 IoT Enterprise 64-bit
Linux (Intel graphic driver available)

环境指标

温度

Operating: 0 to 60°C, -40 to 85°C
Storage: -40 to 85°C

湿度

Operating: 5 to 90% RH
Storage: 5 to 90% RH

MTBF

2,261,043 hrs @ 25°C; 1,441,014 hrs @ 45°C; 975,882 hrs @ 60°C
740,273 hrs @ 70°C; 481,855 hrs @ 85°C
Calculation model: Telcordia Issue 4
Environment: GB, GC – Ground Benign, Controlled

机械结构

尺寸

Qseven form factor
70mm (2.76") x 70mm (2.76")

规范

Qseven specification revision 2.1

安规认证

认证

CE, FCC Class B, RoHS, UKCA

装箱单

装箱单

1 AL701 board
1 Heat sink: A71-008123-000G
