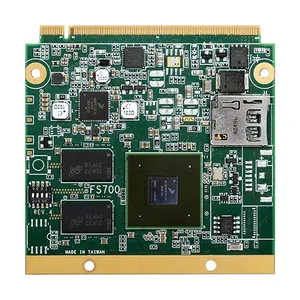

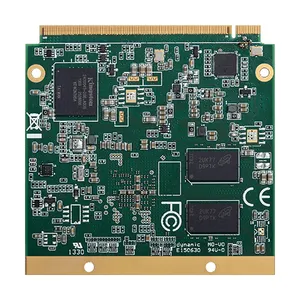

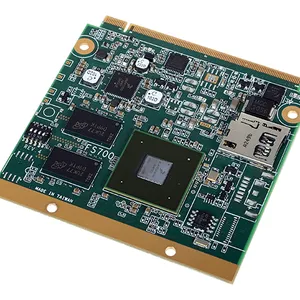

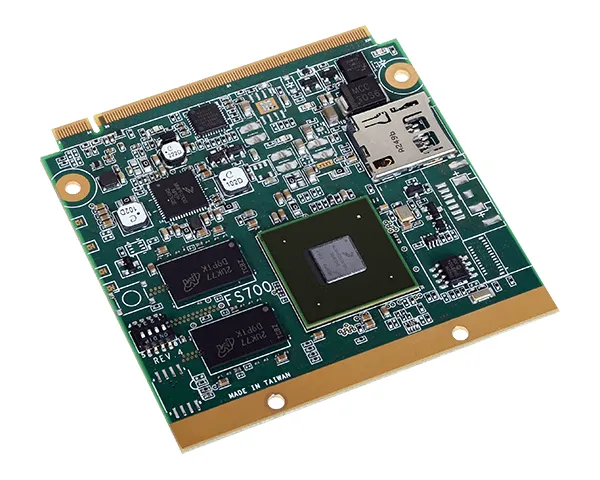

| 产品特性：工业主板 | 品牌：DFI | 型号：FS700 |
| 设备类型：工控电脑 |
NXP i.MX 6 系列
1GB/2GB DDR3 单信道 板载内存
1 HDMI, 2 LVDS
多重扩充讯号: 1 PCIe x1, 1 SATA 2.0, eMMC
丰富 I/O: 1 Intel 网口, 4 USB 2.0, 1 USB OTG
15年CPU长期支持至Q4&＃39; 27 (Based on NXP Roadmap)
系统
处理器
NXP i.MX 6 series processors
i.MX6Q: i.MX 6Quad, up to 1.0GHz, Four Cortex-A9 cores
i.MX6D: i.MX 6Dual, up to 1.0GHz, Two Cortex-A9 cores
i.MX6L: i.MX 6DualLite, up to 1.0GHz, Two Cortex-A9 cores
i.MX6S: i.MX 6Solo, up to 1.0GHz, One Cortex-A9 core
内存
1GB/2GB Single Channel DDR3 Memory Onboard
显示
特性
OpenCL, OpenVG 1.1 and 1080p/720p decoder/encoder
显示器
1 x HDMI
2 x LVDS
HDMI: HDMI v1.4, resolution up to 1920x1200 @ 60Hz
LVDS: 18/24-bit
- One port up to 165 Mpixels/sec (e.g. 2560x1600 @ 60Hz)
- Two ports up to 85 Mpixels/sec (e.g. WUXGA+ @ 60Hz) each
扩充
界面
1 x PCIe x1
2 x I2C
1 x Serial (RS232)
1 x SMBus
1 x CAN-Bus
1 x SDIO
音讯
界面
I2S interface
以太网路
控制器
1 x Atheros AR8033 (10/100/1000Mbps)
输入/输出
USB
4 x USB 2.0
Supports 1 USB OTG (Type B) interface
SATA
1 x SATA 2.0
(Quad and Dual processors only)
eMMC
1 x 4GB*/8GB/16GB eMMC
监视定时器
看门狗定时器
System Reset, Programmable via Software from 1 to 255 Seconds
电源
类型
Input: 5V
耗能
Under 5W @ 5V
支持操作系统
支持操作系统
LTIB Linux 3.0.35
Android 4.3 (Default Preloaded)
- Quad, Dual and DualLite processors only
环境指标
温度
Operating: -20°C to 70°C
Storage: -30°C to 80°C
湿度
Operating: 10 to 90% RH
Storage: 10 to 90% RH
MTBF
588,701 hrs @ 25°C; 480,691 hrs @ 45°C; 381,628 hrs @ 60°C
Calculation model: Telcordia Issue 2
Environment: GB, GC – Ground Benign, Controlled
机械结构
尺寸
Qseven form factor 70mm (2.76") x 70mm (2.76")
规范
Qseven specification revision 1.2
装箱单
装箱单
1 FS700 M60 Board
1 Heat spreader (for temperature -20°C to 70°C only)
