| 产品特性：工业主板 | 品牌：DFI | 型号：SMX331 |
| 设备类型：工控电脑 |

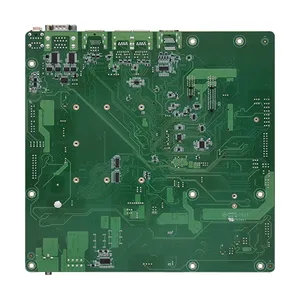

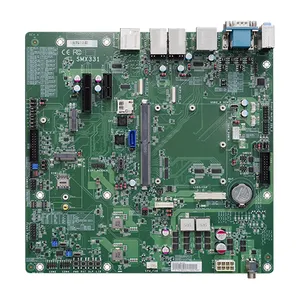

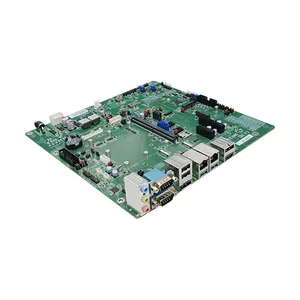

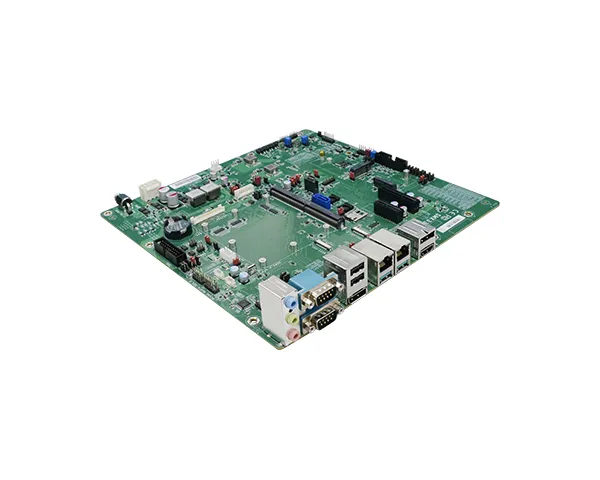

SMARC® V2.2 Carrier Board, microATX Form Factor
Multiple Expansion: 1 PCIe x4, 1 PCex1, 1 M.2 E Key 2230, 1 M.2 B key 3042/52
Rich I/O: 2 2.5 GbE, 2 USB 3.2 (Gen1), 2 USB 2.0
显示
显示器
1 x HDMI
1 x LVDS/eDP (eDP available upon request)
2 x DP
扩充
界面
1 x PCIe x4
1 x PCIe x1
1 x M.2 E Key 2230
1 x M.2 B Key 3042/3052
1 x micro SD card
音讯
音讯编译码器
Realtek ALC888S-VD2-GR

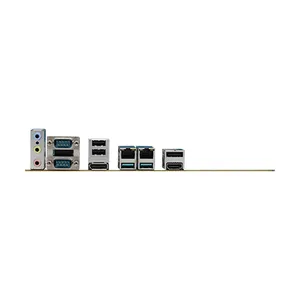

输入/输出
以太网络
2 x 2.5GbE (RJ-45)
串口
2 x RS232
USB
2 x USB 3.2 (Gen1)
2 x USB 2.0
屏幕
2 x DP
音源
1 x Line-in
1 x Line-out
1 x Mic-in
内部输入/输出
串行端口
2 x Serial Interface Connector (TX/RX)
USB
2 x USB 2.0 (M.2 B Key & M.2 E Key support)
显示
1 x eDP/LVDS LCD Connector
1 x LCD/Inverter Power
音效
1 x Audio (Line-out/Mic-in)
1 x S/PDIF
SATA
1 x SATA 3.0 (up to 6Gb/s)
DIO
1 x 14-bit DIO
SMBus
1 x SMBus
CANBus
2 x CAN bus
I2C
1 x I2C
其他 输入/输出
MIPI-CSI: 1 x 4-lanes MIPI-CSI + 1 x 2-lanes MIPI-CSI
eSPI
1 x eSPI
SPI
1 x SPI
电源
类型
1 x 8-pin ATX power connector (12V DC_In)
9V-36V DC-in jack
端口
1 x 8-pin ATX power connector
1 x DC-in jack
RTC 电池
CR2032 Coin Cell
环境指标
温度
Operating: -40 to 85°C
Storage: -40 to 85°C
湿度
Operating: 5 to 90% RH
Storage: 5 to 90% RH
MTBF
TBD
机械结构
尺寸
microATX Form Factor
244mm (9.6") x 244mm (9.6")
规范
SMARC V2.2
安规认证
认证
CE, FCC, RoHS
装箱单
装箱单
• 1 SMX331 board
