| 产品特性：工业主板 | 品牌：DFI | 型号：COM336 |
| 设备类型：工控电脑 |

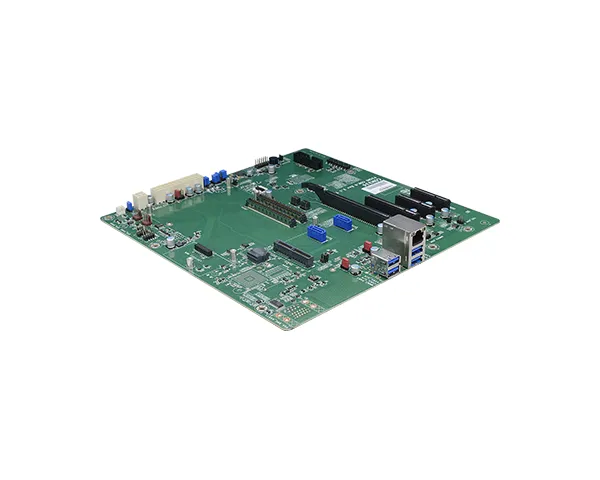

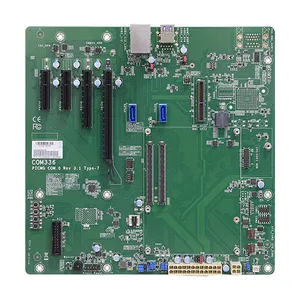

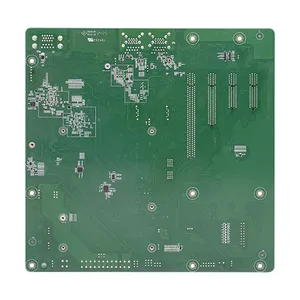

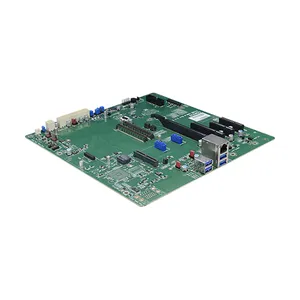

PICMG COM Express® R3.1, Type 7 basic & compact modules
1 CEI 10Gb LAN Mini MEZZ slot, support 10GBASE-KR Ethernet MAC Speed
Multiple Expansion: 1 PCIe x8, 2 PCIe x4, 1 PCIe x16, 1 SDIO
Rich I/O: 1 10G LAN, 2 1G LAN, 4 USB 3.2 type A, 4 USB 2.0, 2 SATA 3.0
扩充
界面
1 x PCIe x8
2 x PCIe x4
1 x PCIe x16
1 x SDIO

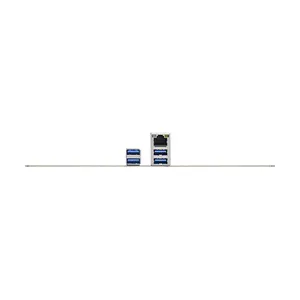

输入/输出
以太网络
1 x CEI 10Gb LAN Mini MEZZ slot, support 10GBASE-KR Ethernet MAC Speed
2 x 1GbE LAN (RJ-45) (one from module; another from BMC for remote management)
USB
4 x USB 3.2 type A
4 x USB 2.0
内部输入/输出
串行端口
1 x Serial Interface Connector (TX/RX)
显示
1 x VGA from BMC
SATA
2 x SATA 3.0
DIO
1 x 8-bit DIO
LPC
1 x LPC
SMBus
1 x SMBus
I2C
1 x I2C
电源
类型
12V, 5VSB, VCC_RTC (ATX mode)
12V, VCC_RTC (AT mode)
端口
4-pin ATX 12V power
24-pin ATX power
RTC 电池
CR2032 Coin Cell
环境指标
温度
Operating: -20 to 70°C
Storage: -40 to 85°C
湿度
Operating: 5 to 90% RH
Storage: 5 to 90% RH
MTBF
TBD
机械结构
尺寸
microATX Form Factor
244mm (9.6") x 244mm (9.6")
规范
PICMG COM Express® R3.1, Type 7 basic & compact modules
安规认证
认证
CE, FCC, RoHS
装箱单
装箱单
• 1 COM336 board
• 1 Serial ATA data cable (Length: 500mm), 332-553001-005G
• Standoff (M2.5*12), A33-525019-A20G
基板管理控制器
处理器
AST2500 (non-BMC sku optional by request)
SDRAM
8Gb memory down
DDR4 2400 512M x16 SDRAM
显示
Through BMC to convert VGA signal
VGA display resolution up to 1920x1200
以太网路
RTL8211F LAN PHY
Support 10/100/1000M Ethernet MAC Speed
RJ45 x1
UART
COM port protocol: RS232
Connector type: DB9
SMBus
(for slave) From COMe BTB connector reserve pin
