| 产品特性：工业主板 | 品牌：DFI | 型号：COM332-B(R.B1) |
| 设备类型：工控电脑 |

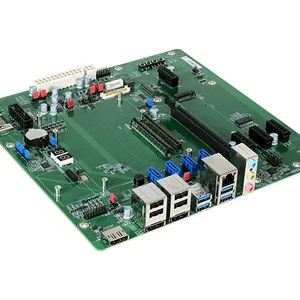

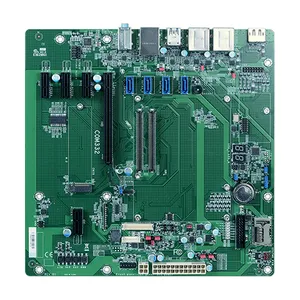

COM Express® R2.1, Pin-out Type 6
Supports Compact and Basic modules
Multiple displays: VGA, LVDS, DP, eDP
Rich I/O: 1 GbE, 4 USB 3.1, 4 USB 2.0
microATX form factor
显示
显示器
1 x VGA
1 x LVDS/eDP (eDP available upon request)
3 x DP
1 x eDP/LVDS (LVDS available upon request)
扩充
界面
1 x PCIe x16
4 x PCIe x1
1 x M.2 M Key 2280
1 x SDIO
音讯
音讯编译码器
Realtek ALC888S-VD2-GR

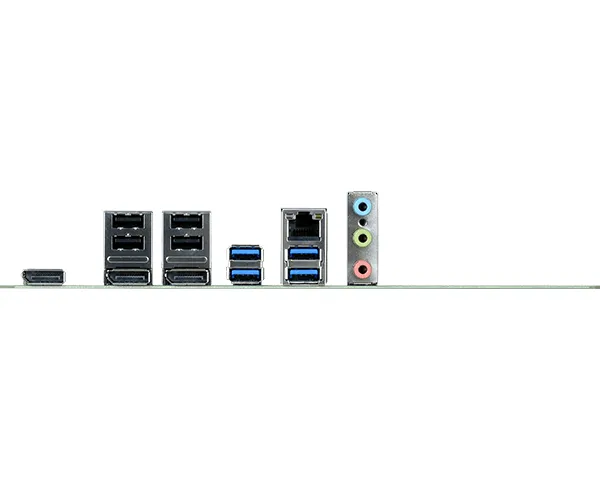

背板输入/输出
以太网络
1 x GbE (RJ-45)
USB
4 x USB 3.1 (Gen2)
4 x USB 2.0
显示
3 x DP
音源
1 x Line-in
1 x Line-out
1 x Mic-in
内部输入/输出
串行端口
2 x Serial Interface Connector (TX/RX)
显示
1 x VGA (2.54mm)
1 x LVDS LCD Panel Connector
1 x LCD/Inverter Power
1 x eDP LCD Panel Connector
音效
1 x Audio (Line-out/Mic-in)
1 x S/PDIF
SATA
4 x SATA 3.0 (up to 6Gb/s)
DIO
1 x 8-bit DIO
LPC
1 x LPC
SMBus
1 x SMBus
电源
类型
12V, 5VSB, VCC_RTC (ATX mode)
12V, VCC_RTC (AT mode)
端口
4-pin ATX 12V power
24-pin ATX power
RTC 电池
CR2032 Coin Cell
环境指标
温度
Operating: 0 to 60°C
Storage: -40 to 85°C
湿度
Operating: 5 to 90% RH
Storage: 5 to 90% RH
MTBF
488,117 hrs @ 25°C; 253,684 hrs @ 45°C; 136,621 hrs @ 60°C
Calculation Model: Telcordia Issue 2, Method Case 3
Environment: GB, GC – Ground Benign, Controlled
机械结构
尺寸
microATX Form Factor
244mm (9.6") x 244mm (9.6")
规范
PICMG COM Express® R2.1, Type 6
Basic, Compact Modules
安规认证
认证
CE, FCC, RoHS
装箱单
装箱单
1 COM332-B(R.B1) board
1 Serial ATA data cable (Length: 500mm): 332-553001-005G
1 VGA cable: A81-012000-000G
