| 产品特性：工业主板 | 品牌：DFI | 型号：COM333-I |
| 设备类型：工控电脑 |

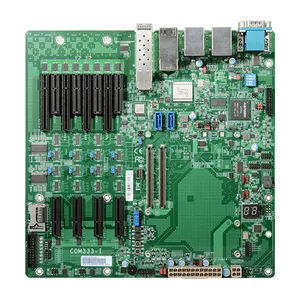

COM Express® R3.0, Pin-out Type 7
支援 Compact and Basic 模块
多重扩充讯号: 8 PCIe x4 or 4 PCIe x8, 2 SATA 3.0
丰富 I/O: 2 网口, 4 10Gbase-KR, 4 USB 3.0/2.0, 1 串口
microATX form factor
扩充
界面
B1: 2 x PCIe x4 or 1 x PCIe x8 (Gen 3)
B2: 2 x PCIe x4 or 1 x PCIe x8 (Gen 3)
B3: 2 x PCIe x4 or 1 x PCIe x8 (Gen 3)
B4: 2 x PCIe x4 or 1 x PCIe x8 (Gen 3)

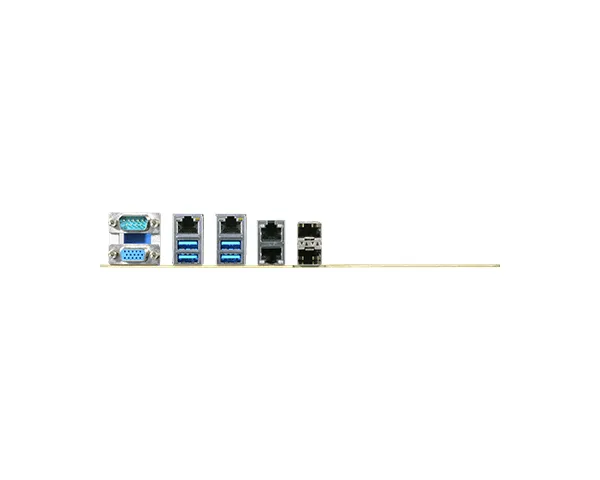

背板输入/输出
以太网络
4 x 10GbE LAN (2 x SFP+, 2 x RJ-45) by 10GBASE-KR interface
2 x 1GbE LAN (RJ-45) (one from module; another from BMC for remote management)
串口
1 x RS-232 (DB-9) (supports by BMC which default is debug port and may switch to normal RS-232)
USB
4 x USB 3.0/2.0
内部输入/输出
串行端口
2 x Serial Interface Connectors (TX/RX) (2.0mm pitch)
SATA
2 x SATA 3.0 (up to 6Gb/s)
DIO
1 x 8-bit DIO (4 input, 4 output)
1 x SDIO (conditionally available)
LPC
1 x LPC
SMBus
1 x SMBus
I2C
1 x I2C
电源
端口
4-pin ATX 12V power
24-pin ATX power
电池
CR2032 Coin Cell
环境指标
温度
Operating: 0 to 60°C
Storage: -40 to 85°C
湿度
Operating: 5 to 90% RH
Storage: 5 to 90% RH
MTBF
246,013 hrs @ 25°C; 121,445 hrs @ 45°C; 68,565 hrs @ 60°C
46,970 hrs @ 70°C
Calculation model: Telcordia Issue 4
Environment: GB, GC – Ground Benign, Controlled
机械结构
尺寸
microATX Form Factor 244mm (9.6") x 244mm (9.6")
规范
PICMG COM Express® R3.0, Type 7 Basic, Compact Modules
装箱单
装箱单
1 COM333-I board
1 Serial ATA data cable (Length: 500mm): 332-553001-005G
Standoff (M2.5*12) (for compact size module): A33-525019-A20G
基板管理控制器
特性
1. IPMI 2.0
2. Web Browser Support
3. Web Interface
4. iKVM (keyboard, video, and mouse)
5. Virtual Media
6. 3rd Party Authentication
7. Firmware Update
8. SMASH/CLP
9. WS-MAN
10. Network Service
处理器
AST2500
SDRAM
DDR4-2400 1200MHz 8Gb memory down
显示
Through BMC to convert VGA signal
VGA: resolution up to 1920 x 1200 x 32bpp (share with SOC 16MB memory)
