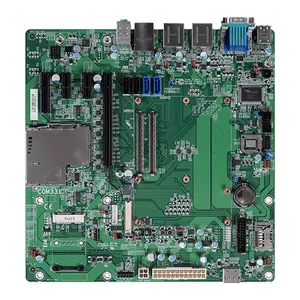

| 产品特性：工业主板 | 品牌：DFI | 型号：COM331-B |
| 设备类型：工控电脑 |

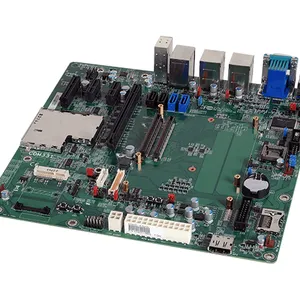

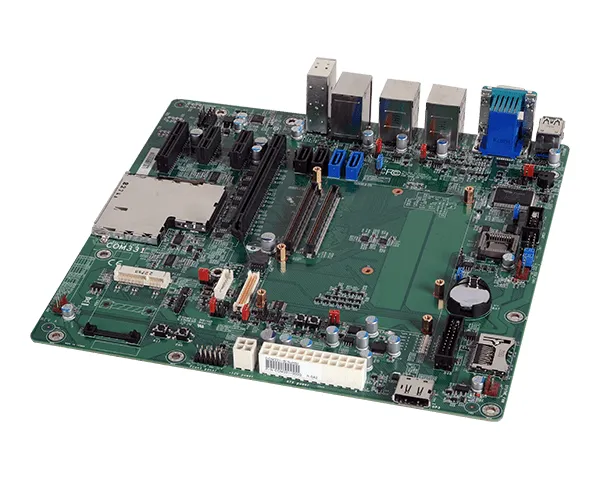

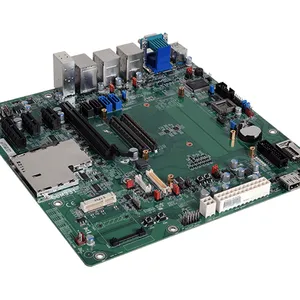

COM Express® R2.0, Pin-out Type 6
支援 Compact/Basic 模块
多重显示: 1 LVDS, 1 VGA, 3 DP
丰富 I/O: 1 网口, 4 USB 3.0, 4 USB 2.0, 4 串口
microATX form factor
显示
显示器
1 x VGA
1 x LVDS
3 x DP
扩充
界面
1 x PCIe x16 (Gen 3)
1 x PCIe x4 (Gen 2)
2 PCIe x 1
1 x Full-size Mini PCIe
音讯
音讯编译码器
Realtek ALC886

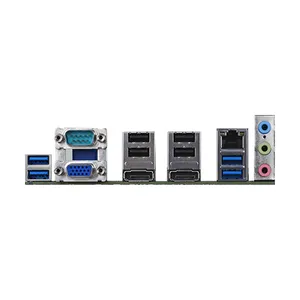

背板输入/输出
以太网络
1 x GbE (RJ-45)
串口
1 x RS232 Serial Interface Connector
2 x Serial Interface Connector (TX/RX)
1 x RS232 serial ports
USB
4 x USB 3.0
4 x USB 2.0
显示
1 x VGA
2 x DP
音源
1 x Line-in
1 x Line-out
1 x Mic-in
内部输入/输出
串行端口
1 x RS232 Serial Interface Connector
2 x Serial Interface Connector (TX/RX)
显示
1 x VGA (2.54mm)
1 x LVDS LCD Panel Connector
1 x DP
音效
1 x Audio (Line-out/Mic-in)
1 x S/PDIF
SATA
2 x SATA 3.0 (up to 6Gb/s)
2 x SATA 2.0 (up to 3Gb/s)
DIO
1 x 8-bit DIO
1 x SDIO slot
LPC
1 x LPC
SMBus
1 x SMBus
I2C
1 x I2C
电源
类型
12V, 5VSB, VCC_RTC (ATX mode) 12V, VCC_RTC (AT mode)
端口
4-pin ATX 12V power 24-pin ATX power
环境指标
温度
Operating: 0 to 60°C
Storage: -20 to 85°C
湿度
Operating: 5 to 90% RH
Storage: 5 to 90% RH
MTBF
605684 hrs @ 25°C; 352242 hrs @ 45°C; 222850 hrs @ 60°C
Calculation model: Telcordia Issue 4
Environment: GB, GC – Ground Benign, Controlled
机械结构
尺寸
microATX Form Factor 244mm (9.6") x 244mm (9.6")
规范
PICMG COM Express® R2.0, Type 6 Basic, Compact Modules
安规认证
认证
CE, FCC Class B, RoHS
装箱单
装箱单
1 COM331-B board
2 Serial ATA data cables
1 COM port cable (with bracket)
