| 产品特性：工控机 | 品牌：DFI | 型号：EB100-MTU |
| 设备类型：工控电脑 |

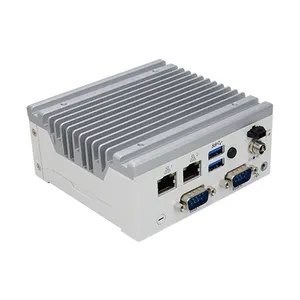

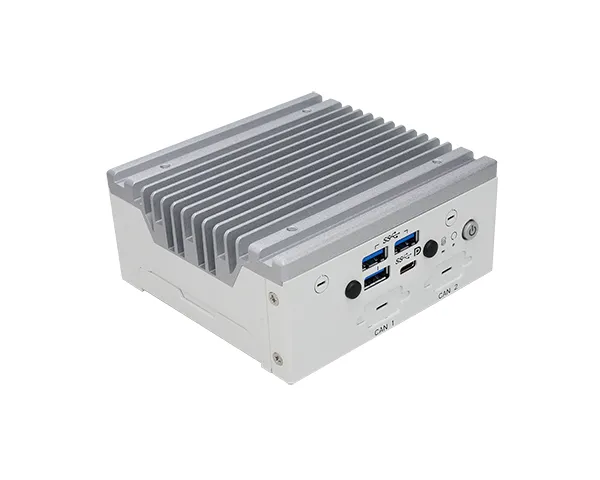

Industrial NUC compact system
Intel® Ultra 5 125U / Ultra 7 155U CPU (TDP 12W)
One DDR5 SODIMM, up to 32GB
Up to -20°C~50°C operation with passive cooling, 12VDC power in
Ultra compact size (W x H x D): 111 x 50 x 106 mm
Supports M.2 2230 E-Key/M.2 2280 M-Key, Storage: M.2 2280 M-key (NVME)
I/O: 2 2.5GbE (TSN/TCC), 4 USB 3.2, 2 Type-C, 1 DB9 (RS232/422/485), 1 DB9 (RS232)
Supports M.2 Hailo AI accelerator card(M.2 E key, optional)
系统
处理器
Intel® Core™ Ultra Processor (Meteor Lake: U-series)
• for Fanless
Intel® Core™ Ultra 7 155U (2 P-Cores x 1.7 GHz, 8 E-Cores x 1.2 GHz, 12 MB cache, 12W)
Intel® Core™ Ultra 5 125U (2 P-Cores x 1.3 GHz, 8 E-Cores x 0.8 GHz, 12 MB cache, 12
内存
1x 262-pin SODIMM up to 32GB
Single Channel DDR5 5600MHz
BIOS
AMI SPI 256Mbit
显示
控制器
Intel® Arc™ Graphics
显示器
EB100-MTU2041
2 x USB-C DP Alt. mode
EB100-MTU2050
1 x USB-C DP Alt. mode
DP: resolution up to 4096x2304@60Hz
储存
内插
1 x M.2 2280 M key (PCIe x4)
扩充
界面
1 x M.2 2230 E Key (PCIe/USB2.0)
以太网路
控制器
2 x Intel® I226IT
LED
指示灯
1 x Power LED
1 x Storage LED
前板输入/输出
USB
EB100-MTU2041
2 x USB3.2(Gen2x1)
2 x USB-C(support DP Alt. Mode)

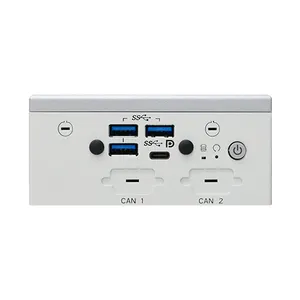

EB100-MTU2050
3 x USB3.2(Gen2x1)
1 x USB-C(support DP Alt. Mode)
按键
1 x Power button
1 x Reset button

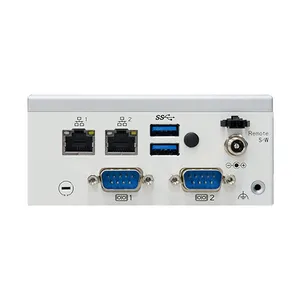

背板输入/输出
以太网络
2 x Intel® I226IT (10/100/1000/2500Mbps)
串口
1 x RS232/422/485 (default RS232, BIOS selectable)
1 x RS232
USB
2 x USB 3.2(Gen2x1)
CANBus
(Optional)
2 x CAN Bus port (D-SUB9 connector)
监视定时器
看门狗定时器
System Reset, Programmable via Software from 1 to 255 Seconds
电源
端口
DC Jack (5.5 x 2.5 mm)
电压
DC 12V
支持操作系统
支持操作系统
Windows 10 IoT Enterprise 64-bit
Windows 11
环境指标
运作温度
• for Fanless
(CPU TDP 12): -20 to 50°C (wide-temp M.2 SSD)
储存温度
-20 to 85°C
相对湿度
5 to 95% RH (non-condensing)
机械结构
结构
Aluminum + Metal Aluminum
安装方式
Wall/VESA rail mount
尺寸 (宽 x 高 x 深)
• for Fanless
111mm x 50mm x 106mm
重量
TBD
安规认证
冲击测试
Operating:
IEC 60068-2-27 Test Ea: Shock Test
Half-Sine, 3G @ 11ms, 18 Shock ±X, ±Y, ±Z (each axis 3 times)
抗振动测试
Operating:
IEC 60068-2-64 Test Fh: Vibration Board-Band Random Test
Random, 1Grms @ 5~500 Hz, 30min
Non-Operating:
IEC 60068-2-6 Test Fc: Vibration Sinusoidal Test
Sweep Sine, 3Grms @ 10~500Hz, 30min
认证
CE, FCC Class A, RoHS
