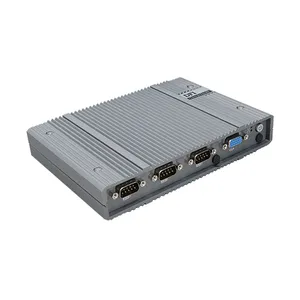

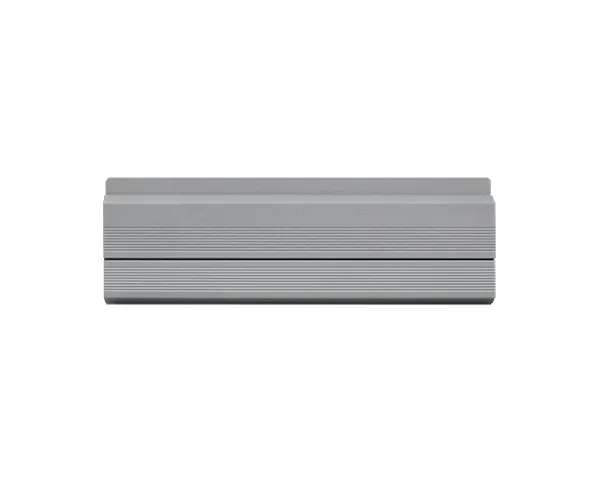

| 产品特性：工控机 | 品牌：DFI | 型号：EC700-ADN/EC710-ADN |
| 设备类型：工控电脑 |
Intel® Processor N-series/Atom® Processor X Series
On Board OOB built-in
Slim and fanless design for limited-space condition
Intel TCC within the system
On Board DDR5 Support
Up to Quad Display Support via HDMI/USB-C/VGA, Quad display support by Dev
Support OOB
系统
处理器
EC700-ADN
Intel Alder Lake-N Series
Intel PC Client Series
Intel® Processor N50 2 Cores, 1.0GHz to 3.4 GHz
Intel® Processor N97 4 Cores, 2.0GHz to 2.9 GHz
Intel® Processor N200 4 Cores, 1.0GHz to 3.2 GHz
Intel® Embedded Series (Support TCC)
Intel® Atom® X7211E 2 Cores, 1.0GHz to 2.9 GHz
Intel® Atom® X7213E 2 Cores, 1.7GHz to 2.9 GHz
Intel® Atom® X7425E 4 Cores, 1.5GHz to 2.7 GHz
*TCC default disable in BIOS setting
EC710-ADN
Intel Alder Lake-N Series
Intel PC Client Series
Intel® Core™ i3-N305 8 Cores, 1.0GHz to 3.0 GHz
(TDP 15W by conditional support)
内存
8GB/16GB LPDDR5 4800 Memory down
BIOS
AMI SPI 256Mbit (supports UEFI boot only)
显示
控制器
Intel® UHD Graphics
特性
Execution Units: Up to 32 EUs
3D API: Open GL 4.6, DirectX12, Vulkan 1.2 (Windows) / Mesa 3D,OpenGL 4.6, Vulkan 1.2 (Linux)
Precision: FP32, FP16, INT8
Compute: OpenCL 3.0
显示器
1 x VGA
1 x HDMI 1.4
1 x USB-C (DP1.2 Alt. Mode)
储存
内插
1 x M.2 2280 M key (PCIe Gen3/SATA)
*A heatsink & a thermal pad are required.
扩充
界面
1 x M.2 2230 E key (USB 2.0/PCIe, support CNVi)
1 x M.2 3042/3052 B key: USB3.0/USB2.0/PCIe with SIM
1 x M.2 2242/2280 M key (*PCIe/SATA)
*PCIe: PCIex2 support by project
音讯
音讯编译码器
REALTEK ALC888S
以太网路
控制器
2 x Intel Ethernet controller i226 2.5GbE (TSN support by project)
1 x Intel Ethernet controller i210 GbE (support DFI OOB function)
LED
指示灯
1 x Power LED
1 x Storage LED
前板输入/输出
串口
COM 1/2: RS232/422/485
COM 3: RS232
显示
1 x VGA
按键
1 x Power Button
1 x Reset Button
天线
2 x antenna holes
背板输入/输出
以太网络
2 x 2.5GbE RJ45
1 x GbE RJ45 (support DFI OOB)
串口
COM 4: RS232/DIO
USB
3 x USB 3.2 type A + 1 x USB-C 3.2
显示
1 x HDMI
音源
1 x 3.5mm Line out/Mic In
天线
2 x antenna holes
监视定时器
看门狗定时器
System reset, programmable via software from 1 to 255 seconds
安全性
信赖平台模块
TPM 2.0 Support
电源
类型
Wide range 9~36VDC
端口
2.5mm DC Jack
RTC 电池
RTC battery CR2032
支持操作系统
微软
Windows® 10 IoT Enterprise
Windows® 11 IoT Enterprise
Linux
Ubuntu 22.04
环境指标
运作温度
-5 to 60°C with 0.2m/s air flow
储存温度
-40 to 85°C
相对湿度
10 to 90% RH (non-condensing)
机械结构
结构
Aluminum + Metal
安装方式
Wall mount/VESA Mount/DIN-Rail
尺寸 (宽 x 高 x 深)
EC700-ADN
180 x 33 x 127.8 mm
EC710-ADN
180 x 43 x 127.8 mm
重量
EC700-ADN
TBD
EC710-ADN
TBD
安规认证
冲击测试
(During Operation)
30G, IEC-60068-2-27
MIL-STD-810G
抗振动测试
(During Operation)
3 Grms, IEC 60068-2-64
MIL-STD-810G
认证
EC700-ADN
CE, FCC, RoHS, UKCA, KC
EC710-ADN
CE, FCC, RoHS, UKCA
装箱单
装箱单
· 1 System unit
