| 产品特性：工控机 | 品牌：DFI | 型号：ED700-EHL/ED700-EHL22I |
| 设备类型：工控电脑 |

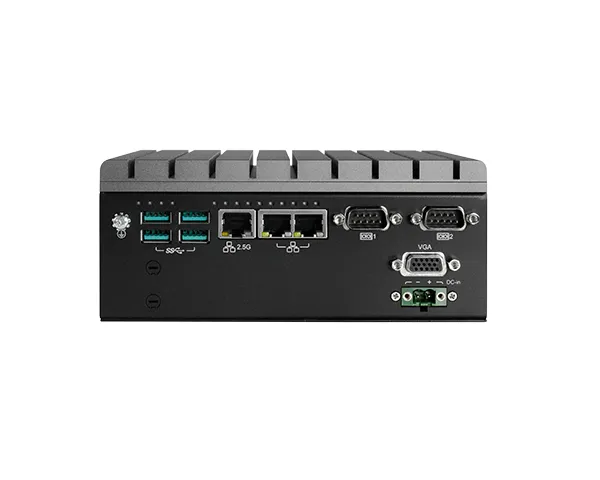

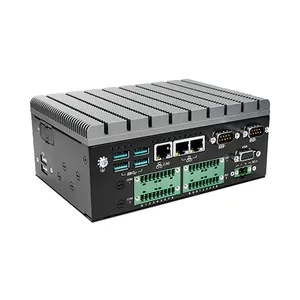

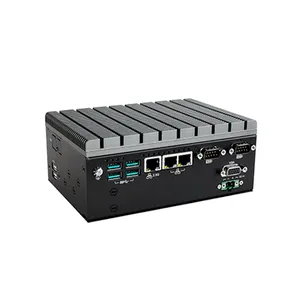

Intel® Atom® Processors X Series Fanless Embedded System
Support 5G Sub-6 module
Support WiFi 6 module
4 LAN: Support 1 x 2.5GbE TSN , 3 x GbE LAN
Wide Operating Temperature: Support up to -40 ~ 60°C (Intel® Embedded Series)
Support ***lated COM & DIO
15-Year CPU Life Cycle Support Until Q1&＃39; 36 (Based on Intel IOTG Roadmap)
系统
处理器
Intel® Atom® Processors X Series, BGA 1493
Intel PC Client Series
Intel® Celeron® J6412 4 cores, 2.0 to 2.6 GHz, TDP 10W
Intel® Celeron® J6413 4 cores, 1.8 to 3.0 GHz, TDP 10W
Intel® Embedded Series
Intel® Atom® x6211E 2 cores, 1.3 to 3.0 GHz, TDP 6.5W
Intel® Atom® x6413E 4 cores, 1.5 to 3.0 GHz, TDP 9W
Intel® Atom® x6425E 4 cores, 2.0 to 3.0 GHz, TDP 12W
Intel® Atom® x6425RE 4 cores, 1.9 GHz, TDP 12W
内存
4GB/8GB DDR4 Memory onboard
One 260 pin DDR4 SODIMM up to 3200MHz
Total Memory up to 32GB
(in-band ECC support in embedded/industrial SKU)
BIOS
AMI SPI 256Mbit (supports UEFI boot only)
显示
控制器
Intel® UHD Graphics for 10th Gen Intel® Processors
特性
OpenGL 4.5, DirectX 12, Open CL 1.2, Vulkan 1.1
HW Decode: AVC/H.264, MPEG2, VC1/WMV9, JPEG/MJPEG, HEVC/H.265, VP8, VP9
HW Encode: AVC/H.264, JPEG/MJPEG, HEVC/H.265, VP9
显示器
1 x VGA (resolution up to 2560x1600@60Hz)
1 x DP (Opt. in rear side, resolution up to 4096x2160 @ 60Hz)
储存
内插
1 x M.2 2280 (SATA)
eMMC
eMMC 16GB/32GB
扩充
界面
1 x M.2 2230 (USB/PCIe)
1 x M.2 3042/3052 (USB 3.0/PCIe) with dual SIM
音讯
音讯编译码器
Realtek ALC888
以太网路
控制器
2 or 3 x Intel® Ethernet Controller I210/I211 GigE LAN
1 x Intel® Ethernet 2.5GigE LAN
LED
指示灯
1 x Power LED
1 x HDD LED
1 x WiFi LED
1 x 4G/5G LED
2 x COM LED
8 x DIO LED

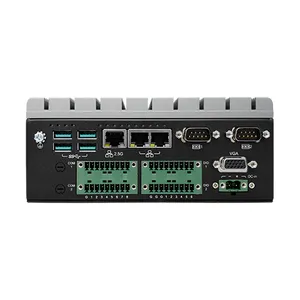

前板输入/输出
以太网络
2 or 3 x GbE (RJ-45) (configuration options)
1 x 2.5GbE TSN RJ45
1 x Allxon OOB Enabler (by request)
串口
2 x RS232/422/485
2 x ***lated COM and 1x 6bit DI & 1x 6bit DO (support 2KV, ED700-EHL22I Only)
USB
2 or 4 x USB 3.1 (configuration options)
显示
1 x VGA
DIO
8-bit DIO (jumper switch to COM)
12-bit ***lated DIO (support 2KV, ED700-EHL22I only)
天线
2 x antenna opening for WiFi

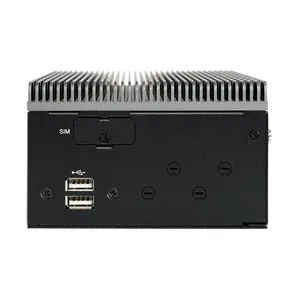

上板输入/输出
USB
2 x USB 2.0
天线孔
4 x antenna opening for 4G/5G/GPS
SIM卡槽
Dual SIM
监视定时器
看门狗定时器
System reset, programmable via software from 1 to 255 seconds
安全性
信赖平台模块
TPM 2.0 (configuration options)
电源
类型
Wide range 9~36V
端口
3-pole terminal block 2-pin power extension switch onnector
RTC 电池
RTC battery CR2032
支持操作系统
微软
Windows 10 IoT Enterprise 64 Bit
Linux
Ubuntu 20.04
环境指标
运作温度
0 to 60°C
-40 to 60°C (Support by Intel® Embedded Series)
储存温度
-40 to 85°C
相对湿度
10 to 90% RH (non-condensing)
机械结构
尺寸
72 x 172 x 118.2 (mm)
结构
Aluminum + Metal
安装方式
Wall/DIN rail mount
重量
ED700-EHL: 1.5kg
ED700-EHL22I: 1.6kg
安规认证
冲击测试
Operating: 3G, 11ms
Non-Operating: 5G, 11ms
抗振动测试
Operating: Random 5~500Hz, IEC68-2-64 (3G)
Non-Operating: Sine 10~500Hz, IEC68-2-6 (3G)
认证
CE, FCC, RoHS, UKCA
装箱单
装箱单
1 System unit
2 Wall mount bracket
1 Quick Installation Guide
1 Terminal connector to DC cable
