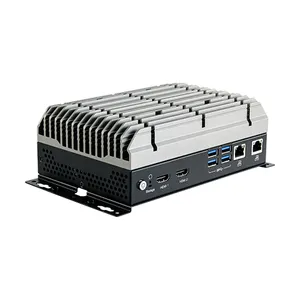

• 8th/9th Gen Intel® Core™ Processors with Intel® C246/Q370/H310 Chipset

• Two DDR4 SODIMM up to 64GB

• Single/Triple storage: 1 x M.2 SSD + 2 x 2.5" SSD (configured option) (with RAID supported)

• Rich I/O connectivity: 2 Intel GbE, 4 USB 3.1, 2 USB 2.0, 2 COM

• 2 HDMI 2.0 Support resolution 4K@60Hz

• 15-Year CPU Life Cycle Support Until Q2&＃39; 34 (Based on Intel IOTG Roadmap)

系统

处理器

9th Gen Intel® Core™ Processors, LGA 1151 Socket
Intel® Core™ i7-9700TE Processor (8C/8T, 12M Cache, 3.6GHz, TDP 35W)
Intel® Core™ i5-9500TE Processor (6C/6T, 9M Cache, 3.6GHz, TDP 35W)
Intel® Core™ i3-9100TE Processor (4C/4T, 6M Cache, 3.2GHz, TDP 35W)
8th Gen Intel® Core™ Processors, LGA 1151 Socket
Intel® Core™ i7-8700T Processor (6C/12T, 12M Cache, 4.0GHz; TDP 35W)
Intel® Core™ i5-8500T Processor (6C/6T, 9M Cache, 3.5GHz; TDP 35W)
Intel® Core™ i3-8100T Processor (4C/4T, 6M Cache, 3.1GHz; TDP 35W)
Intel® Pentium® G5400T Processor (2C/4T, 4M Cache, 3.1GHz; TDP 35W)
Intel® Celeron® G4900T Processor (2C/2T, 2M Cache, 2.9GHz; TDP 35W)

芯片组

Intel® C246/Q370/H310 Chipset

内存

2 x 260-pin SODIMM up to 64GB Dual Channel DDR4 2666MHz
(ECC : C246 only)

BIOS

AMI SPI 128Mbit

显示

控制器

Intel® HD Graphics

特性

OpenGL 4.5, DirectX 12, OpenCL 2.1
HW Decode: AVC/H.264, MPEG2, VC1/WMV9, JPEG/MJPEG, HEVC/H265, VP8, VP9
HW Encode: AVC/H.264, MPEG2, JPEG, HEVC/H265, VP8, VP9

显示器

2 x HDMI 2.0
HDMI: resolution up to 4096x2160@60Hz

双重显示

2 x HDMI 2.0

储存

内插

2 x 2.5" SATA bay (optional)
support RAID 0/1

扩充

界面

1 x M.2 2280 M key (PCIe x4/SATA 3.0)
1 x M.2 2230 E key (PCIe x1/USB2.0), WiFi

以太网路

控制器

2 x Intel® I219/I210IT (10/100/1000Mbps) (Support Intel® iAMT)

界面

2 x GbE RJ-45

LED

指示灯

1 x Power LED
1 x HDD LED

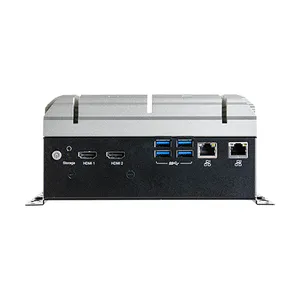

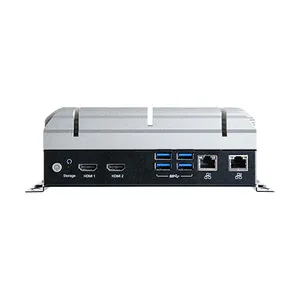

前板输入/输出

以太网络

2 x GbE (RJ-45)

USB

4 x USB 3.1 (type A)

显示

2 x HDMI 2.0

按键

1 x Power button
1 x Reset button

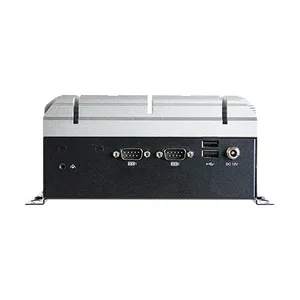

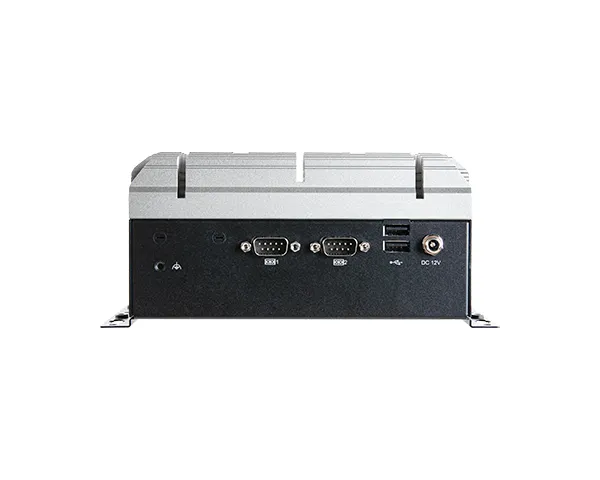

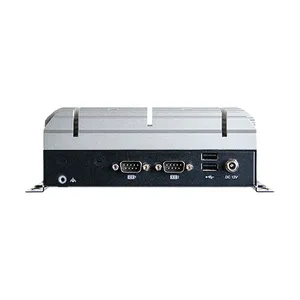

背板输入/输出

串口

2 x RS232/RS422/RS485 (DB9) or
1 x RS232/RS422/RS485 (DB9)(COM1) + 1 x 8bit DIO (DB9)

USB

2 x USB 2.0 (type A)

天线

2 x Opening Antenna Hole (WiFi)

监视定时器

看门狗定时器

System Reset, Programmable via Software from 1 to 255 Seconds

安全性

信赖平台模块

TPM2.0 (option)

电源

类型

12V DC-in jack lockable External power brick

RTC 电池

CR2032 Coin Cell

供应

AC Power 100-250V, 50/60Hz

支持操作系统

微软

Windows 10 IoT Enterprise 2019 LTSC + RS5
Windows 10 Professional

环境指标

运作温度

CPU power output config. via BIOS:
TDP 35W : -5° C or 45° C
cTPU 15W : -20° to 60° C

储存温度

-20° to 60° C

相对湿度

5 to 90% RH

机械结构

结构

Metal + Aluminum

安装方式

Wall mount
VESA mount 75x75/10x10cm (optional)

尺寸 (宽 x 高 x 深)

175 x 69.4 x 120mm (1 Storage: 1 x M.2 SSD)
175 x 90.4 x 120mm (3 Storage: 1 x M.2 SSD + 2 x 2.5” bay)

重量

3.5 kg (1 Storage: 1 x M.2 SSD)
3.8 kg (3 Storage: 1 x M.2 SSD + 2 x 2.5” bay)

颜色

Black

安规认证

认证

FCC, CE Class B, RoHS, WEEE, UKCA
