• 11th Gen Intel® Core™ i7/i5/i3 Processors

• On board memory 8GB and 1 SO-DIMM DDR4

• Triple Displays: 2 HDMI (4K@30Hz) + 1 VGA (2K@60Hz)

• Support M.2 B key 3042/3052 5G-NR module

• Up to 4 LAN or 6 USB

• 15-Year CPU Life Cycle Support Until Q3&＃39; 35 (Based on Intel IOTG Roadmap)

系统

处理器

11th Gen Intel® Core™ i7/i5/i3 Processors
Intel Embedded Series
Intel® Core™ i7-1185G7E Processor, 4C8T, 12M Cache, 1.8GHz (4.4GHz), 15W
Intel® Core™ i5-1145G7E Processor, 4C8T, 8M Cache, 1.5GHz (4.1GHz), 15W
Intel® Core™ i3-1115G4E Processor, 2C4T, 6M Cache, 2.2GHz (3.9GHz), 15W
Intel Industrial Series
Intel® Core™ i7-1185GRE Processor, 4C8T, 12M Cache, 1.8GHz (4.4GHz), 15W
Intel® Core™ i5-1145GRE Processor, 4C8T, 8M Cache, 1.5GHz (4.1GHz), 15W
Intel® Core™ i3-1115GRE Processor, 2C4T, 6M Cache, 2.2GHz (3.9GHz), 15W

内存

8GB On-board memory & one SO-DIMM DDR4

BIOS

AMI SPI 256Mbit

显示

控制器

Intel® Iris® Xe Graphics for i7/i5 Processors
Intel® UHD Graphics for i3/Celeron Processors

特性

OpenGL 4.5, DirectX 12, OpenCL 2.1
HW Decode: WMV9, AVC/H264, JPEG/MJPEG, HEVC/H265, VP9, AV1
HW Encode: AVC/H264, JPEG, HEVC/H265, VP9

显示器

2 x HDMI
1 x VGA
HDMI: resolution up to 4096x2160@30Hz
VGA: resolution up to 1920x1200@60Hz

储存

内插

1 x M.2 2280 M key (PCIe x4)

扩充

界面

1 x M.2 2280 M key (PCIe x4)
1 x M.2 3042/3052 B key (USB3.1)
1 x M.2 2230 E Key (PCIe/USB2.0)

以太网路

控制器

(SKU 1)
1 x Intel® I210IT
1 x Intel® I225IT
(SKU 2)
2 x Intel® I210IT
1 x Intel® I225IT
(SKU 3)
2 x Intel® I210IT, 1 x LAN7500i
1 x Intel® I225IT

LED

指示灯

1 x Power LED
1 x HDD LED

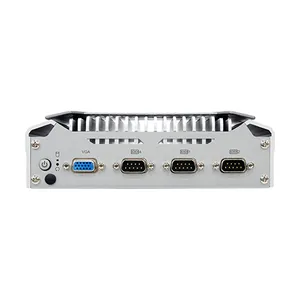

前板输入/输出

串口

2 x RS-232/422/485 (DB-9, COM 1~2)
1 x RS232 (DB9, COM 4)

显示

1 x VGA

按键

1 x Power button
1 x Reset button

背板输入/输出

以太网络

(SKU1) 2 x GbE (RJ-45)
(SKU2) 3 x GbE (RJ-45)
(SKU3) 4 x GbE (RJ-45)

串口

1 x RS-232 or DIO (DB-9, COM 3)

USB

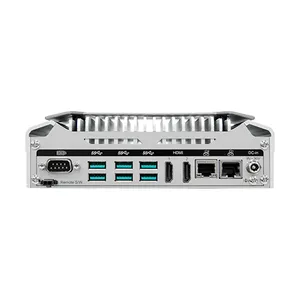

(SKU 1) 6 x USB 3.1 (type A)

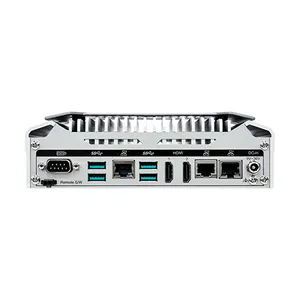

(SKU 2) 4 x USB 3.1 (type A)

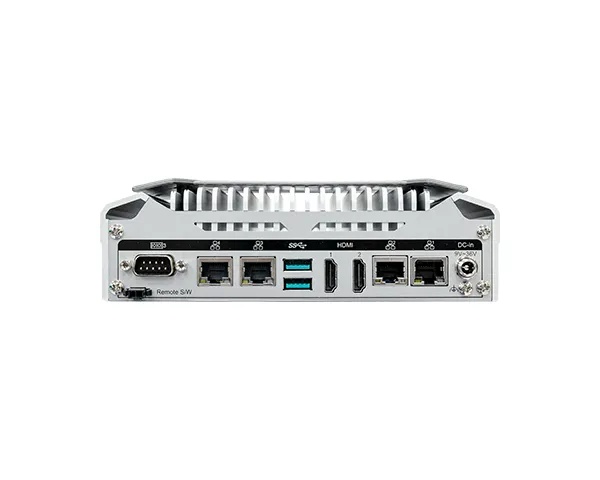

(SKU 3) 2 x USB 3.1 (type A)

显示

2 x HDMI

监视定时器

看门狗定时器

System Reset, Programmable via Software from 1 to 255 Seconds

电源

类型

Wide range 9~36V

端口

DC Jack

支持操作系统

支持操作系统

Windows 10 IoT
Linux OS (OpenVINO kit ready)

环境指标

运作温度

-20 to 60°C (wide-temp SSD)

储存温度

-20 to 85°C

相对湿度

5 to 95% RH (non-con５densing)

机械结构

结构

Aluminum + Metal Aluminum

安装方式

Wall/VESA/DIN rail mount

尺寸 (宽 x 高 x 深)

181.6mm x 57mm x 118.4mm

重量

1.1 kg

安规认证

冲击测试

Operating:
IEC 60068-2-27 Test Ea: Shock Test
Half-Sine, 3G @ 11ms, 18 Shock ±X, ±Y, ±Z (each axis 3 times)

抗振动测试

Operating:
IEC 60068-2-64 Test Fh: Vibration Board-Band Random Test
Random, 1Grms @ 5~500 Hz, 30min
Non-Operating:
IEC 60068-2-6 Test Fc: Vibration Sinusoidal Test
Sweep Sine, 3Grms @ 10~500Hz, 30min

认证

CE, FCC Class A, UKCA, UL, CCC, RoHS

装箱单

装箱单

1 EC70A-TGU system unit
3 M.2 slot slot screws
4 Foot screws & Rubber Foot
1 Grounding screw
1 remote switch cable
