| 产品特性：工控机 | 品牌：DFI | 型号：EC700-BT6051/6061 |
| 设备类型：工控电脑 |
4GB DDR3L onboard
mSATA, eMMC (optional)
1x 2.5" SATA drive bay
6 COM, 5/6 USB, 2 LAN
Supports 3G/4G and GPRS application
15-Year CPU Life Cycle Support Until Q4&＃39; 28 (Based on Intel IOTG Roadmap)
系统
处理器
Intel Atom® E3845, Quad Core, 2M Cache, 1.91GHz, 10W
Intel® Celeron® J1900, Quad Core, 2M Cache, 2GHz (2.41GHz), 10W
22nm Process Technology
内存
4GB ECC Memory Onboard (E3845)
4GB non-ECC Memory Onboard (J1900)
Single Channel DDR3L1333MHz
BIOS
AMI SPI 64Mbit
显示
控制器
Intel® HD Graphics
显示器
1 x VGA
1 x HDMI
HDMI: resolution up to 1920x1080 @ 60Hz
VGA: 24-bit, resolution up to 2560x1600 @ 60Hz
双重显示
1 VGA + 1 HDMI
储存
外插/内插
1 x 2.5" SATA 2.0 Drive Bay
4GB/8GB/16GB/32GB eMMC Onboard (available upon request)
扩充
界面
1 x Full-size Mini PCIe (PCIe/USB/3G/GPRS)
1 x Full-size Mini PCIe (SATA)
1 x Half-size Mini PCIe (PCIe/USB/LPC)
1 x SIM
以太网路
控制器
2 x Intel® I210IT PCIe (10/100/1000Mbps)
LED
指示灯
1 x HDD LED
1 x Status LED

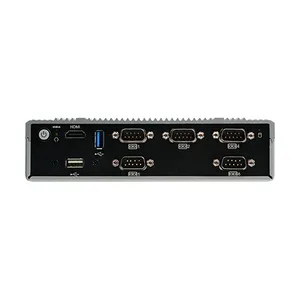

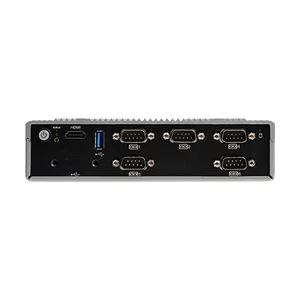

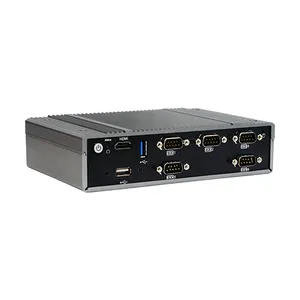

前板输入/输出
串口
5 x COM port
COM1, 2, 4 support RS-232/422/485 selectable (DB-9) (COM4 supports 8-bit DIO)
COM5, 6 support RS-232 (DB-9)
USB
1 x USB 3.0 (type A) (J1900)
1 x USB 3.0 (type A) + 1 x USB 2.0 (type A) (E3845)
显示
1 x HDMI
按键
1 x Power Button
1 x Reset Button

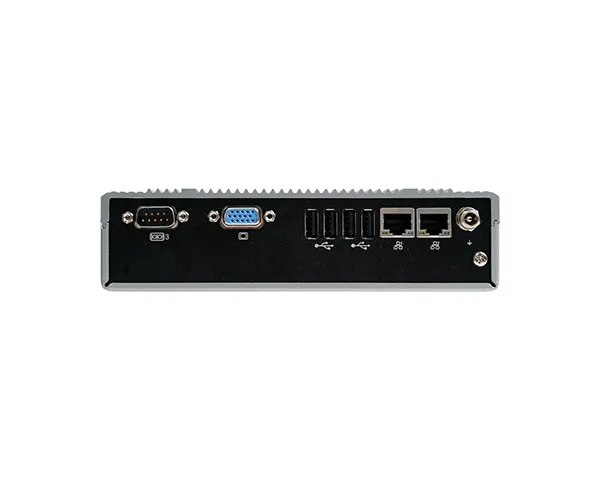

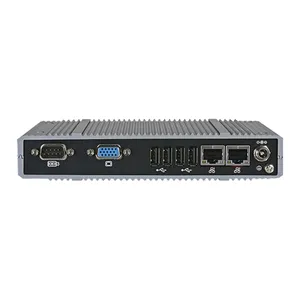

背板输入/输出
以太网络
2 x GbE (RJ-45)
串口
1 x COM port
COM3 support RS232/422/485 (DB-9)
USB
4 x USB 2.0 (type A)
显示
1 x VGA (DB-15)
Wi-Fi 天线
3 x Wi-Fi Module Antenna Hole
监视定时器
看门狗定时器
System Reset, Programmable via Software from 1 to 255 Seconds
电源
类型
Wide Range 9~36V
端口
DC Jack
支持操作系统
支持操作系统
Windows 7, WES 7
Windows 10 IoT
Linux (Distribution available upon request)
环境指标
运作温度
E3845: -20°C~60°C (SSD/mSATA), 0°C~50°C (HDD)
J1900: 0°C~60°C (SSD/mSATA), 0°C~50°C (HDD)
储存温度
-20°C~85°C
机械结构
结构
Aluminum + Metal Aluminum
安装方式
Wall/VESA mount
尺寸 (宽 x 高 x 深)
180mm x 46.7mm x 121.2mm
重量
985g
安规认证
冲击测试
Half Sine Wave 15G, 11ms, 3 Shock Per Axis (SSD/mSATA)
Half Sine Wave 3G, 11ms, 3 Shock Per Axis (HDD)
抗振动测试
IEC68-2-64 (3G) (SSD/mSATA)
IEC68-2-64 (1G) (HDD)
认证
CE, FCC Class B, RoHS, CCC
