| 产品特性：工控机 | 品牌：DFI | 型号：EB100-KU |
| 设备类型：工控电脑 |

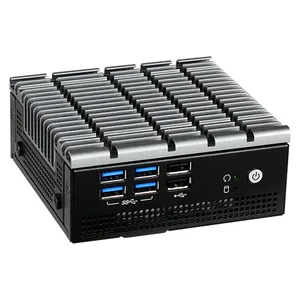

Supports 1 Mini PCIe and 1 M.2 slots
Rich I/O connectivity: 2 GbE, 4 USB 3.0, 2 USB 2.0
1x 2.5" SATA 3.0 drive bay
HDMI resolution supports up to 4096x2304 @ 24Hz
Supports DDR4 SODIMM up to 32GB
15-Year CPU Life Cycle Support Until Q3&＃39; 30 (Based on Intel IOTG Roadmap)
系统
处理器
6th/7th Generation Intel® Core™ Processors, BGA 1356
Intel® Core™ i7-6600U Processor, Dual Core, 4M Cache, 2.6GHz, 15W
Intel® Core™ i5-6300U Processor, Dual Core, 3M Cache, 2.4GHz, 15W
Intel® Core™ i3-6100U Processor, Dual Core, 3M Cache, 2.3GHz, 15W
Intel® Core™ i7-7600U Processor, Dual Core, 4M Cache, 2.8GHz (3.9GHz), 15W
Intel® Core™ i5-7300U Processor, Dual Core, 3M Cache, 2.6GHz (3.5GHz), 15W
Intel® Core™ i3-7100U Processor, Dual Core, 3M Cache, 2.4GHz, 15W
Intel® Celeron® Processor 3965U, Dual Core, 2M Cache, 2.20 GHz, 15W
内存
Two 260-pin SODIMM up to 32GB
Dual Channel DDR4 1866/2133MHz
BIOS
Insyde SPI 128Mbit
显示
控制器
Intel® HD Graphics
显示器
2 x HDMI
HDMI: resolution up to 2560x1600 @ 60Hz or 4096x2304 @ 24Hz
双重显示
HDMI
储存
内插
1 x 2.5" SATA 3.0 Drive Bay
扩充
界面
1 x Half-size Mini PCIe socket (PCIe/USB 2.0)
1 x M.2 2280 M key (PCIe x4 NVMe/SATA)
以太网路
控制器
1 x Intel® I210AT (10/100/1000Mbps)
1 x Intel® I219LM (10/100/1000Mbps)
LED
指示灯
1 x Power LED
1 x Storage LED

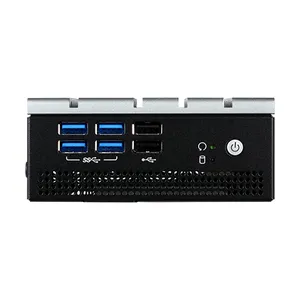

前板输入/输出
USB
2 x USB 2.0
4 x USB 3.0
按键
1 x Power Button
1 x Reset Button

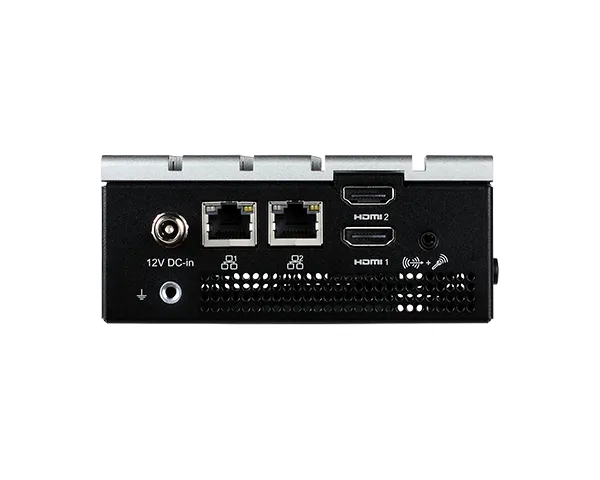

背板输入/输出
以太网络
2 x GbE (RJ-45)
显示
2 x HDMI
音源
1 x Line-out, Mic-in (by Y-cable)
侧面输入/输出
天线孔
2 x Antenna Hole
电源
类型
12V DC in
端口
DC Jack
支持操作系统
微软
Windows 10 IoT Enterprise LTSC 64 Bit
环境指标
运作温度
-20 to 40°C
储存温度
-20 to 85°C
相对湿度
5 to 95% RH (non-condensing)
机械结构
结构
Metal + Aluminum
安装方式
Wall/VESA Mount
尺寸 (宽 x 高 x 深)
115mm x 48.7mm x 111mm
重量
<1Kg
安规认证
冲击测试
Half sine wave 3G, 11ms, 3 shock per axis
抗振动测试
IEC68-2-64
认证
CE, FCC Class A, RoHS, UKCA, UL/cUL
装箱单
装箱单
1 EB100-KU system unit
1 Quick Installation Guide
Mounting screws for Mini PCIe module & M.2 module
Wall mount kit (optional)
Power adapter (optional)
