| 产品特性：工控机 | 品牌：DFI | 型号：BMAL |
| 设备类型：工控电脑 |

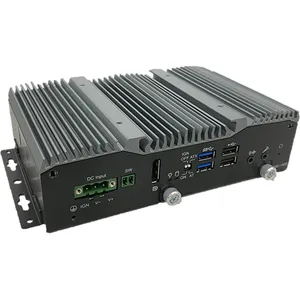

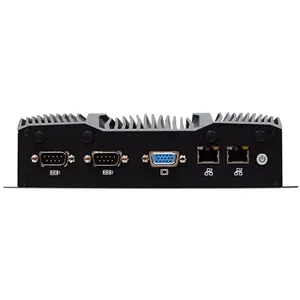

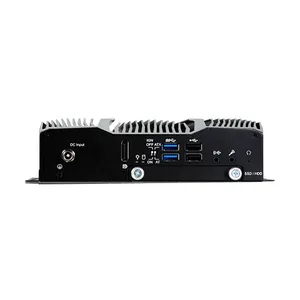

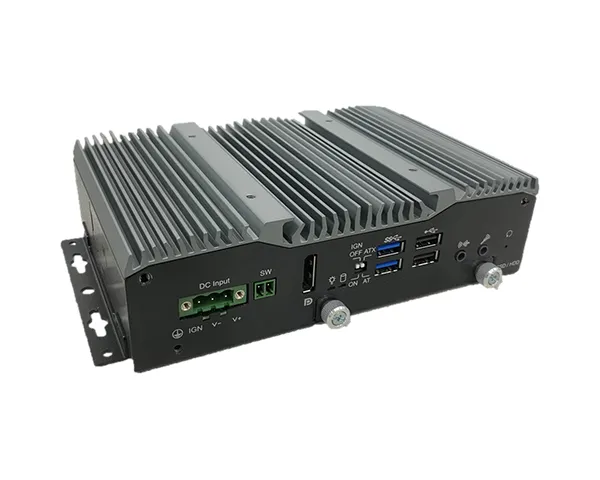

Support Adaptive Display Platform
Supports 24V / 9~48V Power Board Module
Accessible 2.5" SATA Drive Bay
12V/24V/48V Ignition Power Control
Wide Operating Temperature: -40 to 70°C
系统
处理器
Intel Atom® x5-E3940 Processor, Quad Core, 2M Cache, 1.6GHz (1.8GHz), 9.5W
Intel® Celeron® Processor N3350, Dual Core, 2M Cache, 1.1GHz (2.4GHz), 6W
内存
One 204-pin SODIMM
up to 8GB Single Channel DDR3L 1866MHz
BIOS
Insyde SPI 128Mbit (supports UEFI boot only)
显示
控制器
Intel® HD Graphics
特性
OpenGL 4.2, Direct X 11.1, OpenCL 1.2, OGL ES 3.0
HW Decode: H.264, MPEG2, VC1, VP8, H.265, MPEG4
HW Encode: H.264, MPEG2, MPEG4
显示器
1 x DP++
1 x VGA or DVI-D (DVI-D available upon request)
DP++: resolution up to 4096x2160 @ 60Hz
VGA: resolution up to 2560x1600 @ 60Hz
DVI-D: resolution up to 1920x1200 @ 60Hz
三重显示
Panel Module, DP++, VGA or DVI-D
储存
外插
1 x 2.5" SATA 3.0 Drive Bay (accessible)
1 x mSATA (shared by Half-size Mini-PCIe Socket)
扩充
界面
1 x Full-size Mini PCIe (USB/PCIe)
1 x Half-size Mini PCIe (USB/PCIe/mSATA)
1 x SIM Slot
音讯
音讯编译码器
Realtek ALC262
以太网路
控制器
2 x Intel® I210IT PCIe (10/100/1000Mbps)
LED
指示灯
1 x Power LED
1 x HDD LED
输入/输出
以太网络
2 x GbE (RJ-45) (10/100/1000Mbps)
Support Jumbo Frame, IEEE1588v2, WOL, PXE
802.3 af PoE (PSE), Individual Port 15.4W (available upon request)
串口
2 x RS-232/422/485 (DB9) Support 5V/12V Power
2 x RS-232/422/485 (available upon request)
USB
2 x USB 3.0 (type A)
2 x USB 2.0 (available upon request)
2 x USB 2.0 (type A)
屏幕
1 x DP++
1 x VGA or DVI-D (DVI-D available upon request)
DIO
4 x DI / 4 x DO (10-pin terminal block) (available upon request)
按键
1 x Power Button
1 x Reset Switch
音源
1 x Line-out 1 x Mic-in
天线
4 x Wi-Fi Module Antenna Hole
电源
Remote Power On/Off：
1 x 2-pin Terminal Block
电源开关
1 x AT/ATX Switch
1 x Ignition Power On/Off Switch
监视定时器
看门狗定时器
System Reset, Programmable via Software from 1 to 255 Seconds
电源
类型
24 VDC Input (available upon request)
9~48 VDC Input (available upon request)
端口
3-pin Terminal Block
支持操作系统
支持操作系统
Windows 10 IoT Enterprise 64-bit
Linux
环境指标
运作温度
-40 to 70°C
安规认证
认证
CE / FCC Class A / RoHS
装箱单
装箱单
1 Single box
1 3 pin Terminal Block Connector
1 2 pin Terminal Block Connector
2 Mini PCIe screw
4 SATA screw
***
***号 (台湾)
I670589
其他
电源点火系统开关
Auto Detect Boot-up & Shut-down Voltage for Low Power Protection
Support 12V/24V/48V DC Input
7-level Delay Time On/Off Configuration
I/O Switch Selectable Ignition Power On/Off
