• 12th Gen Intel® Core™ Alder Lake-P Processor

• On board memory 8GB and 1 SO-DIMM DDR4

• Dual Displays: HDMI (4K@30Hz) + DP (4K@60Hz)

• Support M.2 B key 3042/3052 5G-NR module

• Rich I/O: up to 3 LAN & 4 USB3.2 (or 2 USB3.2 + 2 USB type-C)

系统

处理器

12th Gen Intel® Core™ Processors, BGA 1744
(Alder Lake-P, 15W for Fanless model, 28W for with Fan model)
Intel® Core™ i7-1265UE Processor, 10C12T, 12M Cache, 1.7GHz (4.7GHz)
Intel® Core™ i5-1245UE Processor, 10C12T, 12M Cache, 1.5GHz (4.4GHz)
Intel® Core™ i3-1215UE Processor, 6C8T, 10M Cache, 1.2GHz (4.4GHz)

内存

8GB On-board memory & one SO-DIMM DDR4 up to 32GB
Dual Channel DDR4 3200MHz

BIOS

AMI SPI 256Mbit

显示

控制器

Intel® Iris® Xe Graphics for i7/i5 Processors
Intel® UHD Graphics for i3 Processors

特性

DirectX 12, Open GL 4.6, Vulkan 1.2
HW Decode: AV1, AVC/H.264, MJPEG, HEVC/H.265, VP9, SCC
HW Encode: MJPEG, AVC/H.264, HEVC/H.265, VP9, SCC

显示器

1 x HDMI
1 x DP

HDMI: resolution up to 4096x2160 @30Hz
DP: resolution up to 4096x2304 @60Hz

多重显示

HDMI + DP + 2 Type-C DP Alt. Mode

扩充

界面

1 x M.2 M Key 2280 (PCIex4/SATA)
1 x M.2 B Key 3042/3052 (USB3.0/USB2.0/PCIex1), 1 x SIM slot for 4G/5G
1 x M.2 E Key 2230 (PCIex1/USB2.0)

音讯

音讯编译码器

Realtek ALC888 5.1-channel

以太网路

控制器

1 x Intel® I225IT (10/100/1000/2500Mbps)
2 x Intel® I225IT (10/100/1000Mbps, connector speed limit)
(Only Core i7/i5 supports iAMT)

LED

指示灯

1 x Power LED
1 x HDD LED

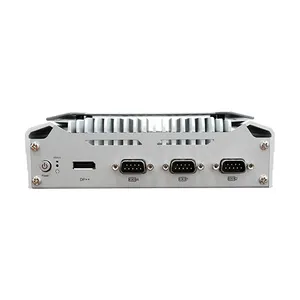

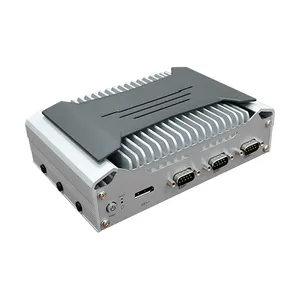

前板输入/输出

串口

2 x RS-232/422/485 (DB-9, COM 1~2)
1 x RS232 (DB9, COM 4)

显示

1 x DP (optional VGA by request)

按键

1 x Power button
1 x Reset button

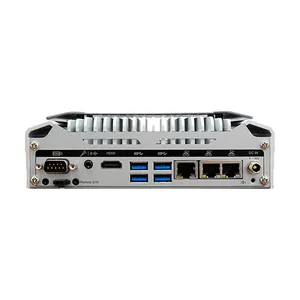

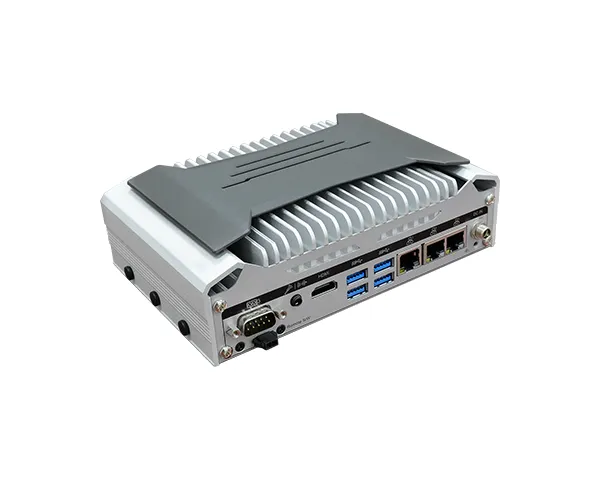

背板输入/输出

以太网络

1 x 2.5GHz (RJ-45) + 2 x GbE (RJ-45)

串口

1 x RS-232 or 8bit DIO (DB-9, COM 3, default is RS232, 8bit DIO can set by jumper setting)

USB

4 x USB 3.2

EC70A-ADP4043/EC70A-ADP4043F

4 x Type A connector

EC70A-ADP4022TC3/EC70A-4022TC3F

2 x Type C + 2 x Type A connector

显示

1 x HDMI
2 x Type-C DP Alt. Mode(for EC70A-ADP4022TC3 & EC70A-ADP4022TC3F)

音源

1 x Audio Combo Phone Jack (Line-out/Mic-in)

监视定时器

看门狗定时器

System Reset, Programmable via Software from 1 to 255 Seconds

安全性

信赖平台模块

TPM2.0

电源

类型

Wide range 9~36V

端口

DC Jack

支持操作系统

微软

Windows 10 IoT Enterprise 64-bit
Windows 11 IoT Enterprise LTSC 2024

Linux

Linux

环境指标

运作温度

Fanless(CPU TDP 15W): -20 to 60°C (wide-temp SSD)
W/Fan(CPU TDP 28W): -20 to 70°C (wide-temp SSD)

储存温度

-20 to 85°C

相对湿度

5 to 95% RH (non-condensing)

机械结构

结构

Aluminum + Metal Aluminum

安装方式

Wall/VESA/DIN rail mount

尺寸 (宽 x 高 x 深)

181.6mm x 57mm x 118.4mm

重量

TBD

安规认证

冲击测试

Operating:
IEC 60068-2-27 Test Ea: Shock Test
Half-Sine, 3G @ 11ms, 18 Shock ±X, ±Y, ±Z (each axis 3 times)

抗振动测试

Operating:
IEC 60068-2-64 Test Fh: Vibration Board-Band Random Test
Random, 1Grms @ 5~500 Hz, 30min
Non-Operating:
IEC 60068-2-6 Test Fc: Vibration Sinusoidal Test
Sweep Sine, 3Grms @ 10~500Hz, 30min

认证

CE, FCC Class A, RoHS, UKCA, KC
