| 产品特性：工控机 | 品牌：DFI | 型号：EC531-KH/EC532-KH |
| 设备类型：工控电脑 |

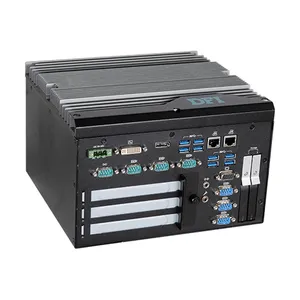

Three independent displays: 1 VGA, 1 DVI, 1 DP
Rugged and Fanless Embedded System
Rich I/O connectivity: 2 GbE, 8 COM, 8 USB 3.0, 2 USB 2.0, 1 M.2 NVMe slots
3 expension slots: PCIe + PCI
Supports DDR4 SODIMM up to 32GB
15-Year CPU Life Cycle Support Until Q1&＃39; 32 (Based on Intel IOTG Roadmap)
系统
处理器
7th Generation Intel® Core™ Processors, BGA 1440
Intel® Xeon® Processor E3-1535M v6, Quad Core, 8M Cache, 3.1GHz (4.2GHz), 45W
Intel® Core™ i7-7820EQ Processor, Quad Core, 8M Cache, 3.0GHz (3.7GHz), 45W
Intel® Core™ i5-7440EQ Processor, Quad Core, 6M Cache, 2.9GHz (3.6GHz), 45W
Intel® Core™ i5-7442EQ Processor, Quad Core, 6M Cache, 2.1GHz (2.9GHz), 25W
Intel® Core™ i3-7100E Processor, Dual Core, 3M Cache, 2.9GHz, 35W
Intel® Core™ i3-7102E Processor, Dual Core, 3M Cache, 2.1GHz, 25W
芯片组
Intel® CM238 Chipset
Intel® QM175 Chipset
内存
Two 260-pin SODIMM up to 32GB (CM238 supports ECC)
Dual Channel DDR4 2400MHz
BIOS
Insyde SPI 128Mbit
显示
控制器
Intel® HD Graphics
特性
OpenGL up to 5.0, DirectX 11, OpenCL 2.1
HW Decode: HEVC/H.265, H.264, M/JPEG, MPEG2, VC1/WMV9, VP8 (8-bit), VP9 (10-bit)
HW Encode: HEVC/H.265, M/JPEG, MPEG2, VP8
显示器
1 x VGA
1 x DVI (DVI-D signal)
1 x DP
VGA: resolution up to 1920x1200 @ 60Hz
DVI: resolution up to 1920x1200 @ 60Hz
DP: resolution up to 4096x2304 @ 60Hz
三重显示
VGA + DVI (DVI-D signal) + DP
储存
内插
2 x 2.5" SATA 3.0 Drive Bay
support RAID 0/1
扩充
界面
1 x PCIe x16 + 2 x PCI (EC531-KH only) or 2 x PCIe x16 (1 x 1 and 1 x 8 signal) + 1 x PCI (EC532-KH only)
1 x M.2 2280 M key (PCIe x4 NVMe, Intel optane memory support)
1 x Full-size Mini PCIe with micro SIM socket (PCIe/USB)
1 x Full/Half-size Mini PCIe with micro SIM socket (USB)
以太网路
控制器
1 x Intel® I211IT PCIe (10/100/1000Mbps)
1 x Intel® I219LM with iAMT11.0 PCIe (10/100/1000Mbps) (only Core i7/i5 supports iAMT)
LED
指示灯
1 x Power LED
1 x HDD LED

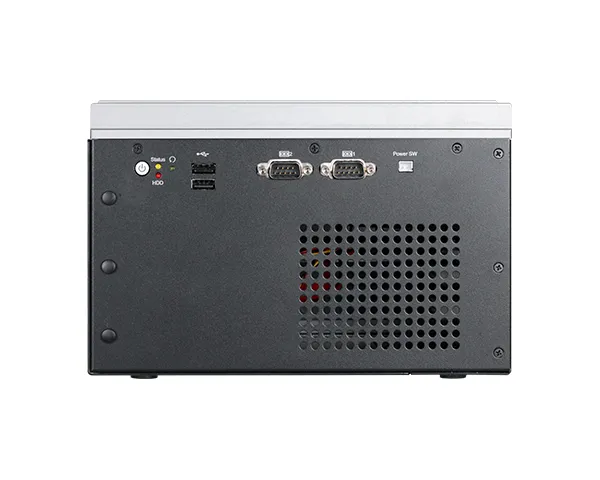

前板输入/输出
串口
2 x RS-232/422/485 (DB-9) (RS-232 with power)
USB
2 x USB 2.0 (type A)
按键
1 x Power Button
1 x Reset Button
Wi-Fi 天线
3 x Antenna Hole

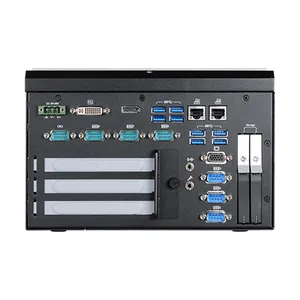

背板输入/输出
以太网络
2 x GbE (RJ-45)
串口
6 x RS-232/422/485 (DB-9)
USB
8 x USB 3.0 (type A)
显示
1 x VGA
1 x DVI (DVI-D signal)
1 x DP
音源
1 x Line-out
1 x Mic-in (available upon request)
监视定时器
看门狗定时器
System Reset, Programmable via Software from 1 to 255 Seconds
安全性
信赖平台模块
TPM 2.0 (optional)
电源
类型
Wide Range 9~36V
端口
3-pole Terminal Block
2-pin Power Extension Switch Connector
支持操作系统
支持操作系统
Windows 10 IoT Enterprise 64 Bit
Linux (available upon request)
环境指标
运作温度
0 to 50°C (HDD)
-20 to 60°C (SSD)
-40 to 70°C (optional)
储存温度
-20 to 85°C
相对湿度
5 to 95% RH (non-condensing)
机械结构
结构
Metal + Aluminum
安装方式
Wall Mount
尺寸 (宽 x 高 x 深)
235 x 153.8 x 222.1mm
重量
4.8kg
安规认证
冲击测试
Half sine wave 3G, 11ms, 3 shock per axis
抗振动测试
IEC68-2-64
认证
CE, FCC Class A, Microsoft Azure
装箱单
装箱单
1 EC531/532-KH system unit
1 Extend power switch cable
1 terminal block 3pole for DC input
1 cable with 2 wire stripped and tinned to DC jack
