| 产品特性：AI边缘产品 | 品牌：DFI | 型号：RM811-ERX610 |
| 设备类型：工控电脑 |

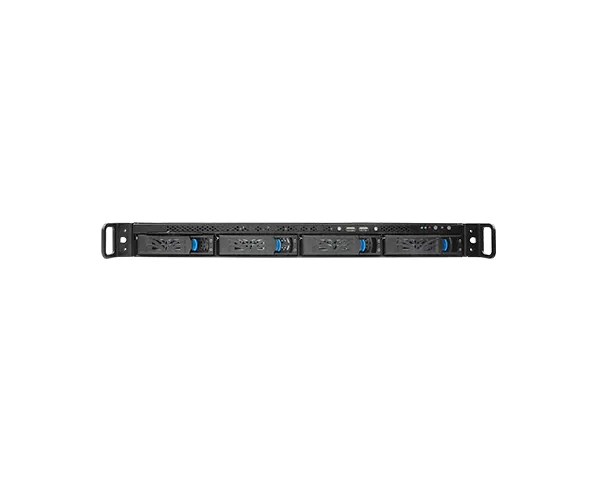

Equipped with single 4th/5th Gen Intel® Xeon® Scalable processors for exceptional processing power.
Supports single-slot GPU/IO card for enhanced graphics and I/O capabilities.
Features four hot-swappable drive bays (3.5"/2.5”) for reliable, high-availability storage.
Versatile I/O options: 1 GbE & 2 10GbE, 1 IPMI LAN, 2 USB 3.2, 1 DisplayPort, 2 M.2 2280 M-Key, and 1 COM.
IPMI-based out-of-band management for seamless remote monitoring and control.
系统
处理器
5th Generation Intel® Xeon® Scalable Processor Family, LGA 4677 Socket,
Intel® Xeon® Gold 5515+ Processor (8 Cores, 22.5 MB Cache, up to 4.1 GHz); 165W
Intel® Xeon® Silver 4516Y+ Processor (24 Cores, 45 MB Cache, up to 3.7 GHz); 185W
Intel® Xeon® Silver 4514Y Processor (16 Cores, 30 MB Cache, up to 3.4 GHz); 150W
Intel® Xeon® Silver 4510 Processor (12 Cores, 30 MB Cache, up to 4.1 GHz); 150W
Intel® Xeon® Silver 4510T Processor (12 Cores, 30 MB Cache, up to 3.7 GHz); 115W
Intel® Xeon® Silver 4509Y Processor (8 Cores, 22.5 MB Cache, up to 4.1 GHz); 125W
4th Generation Intel® Xeon® Scalable Processor Family, LGA 4677 Socket,
Intel® Xeon® Gold 5418N Processor (24 Cores, 45 MB Cache, up to 3.80 GHz); 165W
Intel® Xeon® Gold 5415+ Processor (8 Cores, 22.5 MB Cache, up to 4.10 GHz); 150W
Intel® Xeon® Silver 4416+ Processor (20 Cores, 37.5 MB Cache, up to 3.90 GHz); 165W
Intel® Xeon® Silver 4410T Processor (10 Cores, 26.25 MB Cache, up to 4.00 GHz); 150W
Intel® Xeon® Silver 4410Y Processor (12 Cores, 30 MB Cache, up to 3.90 GHz); 150W
芯片组
Intel® C741 Chipset
内存
8 x ECC-RDIMM up to 1024GB
DDR5 Max. 5600MHz
BIOS
Insyde
显示
显示器
1 x DP
储存
外插
4 x SATA 3.0 (RAID 0/1/5/10)
内插
2 x M.2 2280 M key
扩充
界面
1 x PCIe x16
2 x M.2 2280 M key
音讯
音讯编译码器
ALC888S
以太网路
控制器
1 x Intel® I210AT
2 x Intel® E610-XAT2
IPMI: RTL8211F
前板输入/输出
以太网络
1 x GbE
2 x 10GbE
1 x Dedicated IPMI LAN
串口
1 RS-232/422/485 (DB-9)
USB
2 x USB 3.2 Gen1
显示
1 x DP
音源
Internal: Front Audio
按键
1 x Power Button
1 x Reset Button
LED指示灯
1 x Power LED
1 x HDD LED
冷却
风扇
5 x 4CM Fan
电源
类型
Slim Redundant
耗能
TBD
支持操作系统
支持操作系统
Windows 11 LTSC
Widows server 2022 LTSC
环境指标
运作温度
0°C to 40°C: CPU up to TBD W
0°C to 35°C: CPU up to TBD W
机械结构
结构
Heavy Industrial Steel
安装方式
Rack mount kit
尺寸 (宽 x 高 x 深)
438 x 44 x 673.2mm
重量
TBD
颜色
Black
安规认证
认证
TBD
