• Supports 14th/13th/12th Gen. Intel® Core™ CPUs with up to 65W TDP – ideal for mainstream and embedded performance.

• 1x PCIe Gen5 x16 slot – fits dual-slot full-height GPU cards up to 9.5” for high-performance graphics or AI acceleration.

• High-speed DDR5 memory – dual-channel support up to 4400MHz, max 192GB via 4x UDIMM for intensive workloads.

• Comprehensive I/O options – includes Intel® 2.5GbE & 1GbE LAN, 4x USB 3.2, 2x USB 2.0, COM, PS/2, Line-out, Mic-in.

• Triple display support – output via VGA, 4K DP++, and HDMI 2.0a for versatile multi-display setups.

系统

处理器

14th Generation Intel® LGA 1700 Socket Processors,
Intel® Core™ I9-14901E (8 Cores, 36M Cache, up to 5.6 GHz); 65W
Intel® Core™ I5-14401E (6 Cores, 24M Cache, up to 4.7 GHz); 65W
Intel® Core™ I9-14900 (24 Cores, 36M Cache, up to 5.8 GHz); 65W
Intel® Core™ I9-14900T (24 Cores, 36M Cache, up to 5.5 GHz); 35W
Intel® Core™ I7-14700 (20 Cores, 33M Cache, up to 5.4 GHz); 65W
Intel® Core™ I7-14700T (20 Cores, 33M Cache, up to 5.2 GHz); 35W
Intel® Core™ I5-14500 (14 Cores, 24M Cache, up to 5 GHz); 65W
Intel® Core™ I5-14500T (14 Cores, 24M Cache, up to 4.8 GHz); 35W
Intel® Core™ I5-14400 (10 Cores, 20M Cache, up to 4.7 GHz); 65W
Intel® Core™ I5-14400T (10 Cores, 20M Cache, up to 4.5 GHz); 35W
Intel® Core™ I3-14100 (4 Cores, 12M Cache, up to 4.7 GHz); 60W
Intel® Core™ I3-14100T (4 Cores, 12M Cache, up to 4.4 GHz); 35W
Intel® 300 (2 Cores, 6M Cache, up to 3.9 GHz); 46W
Intel® 300T (2 Cores, 6M Cache, up to 3.4 GHz); 35W

13th Generation Intel® LGA 1700 Socket Processors,
Intel® Core™ I9-13900E (24 Cores, 36M Cache, up to 5.2 GHz); 65W
Intel® Core™ I9-13900TE (24 Cores, 36M Cache, up to 5.0 GHz); 35W
Intel® Core™ I7-13700E (16 Cores, 30M Cache, up to 5.1 GHz); 65W
Intel® Core™ I7-13700TE (16 Cores, 30M Cache, up to 4.8 GHz); 35W
Intel® Core™ I7-13700T (16 Cores, 30M Cache, up to 4.9 GHz); 35W
Intel® Core™ I5-13500E (14 Cores, 24M Cache, up to 4.6 GHz); 65W
Intel® Core™ I5-13500TE (14 Cores, 24M Cache, up to 4.5 GHz); 35W
Intel® Core™ I5-13500T (14 Cores, 24M Cache, up to 4.6 GHz); 35W
Intel® Core™ I5-13400E (10 Cores, 20M Cache, up to 4.6 GHz); 65W
Intel® Core™ I3-13100E (4 Cores, 12M Cache, up to 4.4 GHz); 65W
Intel® Core™ I3-13100TE (4 Cores, 12M Cache, up to 4.1 GHz); 35W
Intel® Core™ I3-13100T (4 Cores, 12M Cache, up to 4.2 GHz); 35W

12th Generation Intel® LGA 1700 Socket Processors,
Intel® Core™ i9-12900E (16 Cores, 30M Cache, up to 5.0 GHz); 65W
Intel® Core™ i9-12900TE (16 Cores, 30M Cache, up to 4.8 GHz); 35W
Intel® Core™ i7-12700E (12 Cores, 25M Cache, up to 4.8 GHz); 65W
Intel® Core™ i7-12700TE (12 Cores, 25M Cache, up to 4.6 GHz); 35W
Intel® Core™ i5-12500E (6 Cores, 18M Cache, up to 4.5 GHz); 65W
Intel® Core™ i5-12500TE (6 Cores, 18M Cache, up to 4.3 GHz); 35W
Intel® Core™ i3-12100E (4 Cores, 12M Cache, up to 4.2 GHz); 60W
Intel® Core™ i3-12100TE (4 Cores, 12M Cache, up to 4.0 GHz); 35W
Intel® Pentium® G7400E (2 Cores, 6M Cache, 3.6 GHz); 46W
Intel® Pentium® G7400TE (2 Cores, 6M Cache, 3.0 GHz); 35W
Intel® Celeron® G6900E (2 Cores, 4M Cache, 3.0 GHz); 46W
Intel® Celeron® G6900TE (2 Cores, 4M Cache, 2.4 GHz); 35W

*i9-12900E/ i9-12900TE: 5-Year CPU Lifecycle Support Until Q1&＃39; 27
*Other CPUs: 10-Year CPU Lifecycle Support Until Q1&＃39; 32

芯片组

Q670E

Intel® Q670E Chipset

H610E

Intel® H610E Chipset

内存

Four 288-pin UDIMM up to 192GB (Non-ECC)
Dual Channel DDR5 up to 4400 MHz
*Speed support list follow User’s Manual

BIOS

AMI SPI 256Mbit

显示

控制器

Intel® UHD Graphics 700 series

特性

OpenGL 4.5, DirectX 12, OpenCL 2.1
HW Decode: AVC/H.264, MPEG2, VC1/WMV9, JPEG/MJPEG, HEVC/H265, VP8, VP9
HW Decode: MPEG2, AVC/H264, JPEG, HEVC/H265, VP8, VP9

显示器

1 x VGA
1 x DP++
1 x HDMI 2.0a

VGA: resolution up to 1920x1200 @ 60Hz
DP++: resolution up to 4096x2304 @ 60Hz
HDMI: resolution up to 4096x2160 @ 24Hz

三重显示

VGA, DP++, HDMI

储存

外插

1 or 2 x 3.5"/2.5" SATA 3.0 drive bays (1 x 3.5" SATA drive bay, by default)
1 x 5.25" Optical drive bay

内插

Q670E

1 x M.2 2242/2260/2280 M key (PCIe x2 NVMe/SATA/Intel RST support)

1 x M.2 2242/2260/2280 M key (PCIe x4 NVMe/Intel RST support) (co-lay PCIE x4 slot, function selected by BIOS.)

1 x M.2 2230 E key (PCIe/USB 2.0/Intel CNVi support) (Discrete Wifi 6E support)

H610E

1 x M.2 2242/2260/2280 M key (PCIe x2 NVMe/SATA/Intel RST support)

1 x M.2 2242/2260/2280 M key (PCIe x4 NVMe/Intel RST support) (co-lay PCIE x4 slot, function selected by BIOS.)

扩充

PCIe

1 x PCIe x16 (Gen 5)
1 x PCIe x4 (Gen 3) (co-lay M.2 M-key, function selected by BIOS.)
2 x PCI

音讯

音讯编译码器

Realtek ALC888

界面

1 x Line-out
1 x Mic-in
1 x Line-in (opt., MOQ required)

以太网路

控制器

Q670E

1 x Intel® I226-LM (Core i9/i7/i5 support iAMT, co-lay I219-LM)

1 x Intel® I226-V

H610E

1 x Intel® I219-V

1 x Intel® I226-V

LED

指示灯

1 x Power LED
1 x HDD LED

背板输入/输出

以太网络

Q670E

2 x 2.5GbE (RJ-45) -Default

or 1 x 2.5GbE + 1 x GbE (RJ-45)- opt.

H610E

1 x 2.5GbE + 1 x GbE (RJ-45)

串口

1 x RS-232/422/485 (RS-232 w/ power) (DB-9)

USB

Q670E

4 x USB 3.2 Gen2

2 x USB 2.0

H610E

2 x USB 3.2 Gen2

2 x USB 3.2 Gen1

2 x USB 2.0

PS/2

1 x PS/2 (mini-DIN-6)

显示

1 x DP++
1 x HDMI 2.0a
1 x VGA

音源

1 x Line-out
1 x Mic-in
1 x Line-in (opt., MOQ required)

按键

1 x Power button
1 x Reset button

冷却

风扇

1 x 12cm System Fan

监视定时器

看门狗定时器

System Reset, Programmable via Software from 1 to 255 Seconds

安全性

信赖平台模块

Nuvoton TPM 2.0

电源

供应

FlexATX 400W/650W

支持操作系统

微软

Windows 10 IoT Enterprise 64-bit
Windows 11 LTSC

Linux

Linux (by project support)

环境指标

运作温度

0 to 45°C

储存温度

-20 to 60°C

相对湿度

5 to 95% RH (non-condensing)

机械结构

结构

Sheet metal

安装方式

Wall mount

尺寸 (宽 x 高 x 深)

349mm x 140.2mm x 290.9mm (13.74" x 5.52" x 11.45")

重量

TBD

颜色

no coating or black coating

安规认证

冲击测试

Operating: 3G
Non-operating: 5G

抗振动测试

Operating: Random 5~500Hz 0.5G
Non-operating: Sine 10~500Hz 1.5G

包装落摔测试

ISTA Project 1A

认证

CE, FCC Class A, RoHS, UKCA

装箱单

装箱单

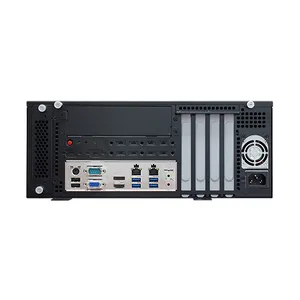

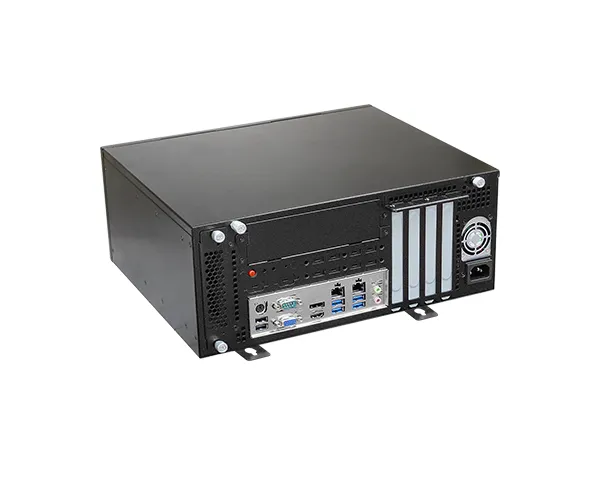

• 1 WM343-RPS System Unit
• 1 CPU cooler 65W
• 1 System Fan
• 1 SATA III cable
• STANDOFF M3*6mm: fix 2.5” SSD
• SCREW F3 * 5L: fix 2.5” SSD
• SCREW #6-32 5mm: fix 3.5” HDD
• SCREW M2x4: M.2 Module
