| 产品特性：AI边缘产品 | 品牌：DFI | 型号：RM646-ERX810 |
| 设备类型：工控电脑 |

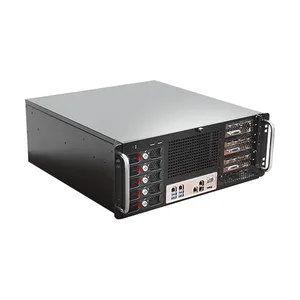

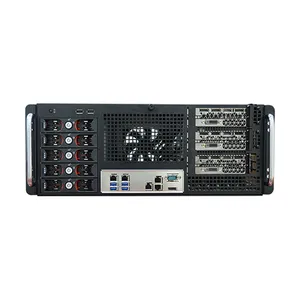

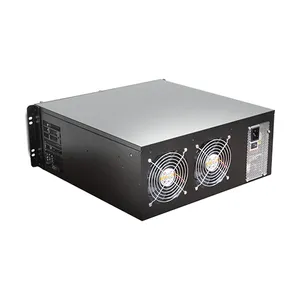

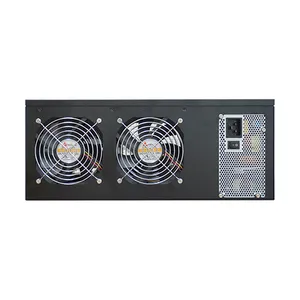

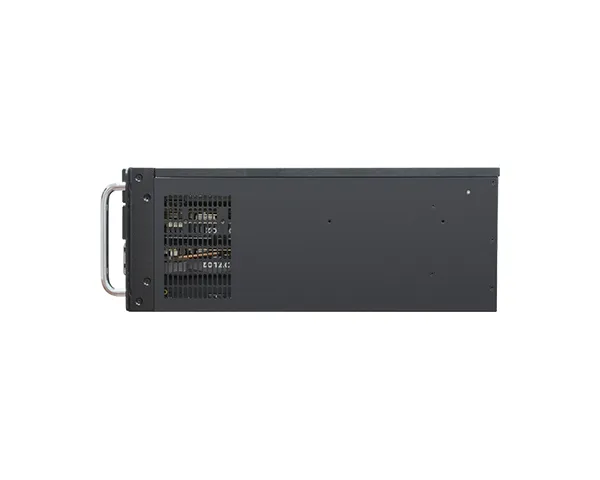

Powerful 4U Edge AI Server: High-Performance Computing at the Edge
Dual 4th/5th Gen Intel® Xeon® Scalable processors for great AI computing
Up to 3 dual-slot GPUs with PCIe Gen 5 support for accelerated AI computing
5 hot-swappable 3.5" drive bays for high-availability storage
Versatile I/O: 4 GbE, 1 IPMI LAN, 4 USB 3.2, 1 DP, 1 M.2 2280 M-Key, 2 MCIO
IPMI-based out-of-band management for remote system monitoring and control
系统
处理器
5th Generation Intel® Xeon® Scalable Processor Family, LGA 4677 Socket:
Intel® Xeon® Gold 6548Y+ Processor (32 Cores, 60 MB Cache, up to 4.1 GHz); 250W
Intel® Xeon® Gold 6548N Processor (32 Cores, 60 MB Cache, up to 4.1 GHz); 250W
Intel® Xeon® Gold 6538N Processor (32 Cores, 60 MB Cache, up to 4.1 GHz); 205W
Intel® Xeon® Gold 6530 Processor (32 Cores, 160 MB Cache, up to 4 GHz); 270W
Intel® Xeon® Gold 6526Y Processor (16 Cores, 37.5 MB Cache, up to 3.9 GHz); 195W
Intel® Xeon® Gold 5520+ Processor (28 Cores, 52.5 MB Cache, up to 4 GHz); 205W
Intel® Xeon® Gold 5515+ Processor (8 Cores, 22.5 MB Cache, up to 4.1 GHz); 165W
Intel® Xeon® Silver 4516Y+ Processor (24 Cores, 45 MB Cache, up to 3.7 GHz); 185W
Intel® Xeon® Silver 4514Y Processor (16 Cores, 30 MB Cache, up to 3.4 GHz); 150W
Intel® Xeon® Silver 4510 Processor (12 Cores, 30 MB Cache, up to 4.1 GHz); 150W
Intel® Xeon® Silver 4510T Processor (12 Cores, 30 MB Cache, up to 3.7 GHz); 115W
Intel® Xeon® Silver 4509Y Processor (8 Cores, 22.5 MB Cache, up to 4.1 GHz); 125W
4th Generation Intel® Xeon® Scalable Processor Family, LGA 4677 Socket:
Intel® Xeon® Gold 6448Y Processor (32 Cores, 60 MB Cache, up to 4.10 GHz); 225W
Intel® Xeon® Gold 6438N Processor (32 Cores, 60 MB Cache, up to 3.60 GHz); 205W
Intel® Xeon® Gold 6430 Processor (32 Cores, 60 MB Cache, up to 3.40 GHz); 270W
Intel® Xeon® Gold 6428N Processor (32 Cores, 60 MB Cache, up to 3.80 GHz); 185W
Intel® Xeon® Gold 6426Y Processor (16 Cores, 37.5 MB Cache, up to 4.10 GHz); 185W
Intel® Xeon® Gold 6418H Processor (24 Cores, 60 MB Cache, up to 4.00 GHz); 185W
Intel® Xeon® Gold 5420+ Processor (28 Cores, 52.5 MB Cache, up to 4.10 GHz); 205W
Intel® Xeon® Gold 5418N Processor (24 Cores, 45 MB Cache, up to 3.80 GHz); 165W
Intel® Xeon® Gold 5418Y Processor (24 Cores, 45 MB Cache, up to 3.80 GHz); 185W
Intel® Xeon® Gold 5415+ Processor (8 Cores, 22.5 MB Cache, up to 4.10 GHz); 150W
Intel® Xeon® Silver 4416+ Processor (20 Cores, 37.5 MB Cache, up to 3.90 GHz); 165W
Intel® Xeon® Silver 4410T Processor (10 Cores, 26.25 MB Cache, up to 4.00 GHz); 150W
Intel® Xeon® Silver 4410Y Processor (12 Cores, 30 MB Cache, up to 3.90 GHz); 150W
芯片组
Intel® C741 Chipset
内存
16 x ECC-RDIMM up to 1024GB
DDR5 Max. 5600MHz
BIOS
Insyde
显示
控制器
BMC AST2600
显示器
1 x DP
储存
外插
4 SATA 3.0 (RAID 0/1/5/10)
内插
1 M.2 2280 M key
扩充
界面
3 x PCIe x16(Gen5)
音讯
音讯编译码器
ALC888S
以太网路
控制器
4 x Intel® I210
IPMI: RTL8211F
前板输入/输出
以太网络
4 x GbE
1 x Dedicated IPMI LAN
串口
1 x RS-232/422/485 (DB-9)
USB
4 x USB 3.2 Gen1
显示
1 x DP
LED指示灯
1 x Power LED
1 x HDD LED
按键
按键
1 x Power Button
冷却
风扇
12 CM Fan x 2
安全性
信赖平台模块
TPM 2.0
电源
供应
ATX PS/2 or Mini Redundant PSU
环境指标
运作温度
0~30°C support up to 250W
0~40°C support up to 205W
储存温度
-30 to 60°C with RTC Battery; -40 to 85°C without RTC Battery
相对湿度
5 to 90% RH (non-condensing)
机械结构
结构
Heavy Industrial Steel
安装方式
Flexible hold down bar
尺寸 (宽 x 高 x 深)
431.8 x 175.6 x 449.8mm
重量
TBD
颜色
Black
安规认证
冲击测试
Operating: 3G
Non-operating: 5G
抗振动测试
Operating: random 5~500Hz 1G
Non-operating: sweep sine 10~500Hz 1.5G
包装落摔测试
ISTA Project 1A
认证
CE, FCC, RoHS, UKCA
装箱单
装箱单
• 1 RM646-ERX810 System Unit
