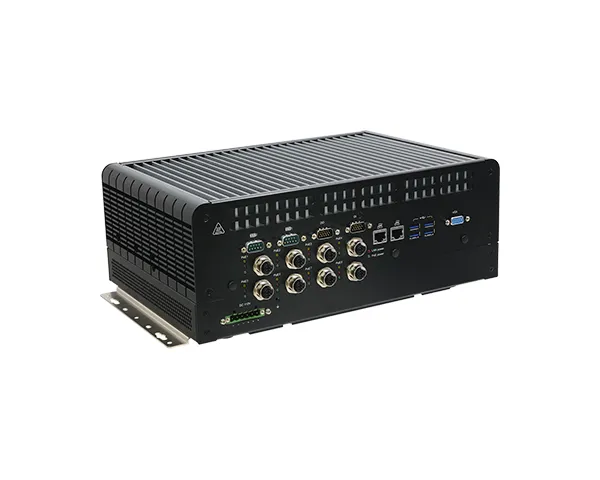

| 产品特性：工控机 | 品牌：DFI | 型号：RC300-BTS |
| 设备类型：工控电脑 |
Intel Core Series 2 Processors with P-cores
8x M12 X-coded PoE ports, Max 120W
AI accelerated: up to 115W GPU MXM module supported
Multiple expansion slots for 5G cellular supported
4x Swappable 2.5" SSD storage bays
Extended operating temperature: -20°C to 70°C
系统
处理器
Intel Core Series 2 Processors with P-cores
Intel® Core™ 9-273PE (12 (12+0) cores, 36M cache, up to 5.7GHz); 65W
Intel® Core™ 7-253PE (10 (10+0) cores, 33M cache, up to 5.5 GHz); 65W
Intel® Core™ 5-223PE (8 (8+0) cores, 24M cache, up to 5.4 GHz); 65W
Intel® Core™ 9-273PTE (12 (12+0) cores, 36M cache, up to 5.5 GHz); 45W
Intel® Core™ 7-253PTE (10 (10+0) cores, 33M Cache, up to 5.4 GHz); 45W
Intel® Core™ 5-223PTE (8 Cores, 24M Cache, up to 5.4 GHz); 45W
芯片组
Intel® R680E Chipset
内存
Dual Channel DDR5 up to 5600 SDRAM, up to 64GB
BIOS
AMI SPI 128Mbit
显示
控制器
Intel CPU integrated graphics
显示器
1 x HDMI 1.4b, resolution up to 4096x2160 @ 24Hz
2 x DP++ , resolution up to 4096x2304 @ 60Hz
1 x USB type C (DP Alt. mode), resolution up to 4096x2304 @ 60Hz
储存
外插
2 x Swappable 2.5” storage bays with lock, 2x 4-pin 2.5mm wafer connector for SATA power
扩充
界面
1 x Full Size Mini PCIE slot, PCIe x1, USB 2.0 signal for GNSS or CAN bus, support 1x internal Nano SIM
2 x M.2 Slot, 2230,A+E Key, PCIe x1, USB 2.0 signal for Wifi/BT Modules
1 x M.2 Slot, 2230,A Key, 2 x UART, 2 x I2C, 1 x USB2.0, 1 x SPI, DFI OOB module
1 x M.2 slot, 2280,B+M-key, PCIe Gen3 x4, SATA signal
1 x M.2 Slot, 3042/3052, B+M key, PCIex1, USB3.0, USB2.0 for 5G/4G modules, support 2x Nano SIM
音讯
音讯编译码器
Realtek ALC888
LED
指示灯
1 x Storage Activity (Red)
1 x Power (Green)
8 x PoE LAN Active link (Red) for M12
8 x PoE Enable (Green) for M12
2 x Programmable general purpose (Green, Blue)
前板输入/输出
PoE
8 x GbE LAN, M12 with PoE 802.11af/at ports, max. 120W
以太网络
2 x 2.5GbE, RJ45
串口
2 x RS232 ports, DB-9
USB
1 x USB 3.2 Gen1 Type A (Vertical)
1 x USB Type C (DP Alt mode)
2 x USB 3.2 Gen1 Type A
显示
4 x DP from MXM
音源
1 x Line-out, 1 x Mic-in with 3.5mm audio tower
CANBus
2 x CAN bus, DB-9 (option), Support J1939
背板输入/输出
DIO
(with cable tie)
2 x ***lated DIO port, terminal block
Supports 16bit DIO with 2.5KV ***lation
显示
1 x HDMI, Resolution up to 4096x2160 @ 24Hz
2 x DP++, Resolution up to 4096x2304@60Hz
按键
1 x Power Button
1 x Reset Button
天线
7 x antenna holes, 5G x4, GNSS x1, Wifi x2
SIM
2 x accessible SIM slots with cover bracket
电源
Wide Range 24~110VDC with power management (on/off delay) and ignition
6 pins 5.0mm pitch terminal block connector
SSD
4 x 2.5&＃39;&＃39; SSD Drive bays
监视定时器
看门狗定时器
Programmable via software from 1 to 255 seconds
电源
类型
300W @12V max. (33.6~145 VDC in, 48V/72V/96V/110V)
225W @12V max. (16.8~45 VDC in, 24V/36V)
端口
1 x 6-pin 5.0mm pitch terminal block connector
支持操作系统
微软
Windows 11 IoT Enterprise LTSC SW
Linux
Ubuntu 24.04
环境指标
运作温度
-25°C to 70°C (Max. by model)
储存温度
-40 to 85°C
相对湿度
10% to 90% (non-condensing)
机械结构
结构
Aluminum + SPGC Metal
安装方式
Wall mount
尺寸 (宽 x 高 x 深)
308 mm x 97.88 mm x 222.3 mm (w/o MXM)
409 mm x 97.88 mm x 222.3 mm (w/ MXM)
重量
9.85 kg (TBD)
安规认证
冲击测试
(SSD/HDD)
IEC61373: 2010, Category 1, Class B Body Mounted
抗振动测试
IEC61373: 2010, Category 1, Class B Body Mounted
认证
CE, FCC, EN 50155, EN45545, RoHS, UKCA Compliant
