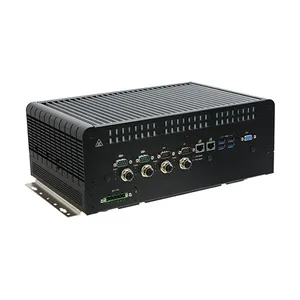

• 8th/9th Generation Intel® Core™ Processors

• 4 x M12 X-coded PoE Ports at 15.4W

• AI accelerated: up to 115W GPU MXM module supported

• Multiple expansion slots for 4G/5G cellular and function modules

• UPS Battery: Supports at least 5 mins nonstop operation

• Support M.2 B key 3042/3052 5G-NR module

• 4 x Swappable 2.5” 7mm SSD storage bays

• 15-Year CPU Life Cycle Support Until Q2&＃39; 34 (Based on Intel IOTG Roadmap)

系统

处理器

8th/9th Generation Intel® Core™ Processors, LGA 1151
Intel® Core™ i7-9700TE Processor, 8C/8T, 12MB Cache, 1.8GHz, TDP 35W
Intel® Core™ i7-8700T Processor, 6C/12T, 12MB Cache, 2.4GHz, TDP 35W
Intel® Core™ i5-9500TE Processor, 6C/6T, 9MB Cache, 2.2GHz, TDP 35W
(Other CPU support upon request)

芯片组

Intel® Q370 Chipset

内存

Dual Channel DDR4 2666/2400 MHz by SODIMMs up to 64GB

BIOS

AMI SPI 128Mbit

显示

控制器

Intel® HD Graphics

显示器

1 x VGA (display out by DB-15 connector)
1 x HDMI (with screw lock)
1 x DP++ (Standard Display Port Connector DIP
type with screw lock)
Support NIVIDIA Optimus
technology
VGA: resolution up to 1920x1200 @ 60Hz
HDMI: resolution up to 4096x2160 @ 24Hz
DP++: resolution up to 4096x2304 @ 60Hz

AI 加速器

界面

MXM Type A, B, C on x16 PCIe 3.0

控制器

Nvidia Quadro embedded / Nvidia Geforce series

储存

外插

4 x Swappable 2.5” 7mm SSD storage bays with lock (RC300H-CS)
2 x Swappable 2.5" 7mm SSD storage bays with lock (RC300L-CS, RC300H-CS-UPS)

内插

1 x M.2 2280 M key supports SATA SSD

扩充

界面

1 x Half-size Mini PCIe for WiFi/BT modules, with PCIe x1 & USB signal
2 x Full-size Mini PCIe support PCIe x1, USB 2.0 signal with SIM card socket of each
1 x M.2 B key supports 3042, 3052 devices or 5G module on PCIe x1, USB2.0, USB3.0 signal with SIM card slot bracket
- SIM card can all be external accessible
1 x M.2 2280 M key supports 2242, 2260 & 2280 devices (PCIe x4 & SATA signal, support boot up function)

音讯

音讯编译码器

Realtek ALC888

界面

1 x Mic-in
1 x Line-out

以太网路

控制器

5 x Intel® I210IT NIC (10/100/1000Mbps)
1 x Intel® I219LM with iAMT11.0 PCIe (10/100/1000Mbps) (only Core i7/i5 supports iAMT)

界面

2 x RJ45 GbE
4 x M12 802.3af 15.4W PoE ports

LED

指示灯

1 x Power LED (green)
5 x Storage LED (red)
4 x PoE LED

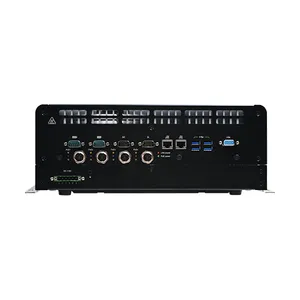

前板输入/输出

PoE

4 x M12 802.3af PoE
Support 802.11af, max 15.4W (PSE side)
NOT support wake on Lan

以太网络

2 x GbE (RJ-45) support Wake on Lan

串口

2 x BIOS selection RS-232/422/485 by 2x DB-9

USB

4 x USB 3.0 (type A)

显示

1 x VGA display out by DB-15 connector

DIO

1 x 8-bit ***lated DI port by DB-9 connector
1 x 8-bit ***lated DO port by DB-9 connector
2KV ***lation

Power-in

RC300H-CS : 1 x 6-pin 5.0mm terminal block
RC300L-CS : 1 x 9-pin 5.0mm terminal block

背板输入/输出

USB

2 x USB 2.0 (type A)

显示

1 x HDMI
1 x DP++

音源

1 x Mic-in
1 x Line-out
by 3.5mm 3P Phone Jack

按键

1 x Power button
1 x Reset button

天线

7 x SMA type antenna holes for GNSS, WWAN/LTE MIMO, WLAN/ BT MIMO, 5G

SIM

3 x SIM sockets (external accessible with cover)

监视定时器

看门狗定时器

System Reset, Programmable via Software from 1 to 255 Seconds

安全性

信赖平台模块

TPM 2.0

电源

类型

RC300H-CS: 110VDC nominal power input (77VDC~137.5VDC power range)
RC300L-CS: 12/24VDC nominal power input (9VDC~36VDC power range)

端口

RC300H-CS : 1 x 6-pin 5.0mm terminal block
RC300L-CS : 1 x 9-pin 5.0mm terminal block

电池 (UPS)

Optional UPS battery kit for at least 5min operations at full loading max. 300W (will occupy two SSDs space), RC300H-CS only (RC300H-CS-UPS)

支持操作系统

微软

Windows 10 IoT Enterprise 64 Bit

Linux

Ubuntu 18.04

环境指标

运作温度

-25°C to 70°C with when CPU+GPU<100W, up to +85°C for 10min
-25°C to 55°C with when CPU+GPU<160W, up to +70°C for 10min
Turboboost is disabled and CPU&GPU will be throttling at high temperature.

储存温度

-40 to 85°C

相对湿度

10% to 90% (non-condensing)

机械结构

尺寸

340.5 x 132 x 223mm (3U height, excluding rubber foot)

结构

Metal + Aluminum

安装方式

Wall mount

重量

9.85 kg

安规认证

冲击测试

EN61373: 2010, Category 1 Class A & Class B

抗振动测试

EN61373: 2010, Category 1 Class B

认证

EMC: EN50121-3-2
Fire Proof: EN45545
Railway Regulation: EN50155 (Class S2: 10ms interruptions for RC300H-CS)
(Supply Change Over Class C1: at 0,6 Un during 100ms without interruptions)

装箱单

装箱单

· 1 RC300-CS system unit
· 1 Power connector
· 1 Mounting bracket
