| 产品特性：工控机 | 品牌：DFI | 型号：VCX700-MTH |
| 设备类型：工控电脑 |

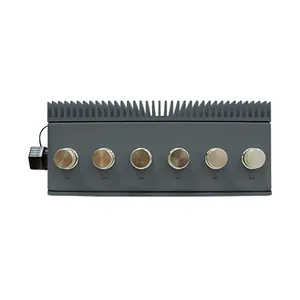

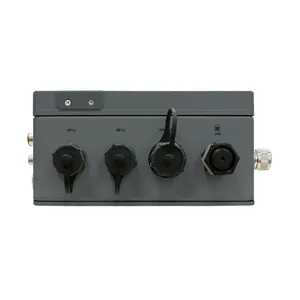

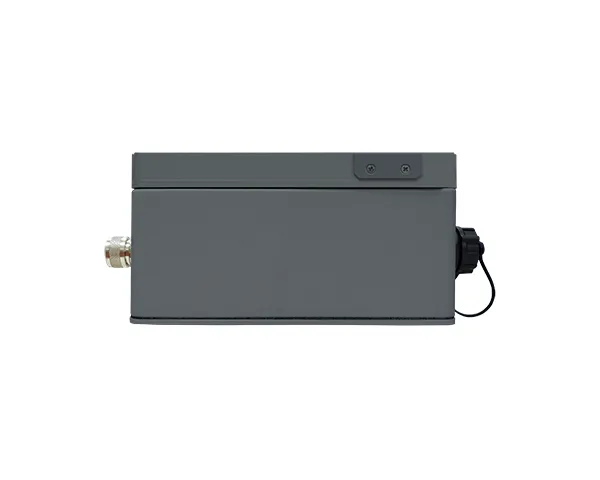

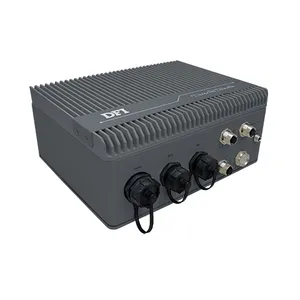

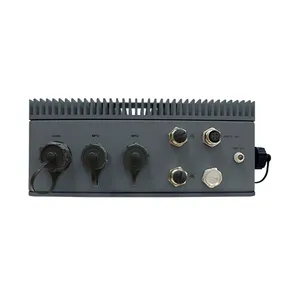

A ruggedized, IP67-rated, fanless in-vehicle system built for harsh environments.
Intel Core Ultra processor with LPDDR5-6400 soldered memory
3 M.2 sockets for 5G/LTE/WiFi/Storage modules
2 x CAN FD, 2x RS232 via IP67-rated combo connector
Build-in 9 axis sensor for driver detection within fleet management
Wide voltage: 9~36V vehicle power input with ACC/IGN function
Wide temperature up to -40°C ~ 70°C
系统
处理器
Intel® Core™ Ultra 7/5 Processors, TDP 15W
Intel® Core™ Ultra 7 155U, 12C, 12M Cache, 1.7GHz (4.8GHz)
Intel® Core™ Ultra 5 125U, 12C, 12M Cache, 1.3GHz (4.3GHz)
内存
Dual Channel LPDDR5/x 6400MHz memory down Up to 32GB (64GB per request)
BIOS
AMI SPI 256Mbit
显示
控制器
Intel® Arc™ Graphics
特性
OpenGL 4.6, Direct X 12.2, OpenCL 3.0
HW Decode: HEVC, VP9, AV1, AVC
HW Encode: HEVC, VP9,AV1, AVC
显示器
1 x HDMI 1.4b
HDMI: resolution up to 4096x2160@24Hz
储存
M.2 SSD (M Key)
256GB Available(128GB/512GB by project support)
扩充
界面
1 x M.2 3052 B key (PCIe x1 & USB3.0/2.0)(for LTE or 5G module, optional)
1 x M.2 2230 E Key (PCIe x1 & USB2.0)(for Wi-Fi module, optional)
以太网路
控制器
2 x Intel® i226IT (10/100/1000/2500Mbps)
LED
指示灯
1 x Power Status LED
侧面输入/输出
显示器
1 x HDMI
SIM
1 x SIM card slot
USB
2 x USB 3.2
上板输入/输出
天线连接器
6 x Antenna (for Wi-Fi, LTE, 5G)
底板输入/输出
USB
2 x USB 3.2
集合连接器
2 x RS232 and 2 x CAN FD
电源
1 x 9~36V DC-IN with ignition control
Vent
1 x Vent
以太网络/PoE
LAN1/LAN2 2.5GbE, M12 X-coded
监视定时器
看门狗定时器
System Reset, Programmable via Software from 1 to 255 Seconds
电源
类型
DC-in 9~36V with ignition control
端口
M12 D-code
支持操作系统
微软
Windows 10 IoT Enterprise 64-bit
Windows 11 IoT Enterprise LTSC 2024
Linux
Linux
环境指标
运作温度
-20 to 70°C
-40 to 70°C (By request)
储存温度
-40 to 85°C
相对湿度
5 to 95% RH (non-condensing)
机械结构
安装方式
Wall mount
尺寸 (宽 x 高 x 深)
239.24 x 194 x 101 mm
重量
3.62 kg
安规认证
冲击测试
Operation shock test: Half Sine Wave 15G, 11ms, 3 Shock Per Axis
抗振动测试
Operation Vibration test: MIL-STD-810G 514.6C-2, Figure 514.6C-2
认证
CE, FCC class A, ROHS
Construction
IP67 enclosure
装箱单
装箱单
· 1 VCX700-MTH system unit
· 1 COMBO cable (for COM & CAN BUS)
· 2 LAN cable
· 6 Dust cover (for antenna connector)
· 1 DC input cable
